RETRACTOR - REAR SEAT SAFETY BELT, CONVERTIBLE

Torx Bit, Safety Belt Bolt:

SPECIAL TOOL(S)

REMOVAL
1. Remove the rear seat cushion.
2. Remove the luggage compartment front lining board.

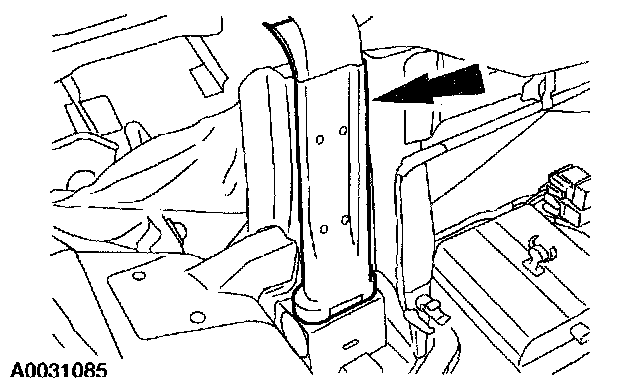

3. Release the safety belt guide.

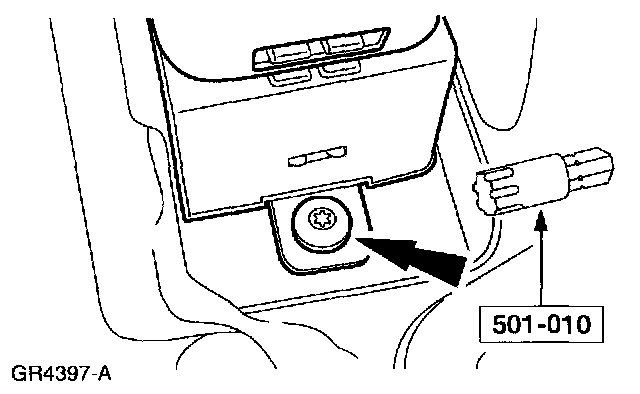

4. Using the special tool, remove the safety belt anchor bolt.

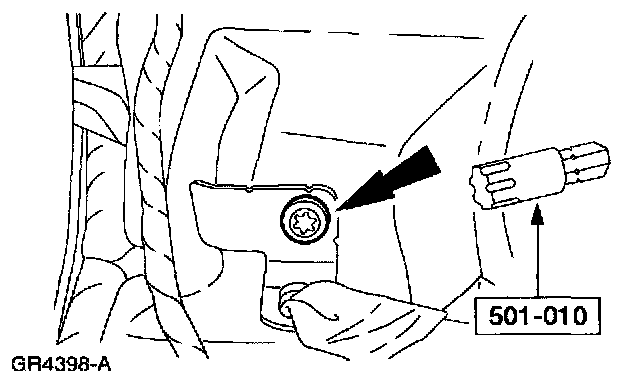

5. Using the special tool, remove the bolt and the rear safety belt retractor.

INSTALLATION

NOTE: Make sure the safety belt is not twisted when inserting it in the quarter trim panel.

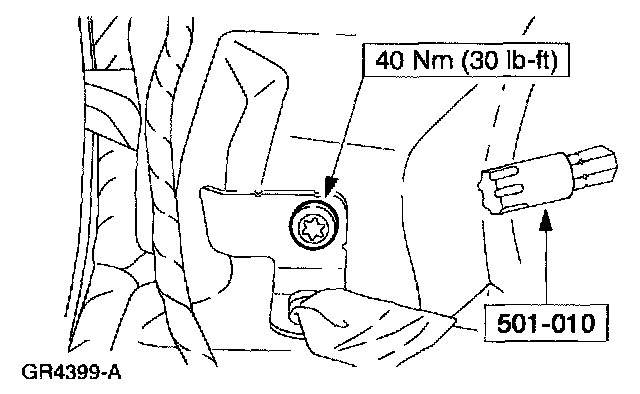

1. Using the special tool, install the bolt and the rear safety belt retractor.

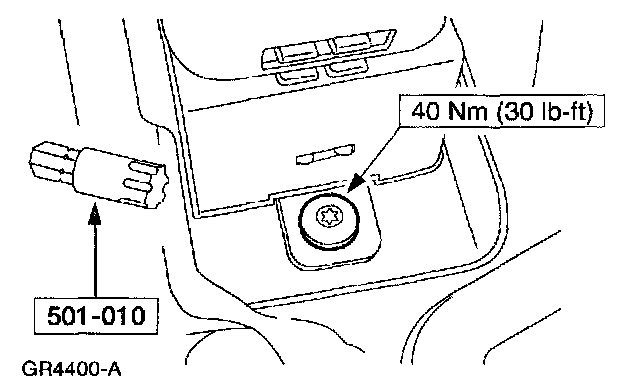

2. Using the special tool, install the safety belt anchor bolt.

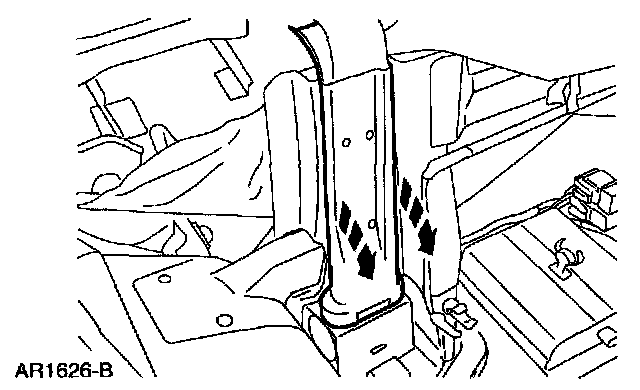

3. Install the safety belt guide.
4. Install the luggage compartment front lining board.
5. Install the rear seat cushion.

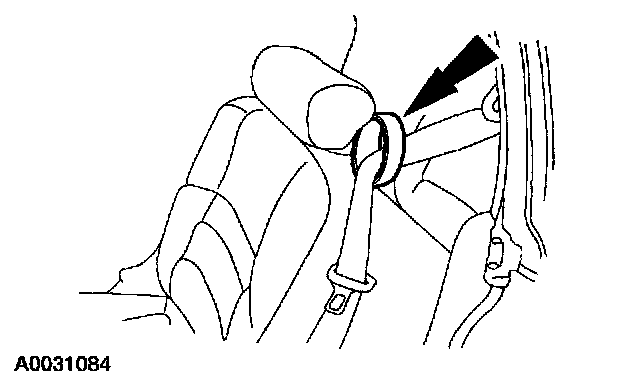

6. Make sure the shoulder belt passes through the belt holder on the top of the seatback.
7. Check the active restraint system for correct operation.
