Subwoofer Amplifier - Mach 1000

SUBWOOFER AMPLIFIER - MACH 1000

REMOVAL

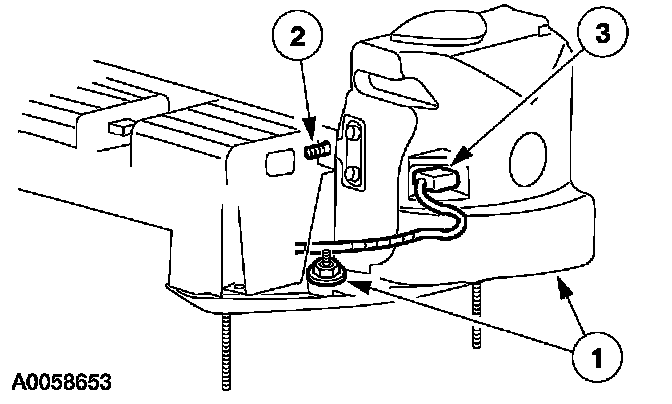

1. Remove the subwoofer assembly.
1 Remove the two attaching nuts.
2 Remove the screw.
3 Disconnect the electrical connectors.

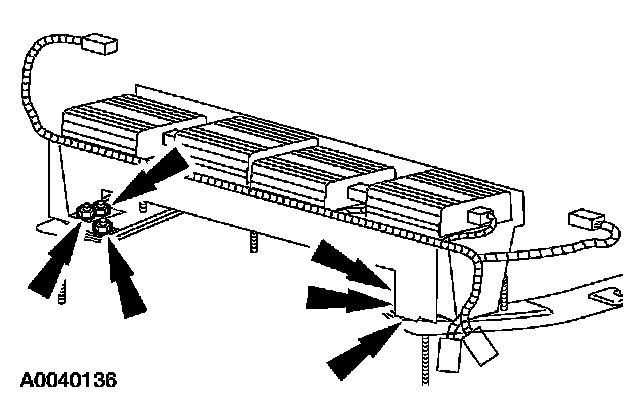

2. Remove the subwoofer amplifiers.
- Remove the bracket-to-body attaching nuts.
- Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
