Upper

DOOR SPEAKER - UPPER

REMOVAL
1. Remove the front door trim panels.

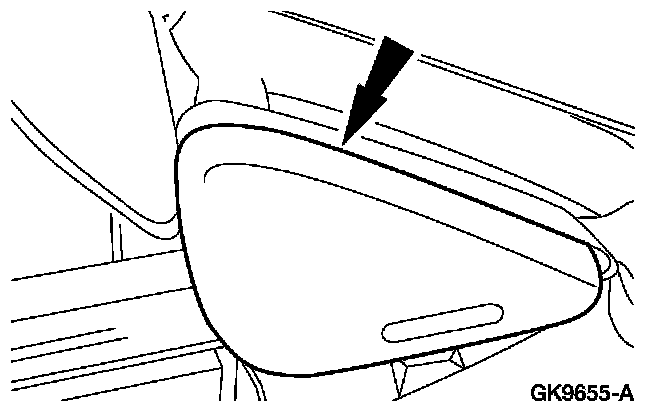

2. Remove the upper speaker access cover.

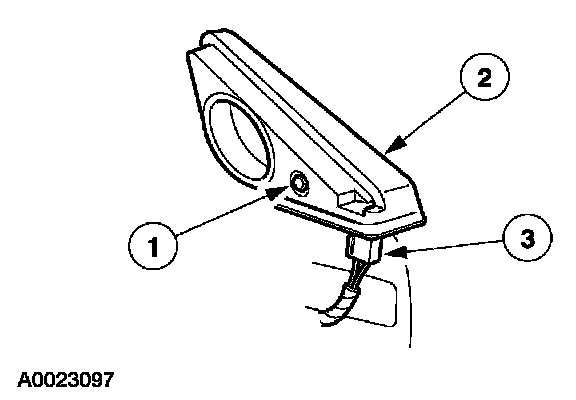

3. Remove the upper speaker housing.
1 Remove the screw.
2 Remove the upper speaker housing.
3 Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
