Package Tray Speaker - Coupe

SPEAKER - PACKAGE TRAY (COUPE)

REMOVAL
1. Remove the package tray trim panel.







2. Remove the speaker.

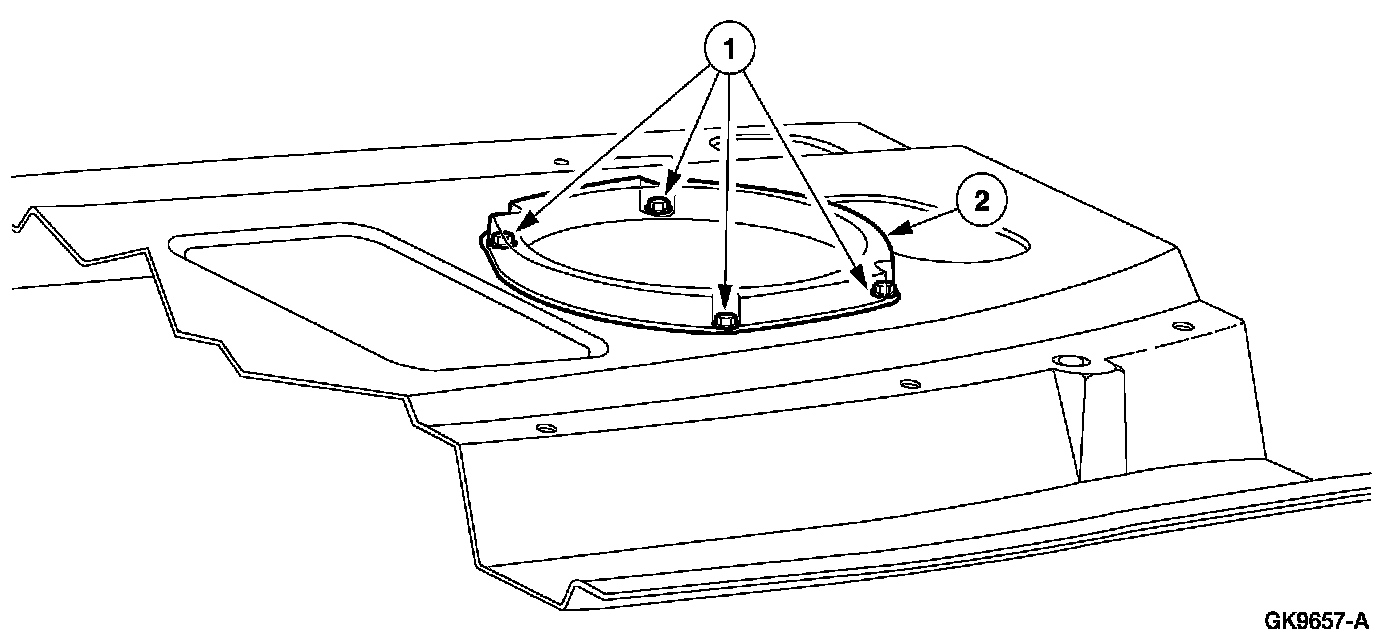

1 Remove the screws.
2 Remove the speaker.
- Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
