Front Bumper Cover / Fascia: Service and Repair

FRONT BUMPER COVER

Removal and Installation

NOTE: Mustang shown, GT and Cobra similar.

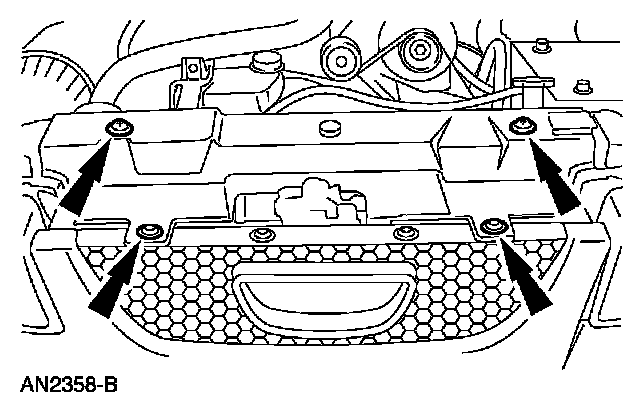

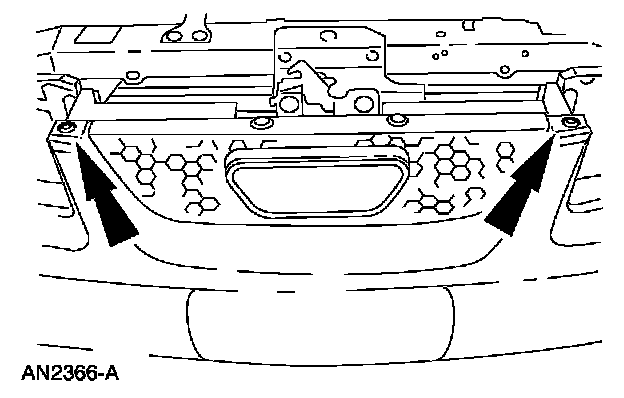

1. Remove the pin-type retainers and the radiator upper sight shield.

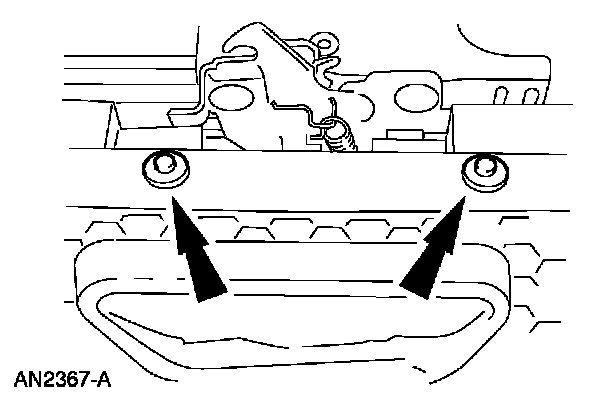

2. Remove the two pin-type retainers (one each side).

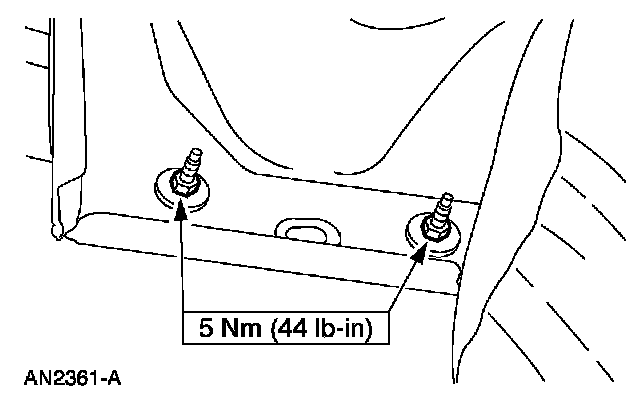

3. Remove the four front bumper cover nuts (two each side).

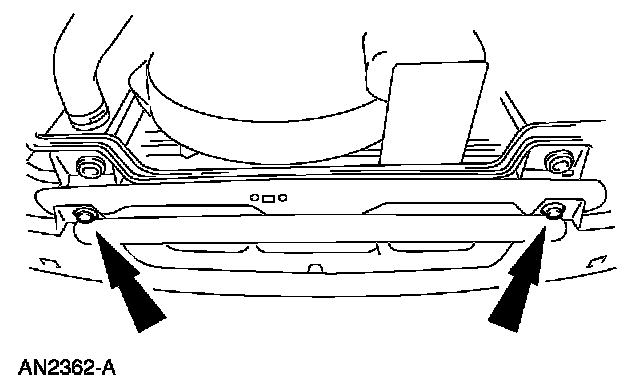

4. Remove the lower bumper cover pin-type retainers.

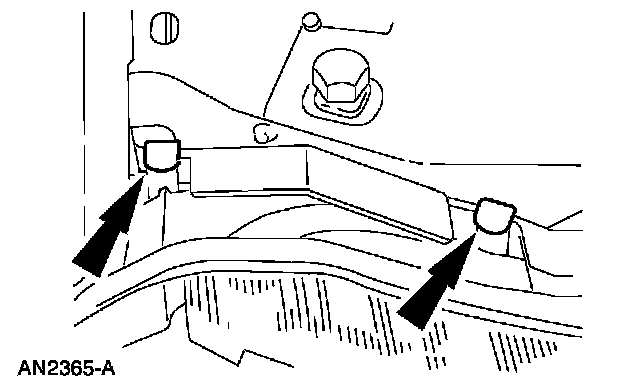

5. Remove the four headlamp mounting clips.

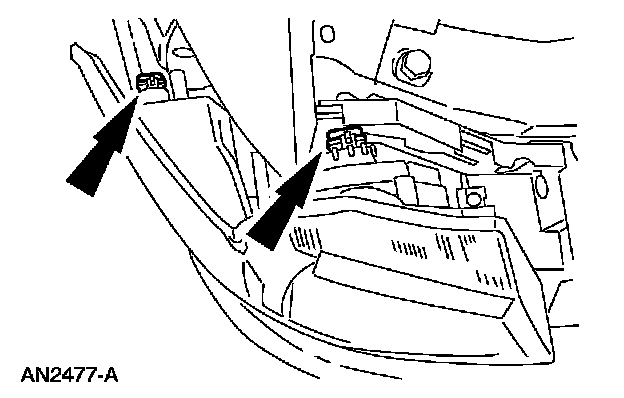

6. Disconnect the parking lamp and the headlamp electrical connectors (two each) and remove the two headlamps.

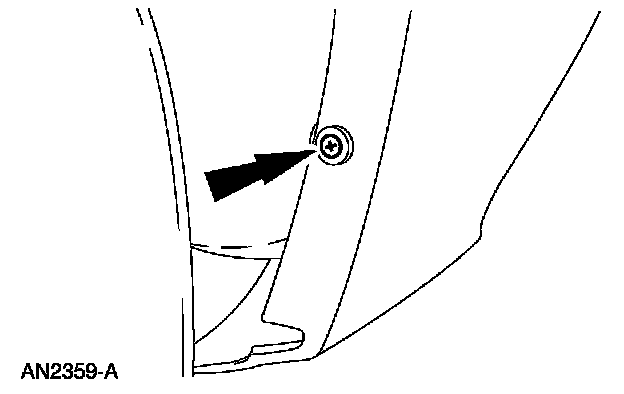

7. Remove the pin-type retainers.







8. If equipped, remove the pin-type retainers.
9. If equipped, disconnect the fog lamp electrical connectors.

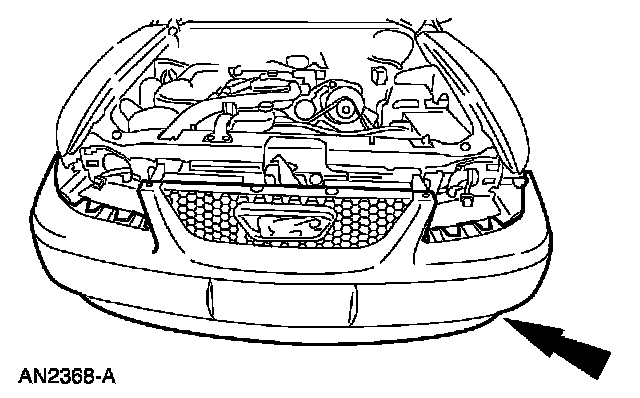

10. Lift up on the tabs and remove the front bumper cover.
11. To install, reverse the removal procedure.
