Spoiler: Service and Repair

REAR SPOILER

Removal and Installation
1. Open the luggage compartment lid.

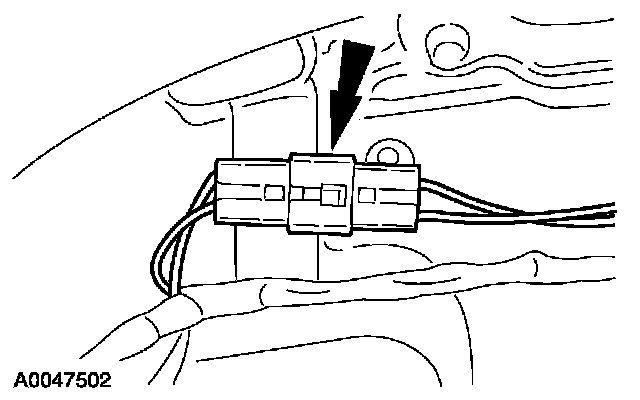

2. Disconnect the high mounted stoplamp electrical connector.

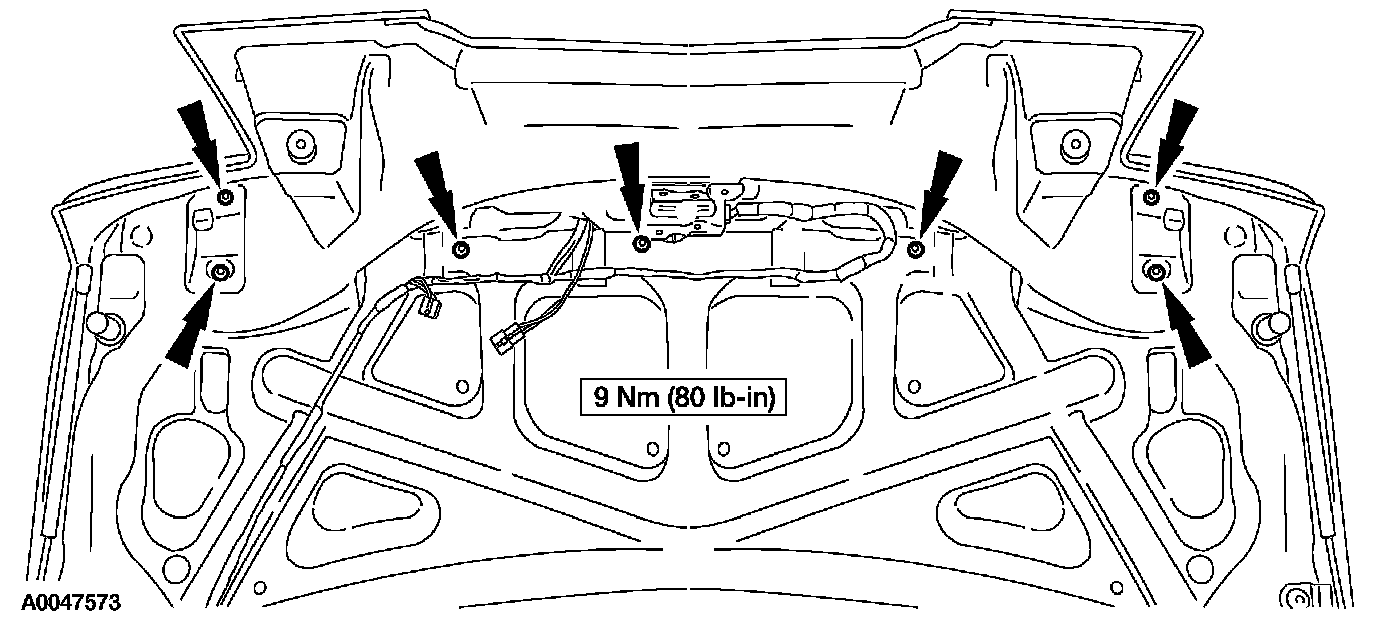

3. Remove the screws and the nuts.







4. CAUTION: Use care not damage the pin-type retainers and pin-type retainer seals during removal.

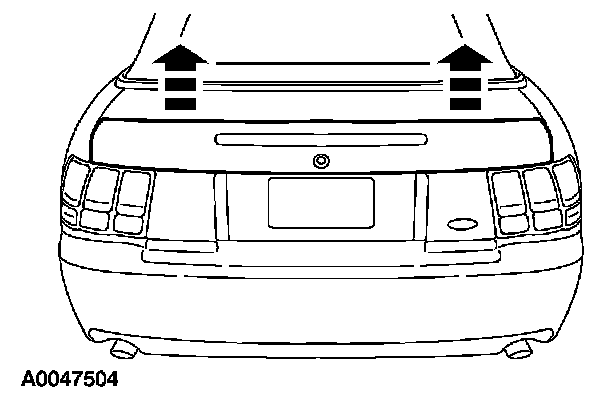

Release the spoiler from the two pin-type retainers in an upward motion.

5. To install, reverse the removal procedure.
- Inspect the pin-type retainer seals. Install new pin-type retainer seals if damaged.
