Mustang V8-4.6L DOHC VIN R
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
F
>>
Anti-Lock Brakes
Anti-Lock Brakes
PINPOINT TEST F: DTC C1145 (RF), C1155 (LF), C1165 (RR), C1175 (LR), ANTI-LOCK BRAKE SENSOR INPUT CIRCUIT FAILURE

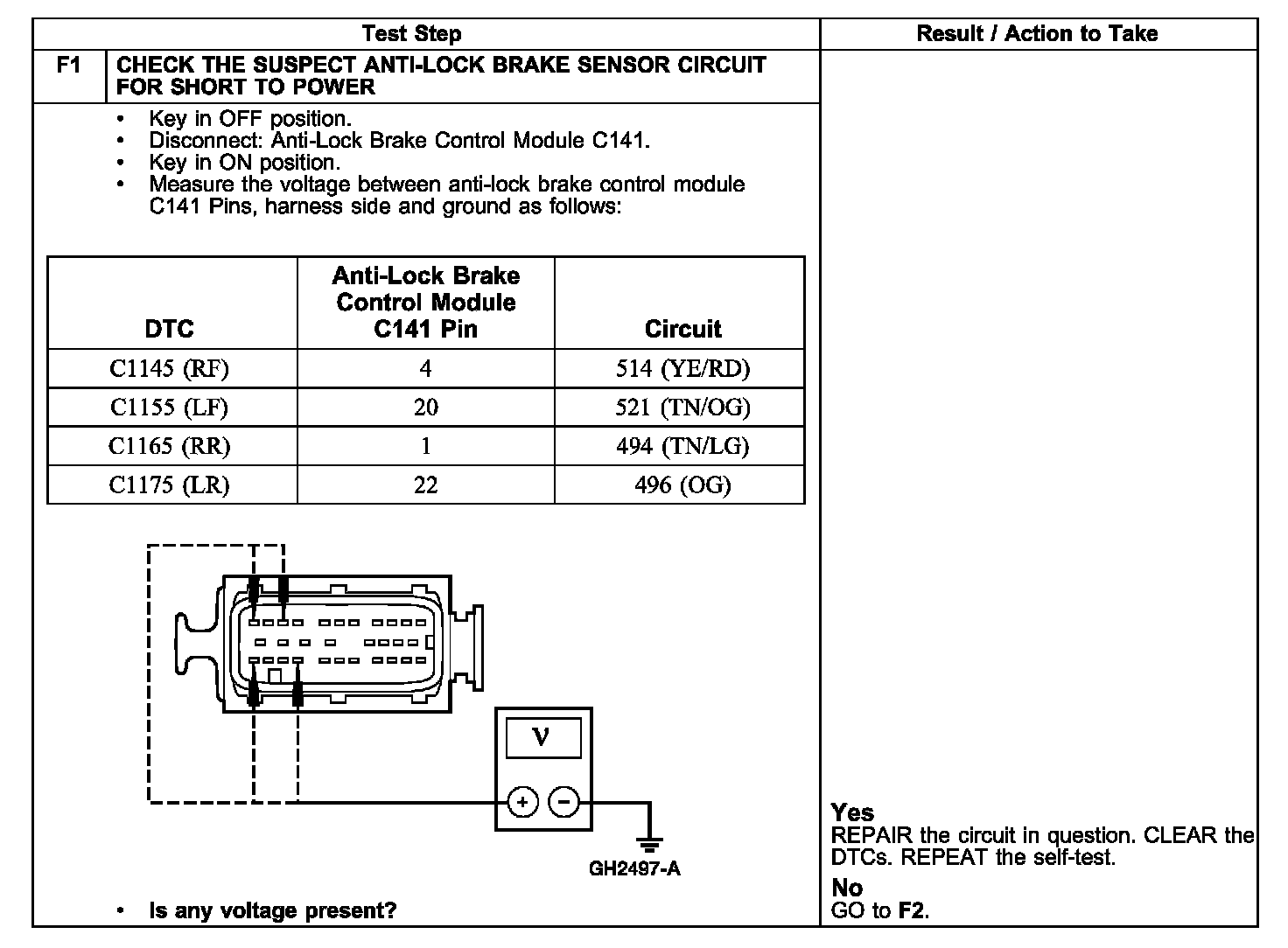

Test F1:

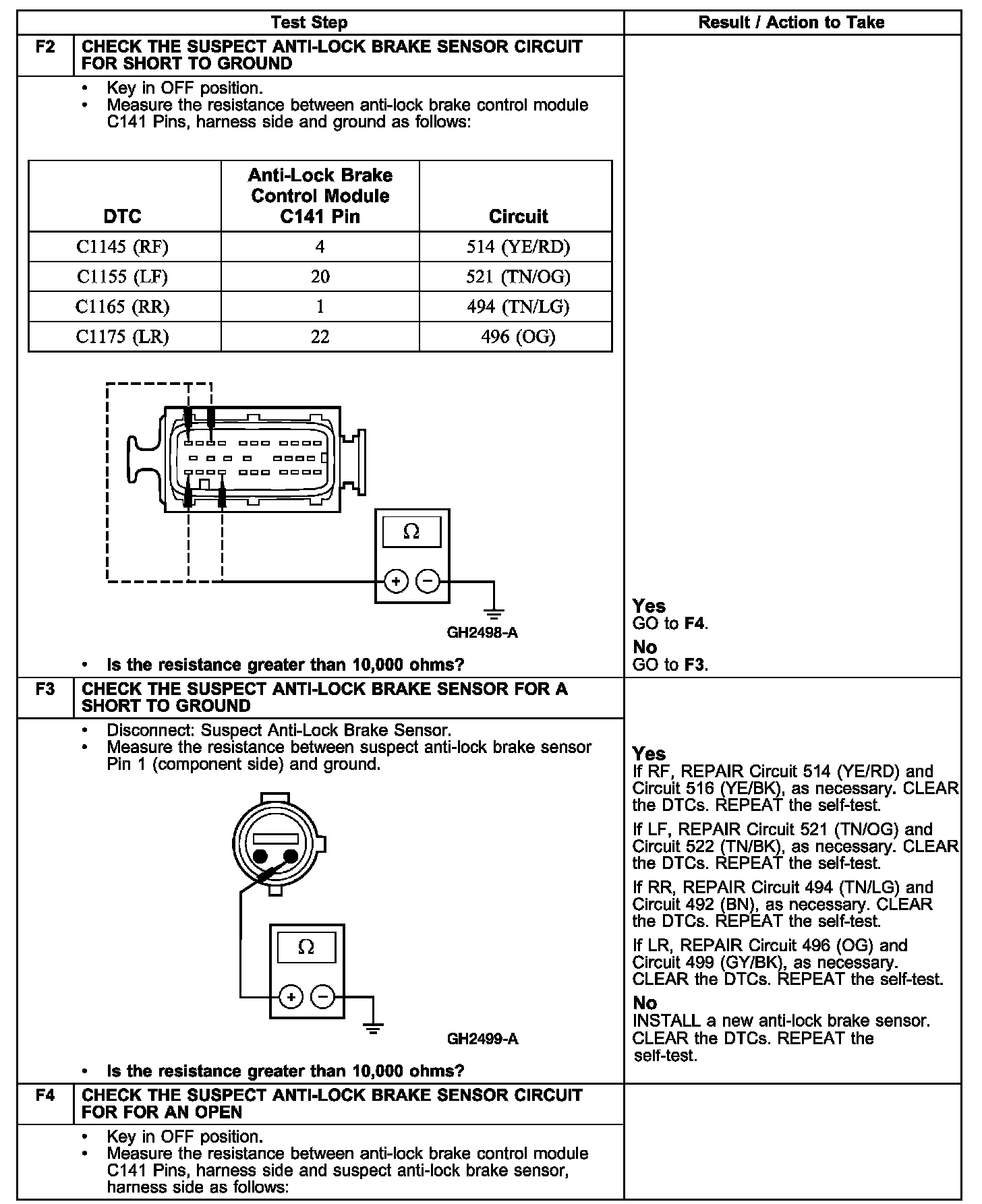

Test F2-F4:

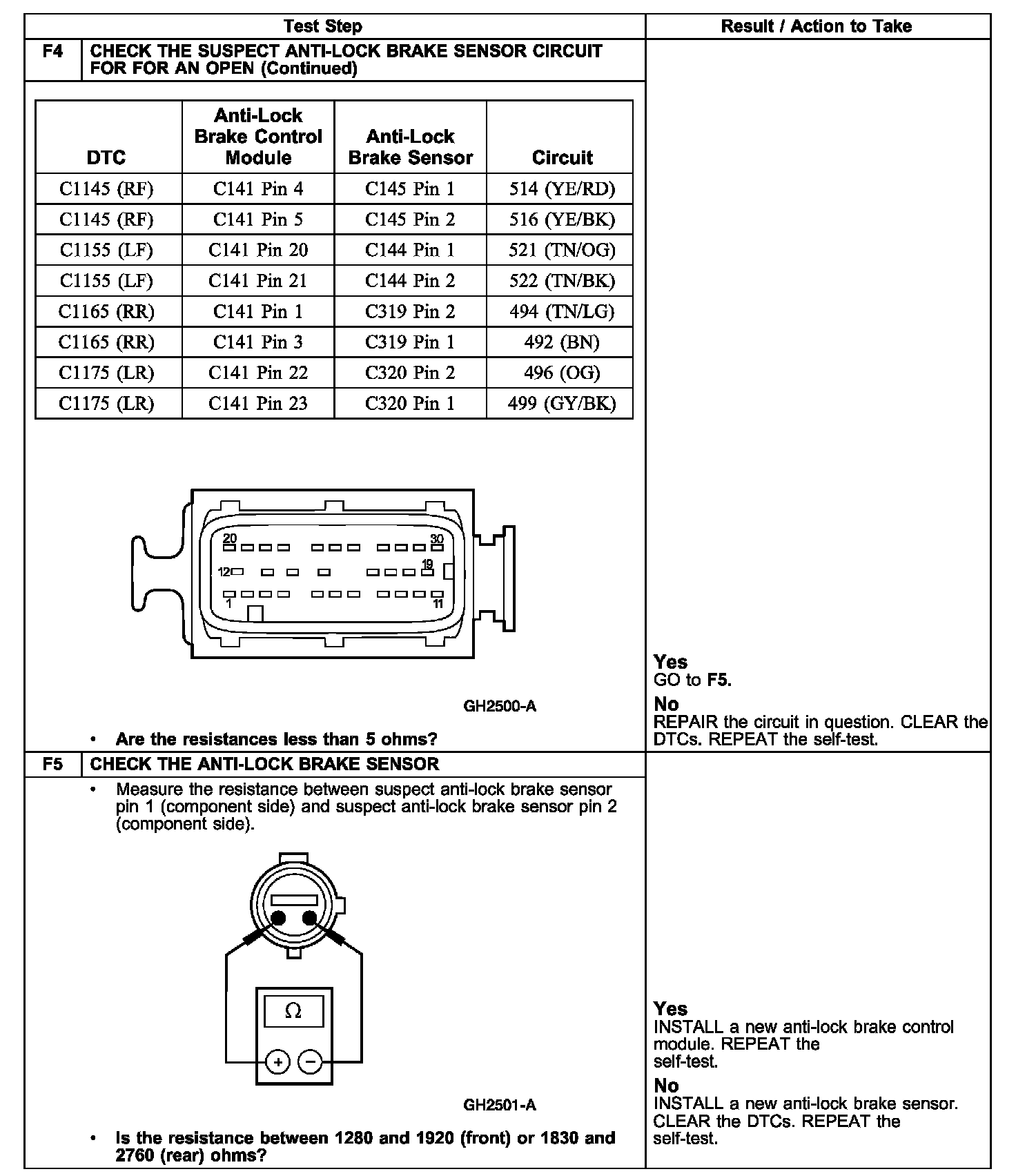

Test F4-F5:
