Harmonic Balancer - Crankshaft Pulley: Service and Repair

Crankshaft Pulley

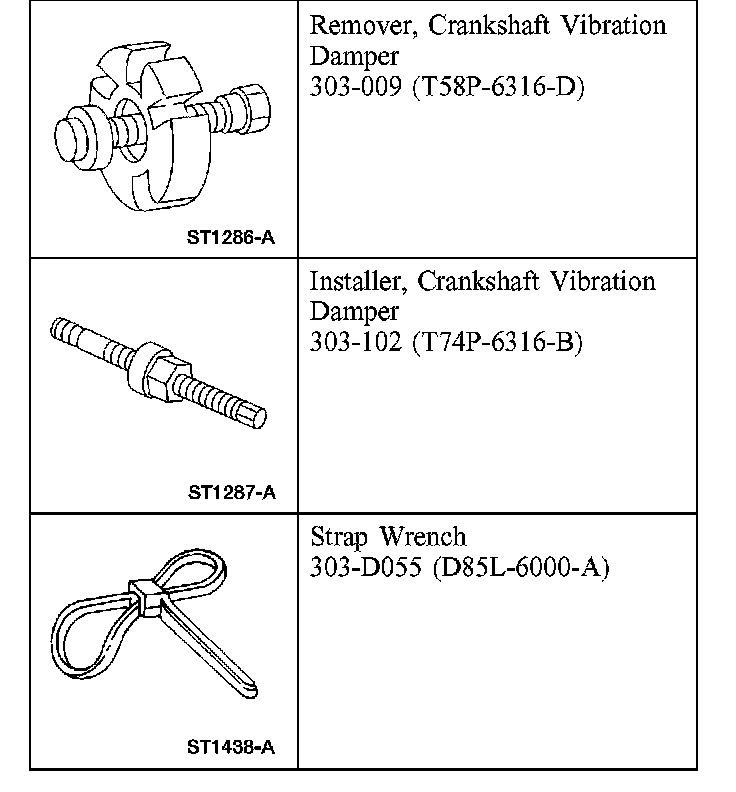

Special Tool(s)

Removal
1. Remove the accessory drive belt.
2. Raise and support the vehicle.

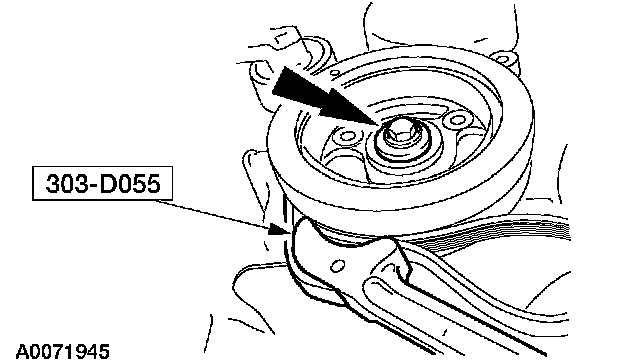

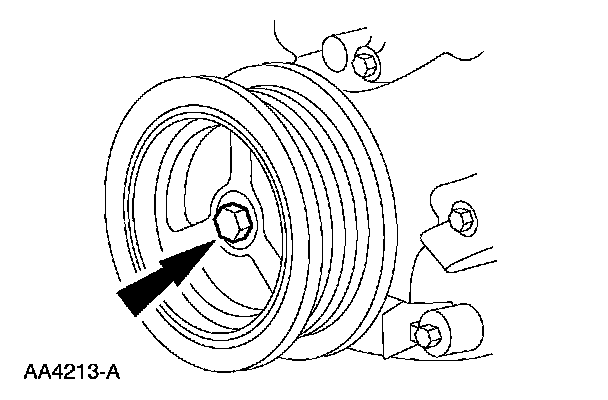

3. Remove the bolt.

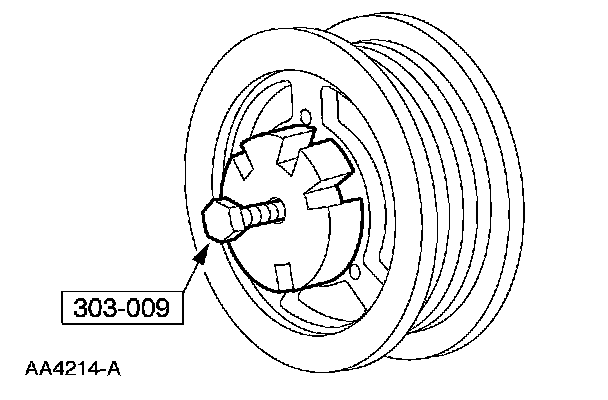

4. Using the special tool, remove the crankshaft pulley.

Installation





1. NOTE: The crankshaft pulley must be installed within four minutes after applying the silicone.

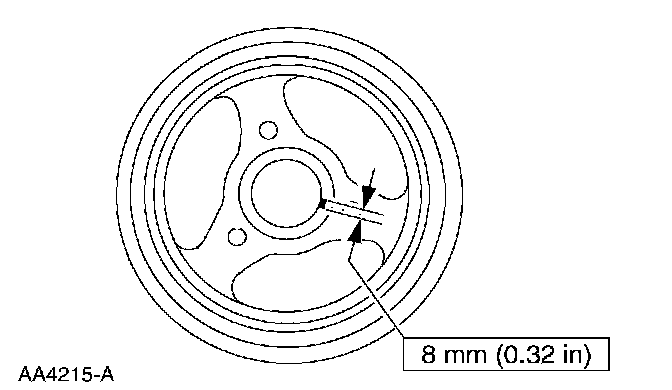

Apply silicone to the Woodruff key slot on the crankshaft pulley.
^ Use Silicone Gasket and Sealant F7AZ-19554-EA or equivalent meeting Ford specification WSE-M4G323-A4.

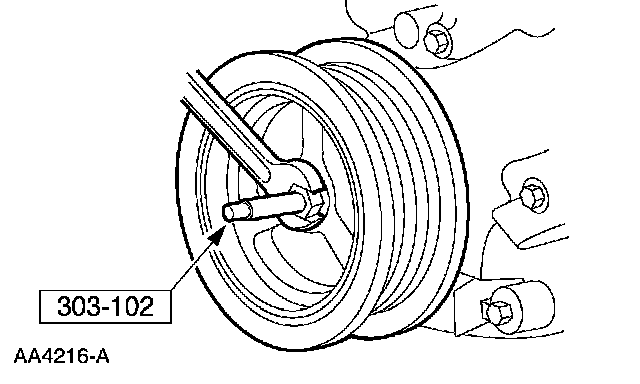

2. Using the special tool, install the crankshaft pulley.





3. Using the special tool, install the bolt and washer. Tighten the bolt in four stages.
^ Stage 1: Tighten the bolt to 90 Nm (66 ft. lbs.).
^ Stage 2: Loosen the bolt one full turn.
^ Stage 3: Tighten the bolt to 50 Nm (37 ft. lbs.).
^ Stage 4: Tighten the bolt an additional 90 degrees.
4. Lower the vehicle.
5. Install the accessory drive belt.
