Engine Mount: Service and Repair

Engine Mount

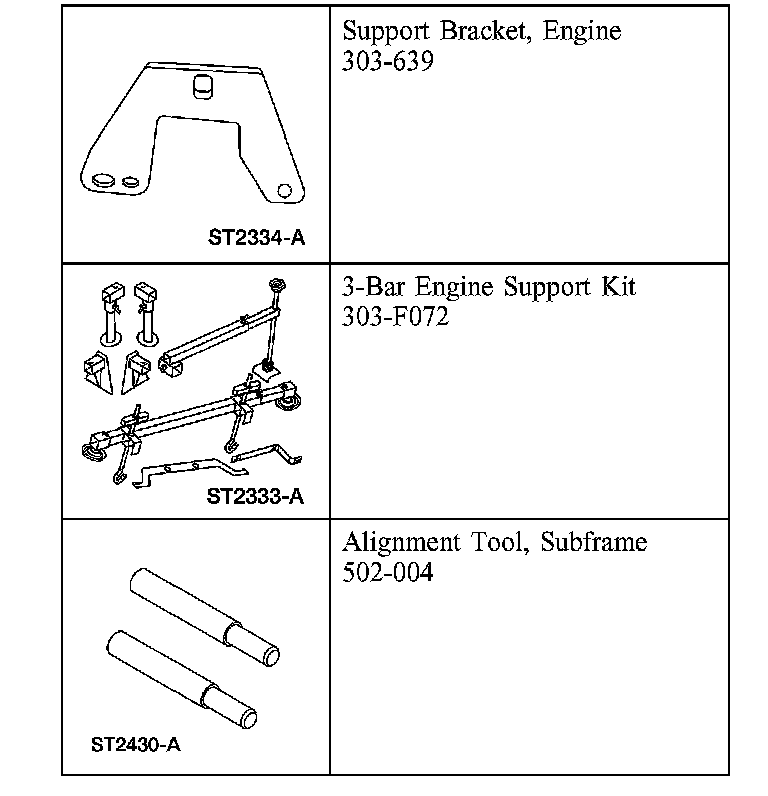

Special Tool(s)

Removal

Both mounts
1. Disconnect the battery ground cable.
2. Remove the coolant bypass tube.

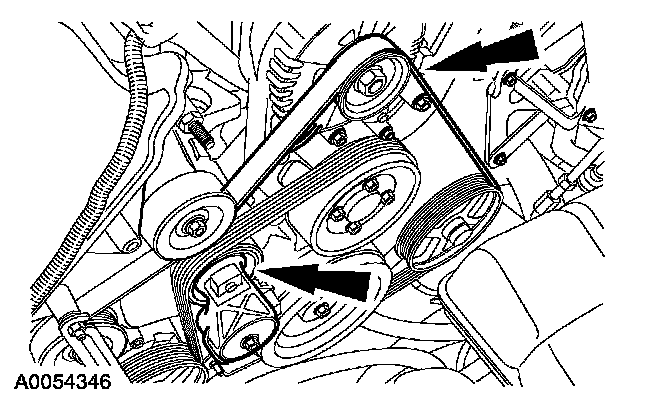

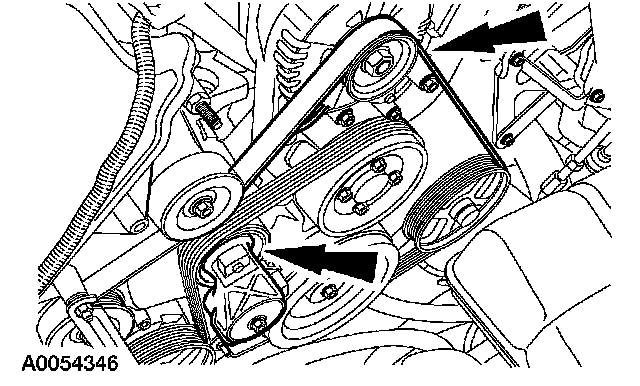

3. Rotate the drive belt tensioner clockwise and detach the drive belt from the generator pulley.

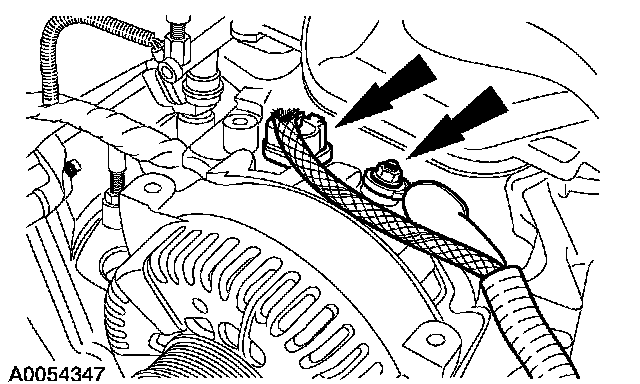

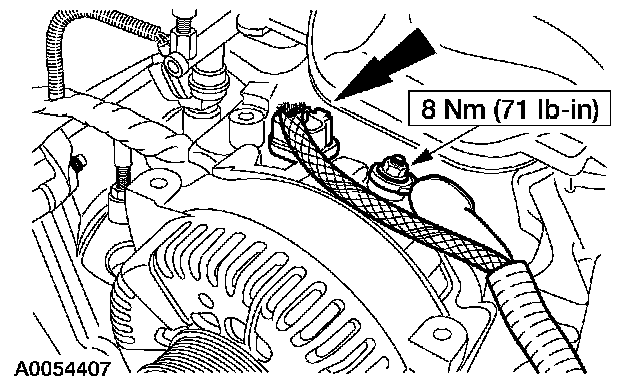

4. Disconnect the generator electrical connections.

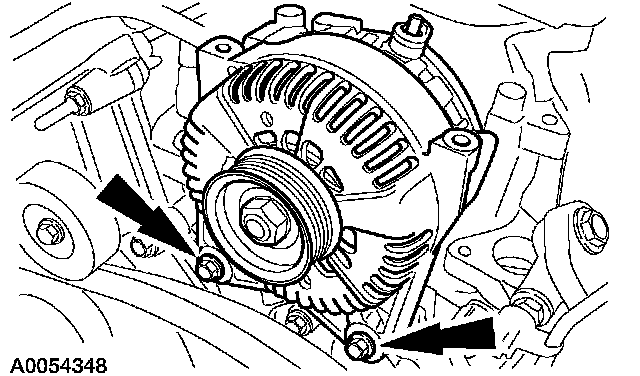

5. Remove the bolts and the generator.

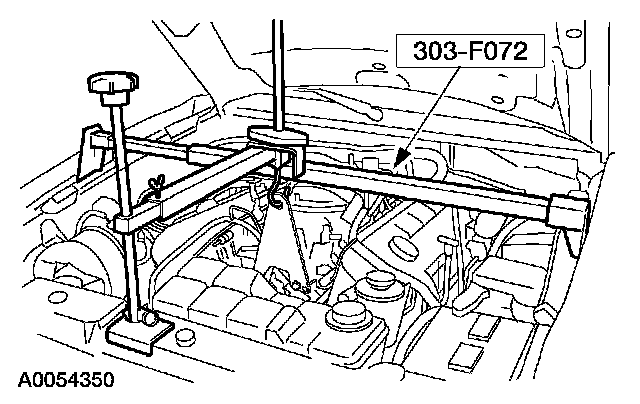

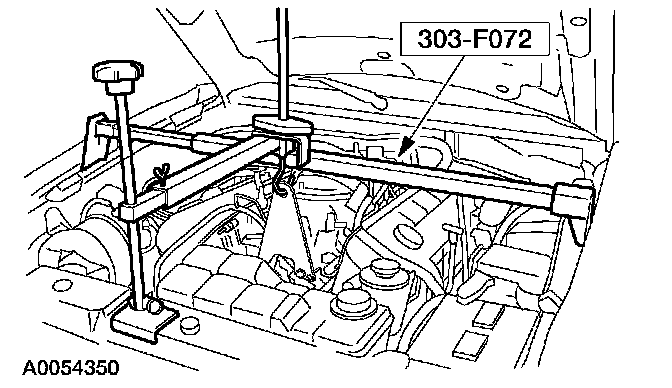

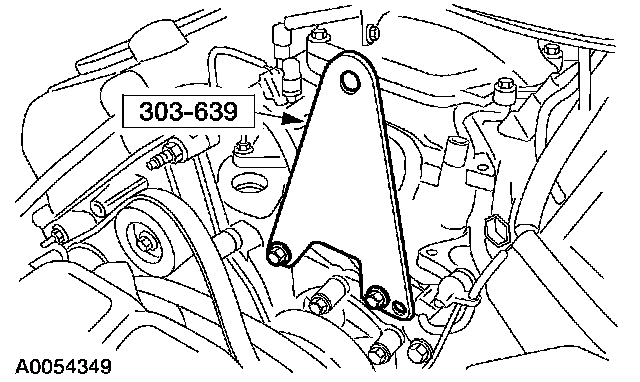

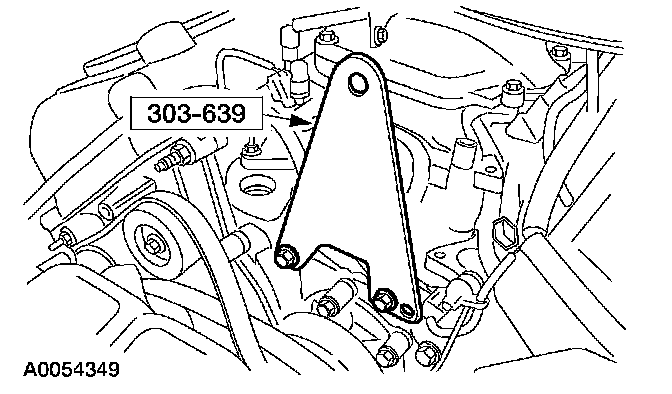

6. Install the special tool.





7. Using the special tool, support the engine.
8. Remove the front springs.





9. NOTE: RH shown, LH similar.

Remove the six splash-shield pushpins.

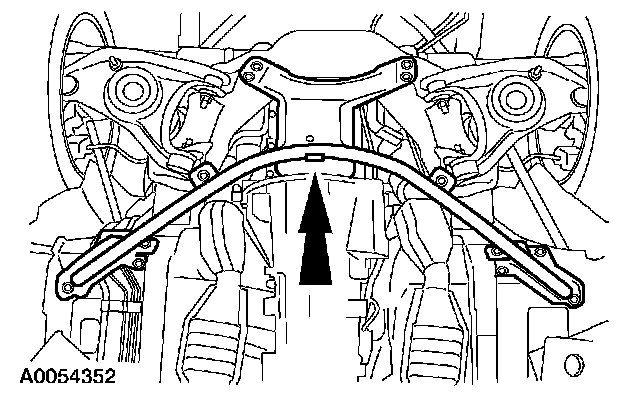

10. Remove the 13 bolts and the cross-brace support.





11. NOTE: RH shown, LH similar. Remove the two engine mount nuts.

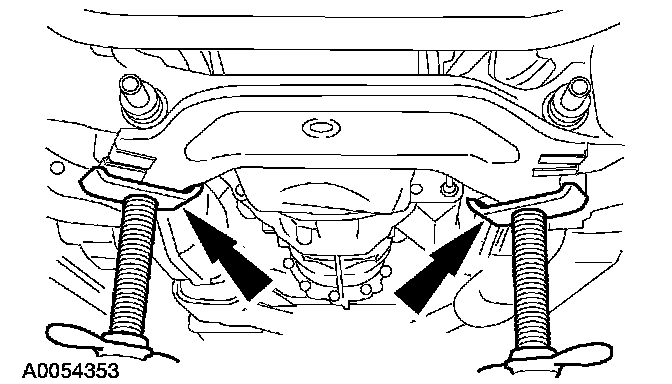

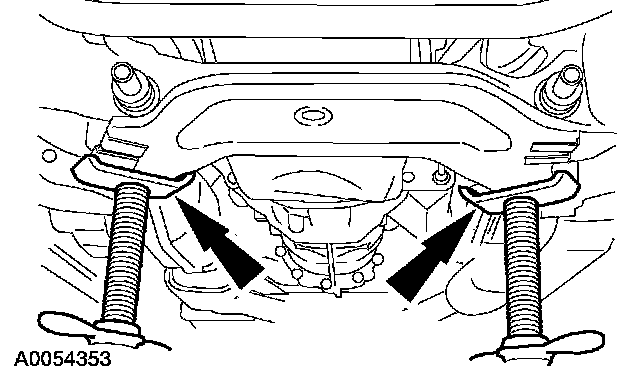

12. Using two jackstands, support the subframe.

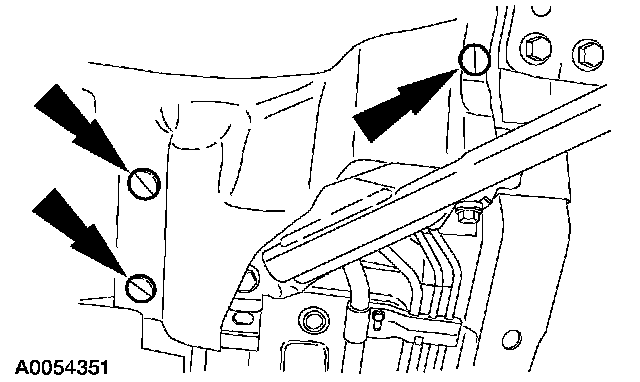

13. NOTE: Mark the bolts and the crossmember location for assembly reference.

NOTE: RH shown, LH similar.

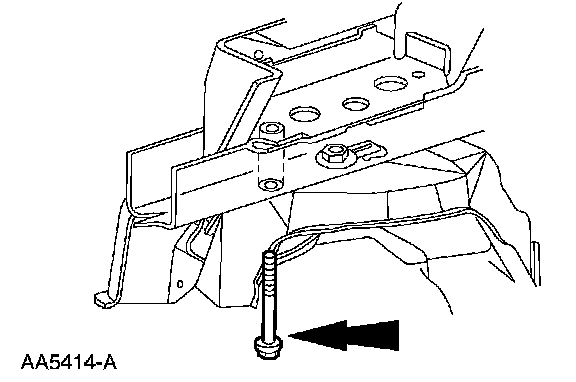

Remove the four bolts.

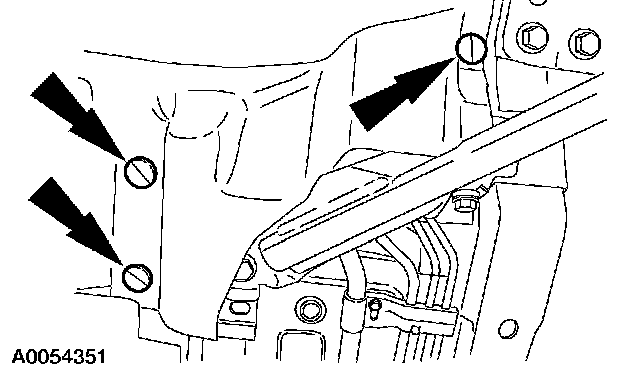

14. NOTE: RH shown, LH similar.

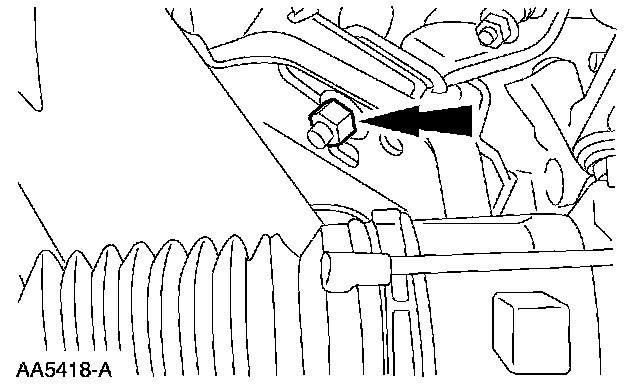

Remove the four bolts.
15. Using the jackstands, lower the front subframe.





RH mount
16. Remove the nut and detach the wiring harness.

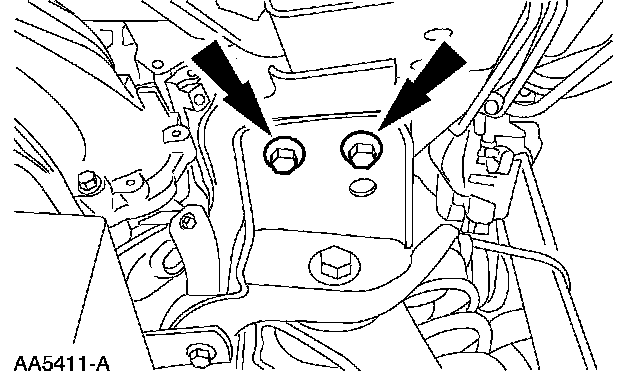

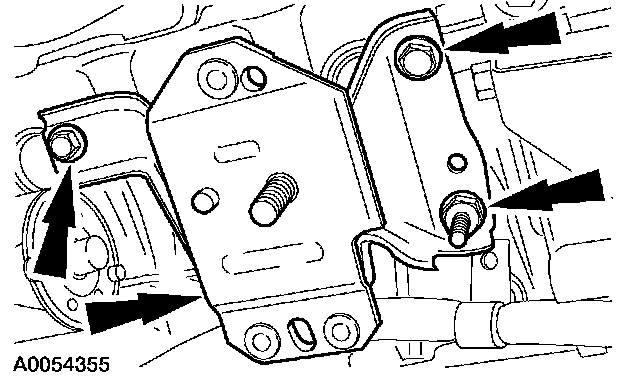

17. Remove the bolts, the stud bolt and the engine mount.





LH mount

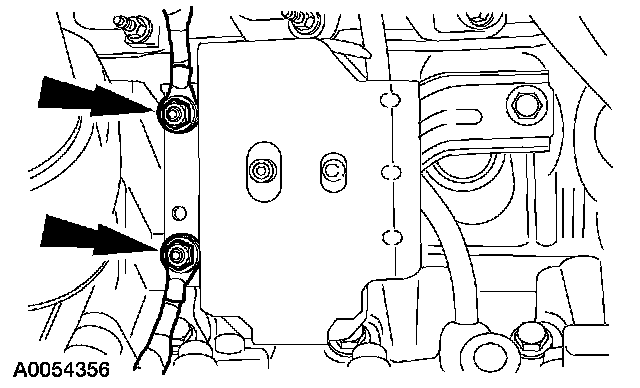

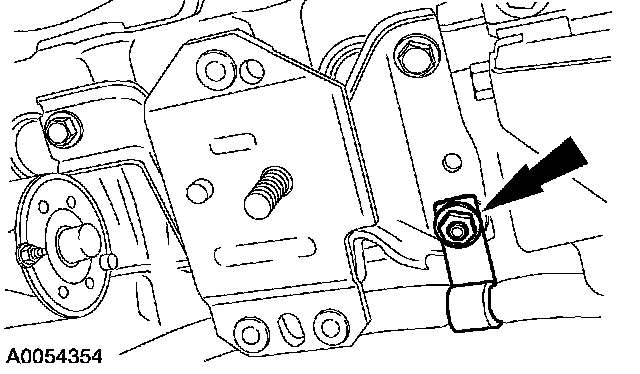

18. Remove the nuts and detach the ground cables.

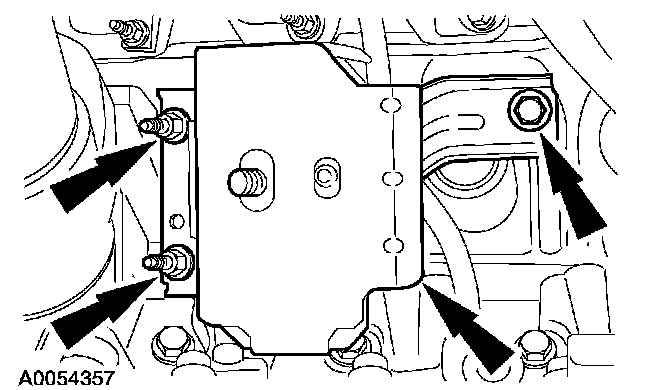

19. Remove the bolt, the stud bolts and the engine mount.

Installation





LH mount

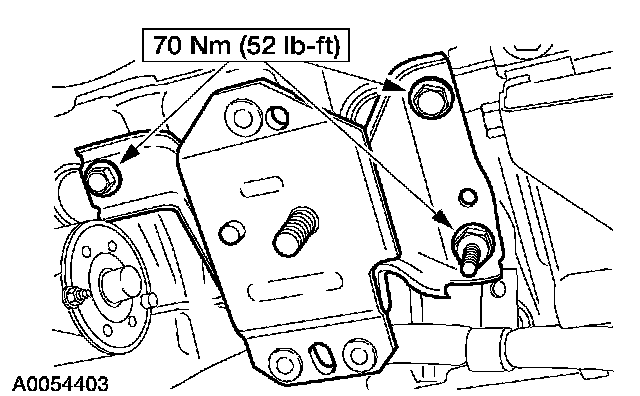

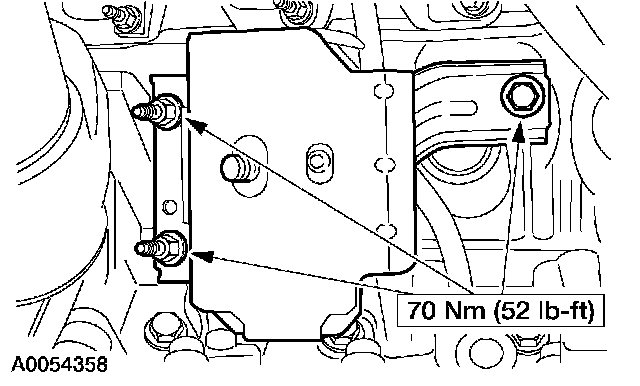

1. Position the engine mount and install the bolt and stud bolts.

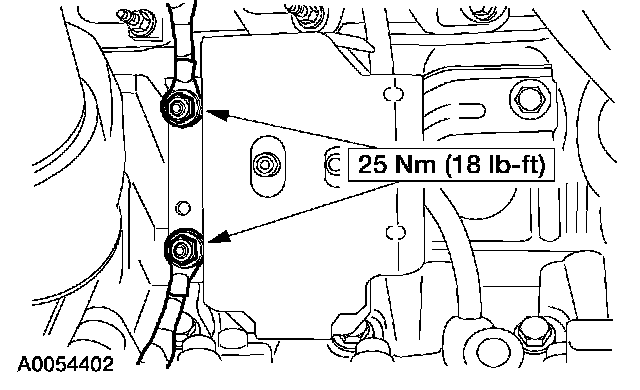

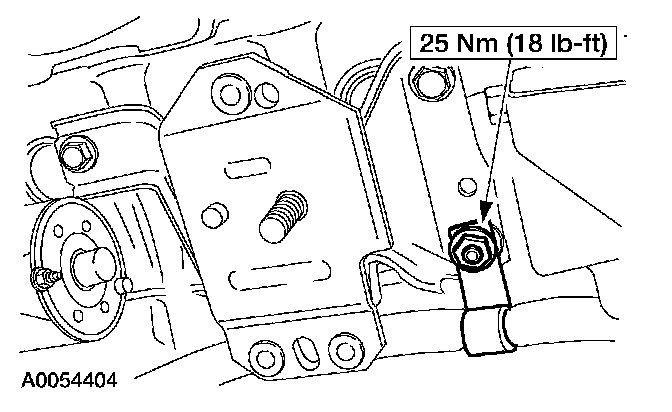

2. Attach the ground cables and install the nuts.





RH mount
3. Position the engine mount and install the bolts and stud bolt.





4. Attach the wiring harness and install the nut.

Both mounts

5. Using the jackstands, raise the subframe into position.





6. NOTE: RH shown, LH similar.

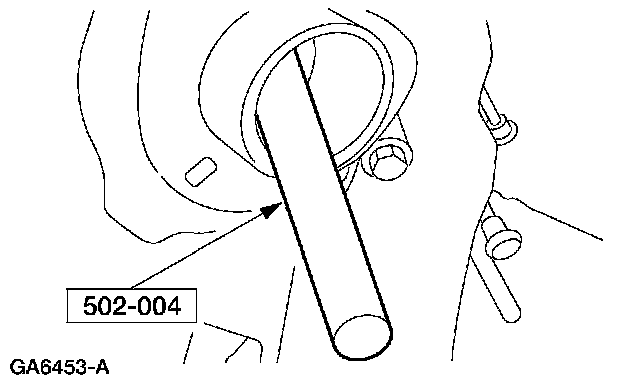

Using the special tool, align the subframe.





7. NOTE: RH shown, LH similar.

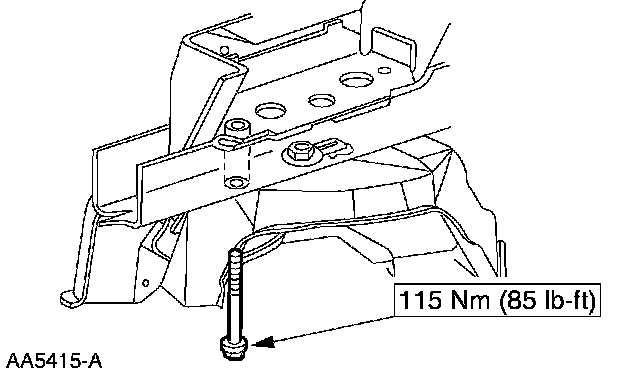

Install the four bolts.





8. NOTE: RH shown, LH similar.

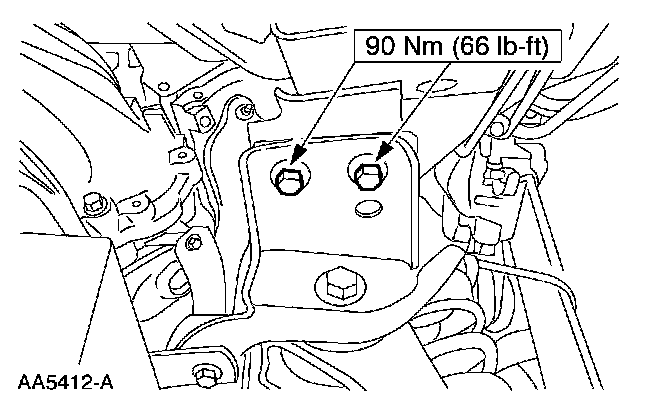

Install the four bolts.





9. Remove the jackstands.





10. NOTE: RH shown, LH similar.

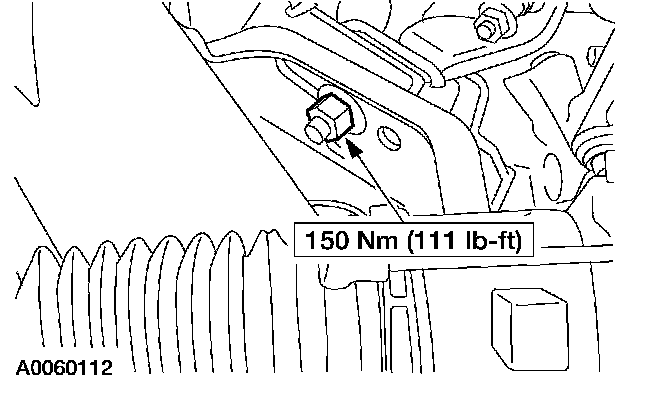

Install the two engine mount nuts.

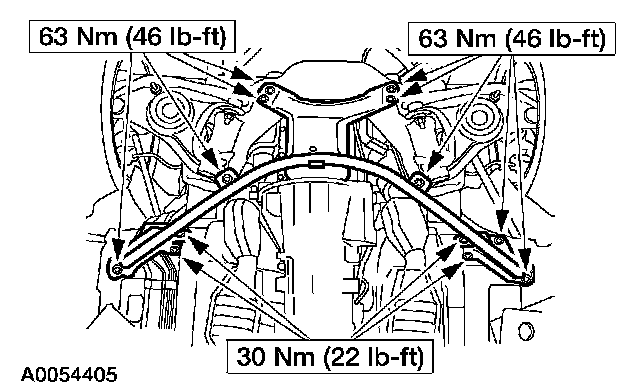

11. Position the cross-brace support and install the 13 bolts.





12. NOTE: RH shown, LH similar

Install the six splash-shield pushpins.
13. Install the front springs.





14. Remove the special tool.





15. Remove the special tool.

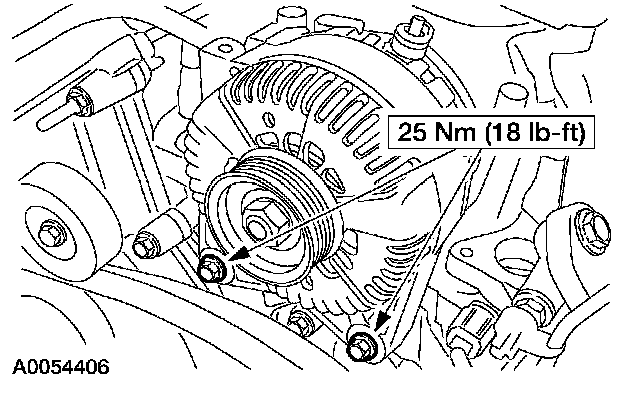

16. Position the generator and install the bolts.





17. Connect the generator electrical connections.





18. Rotate the drive belt tensioner clockwise and attach the drive belt to the generator pulley.
^ Make sure the drive belt is routed correctly and is aligned correctly installed on each pulley.
19. Connect the battery ground cable.
20. Install the coolant bypass tube.
