Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Oil Seal

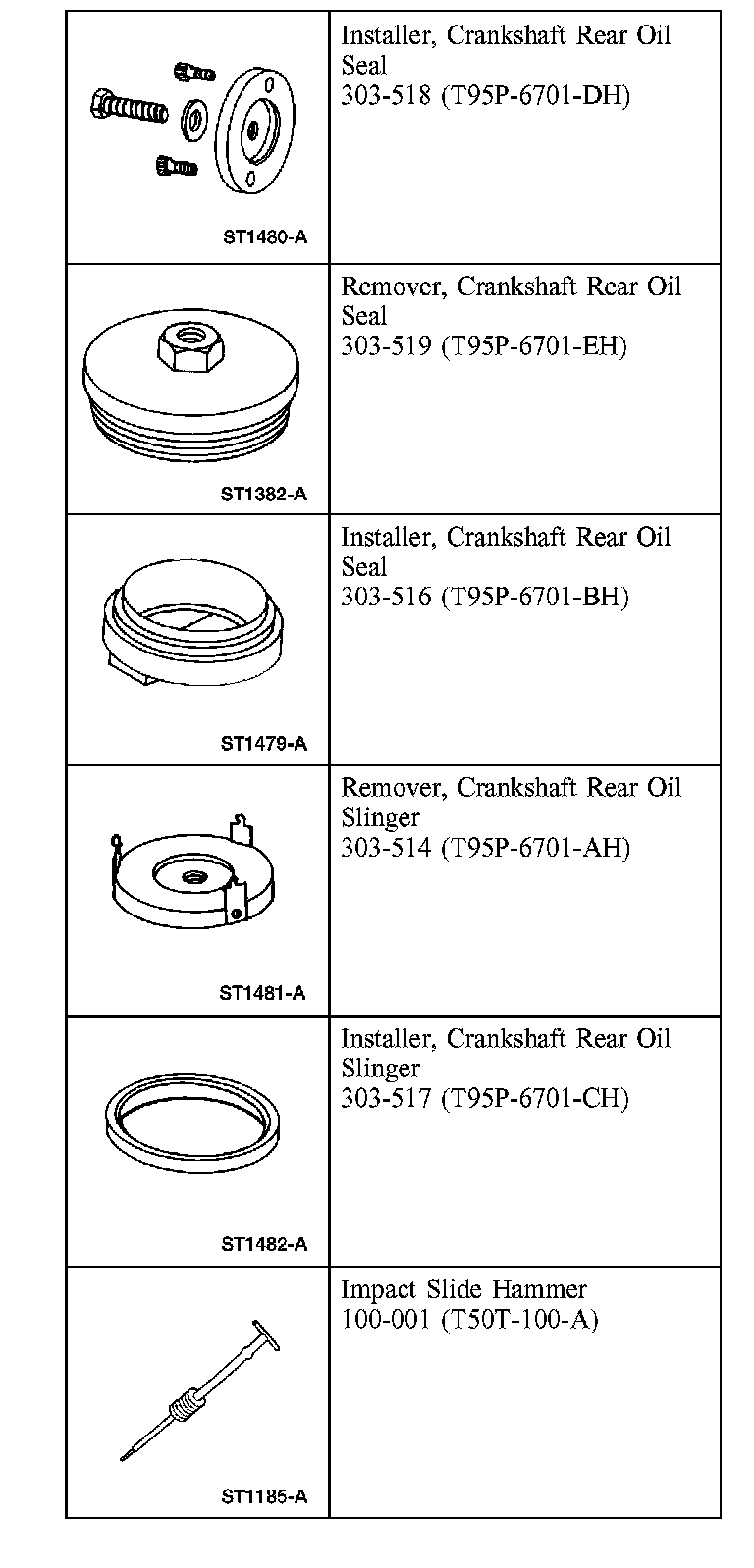

Special Tool(s)

Removal

Automatic transmission vehicles
1. Remove the flexplate.
Manual transmission vehicles
2. Remove the flywheel.





All vehicles

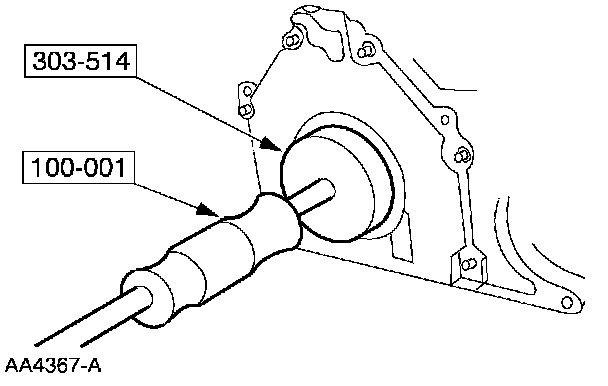

3. Using the special tools, remove the crankshaft oil slinger.

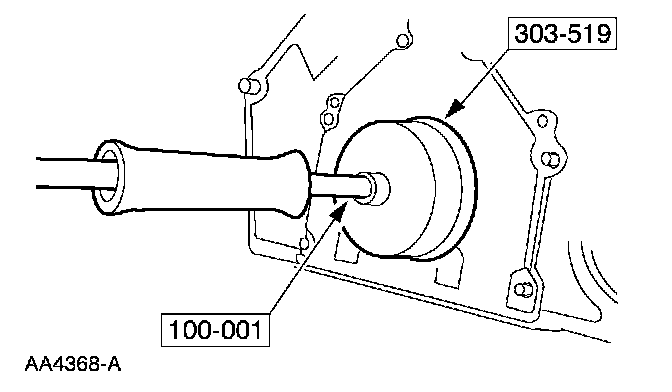

4. Using the special tools, remove the crankshaft rear oil seal.

Installation





All vehicles

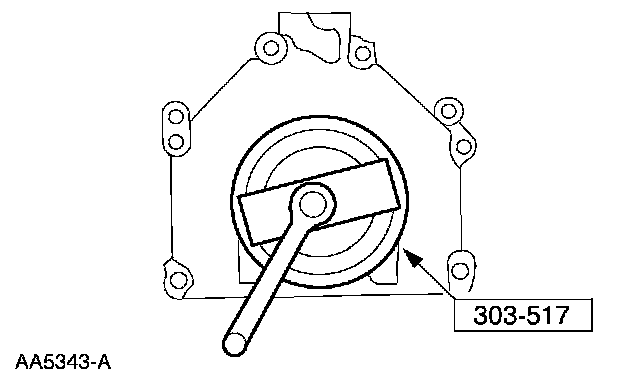

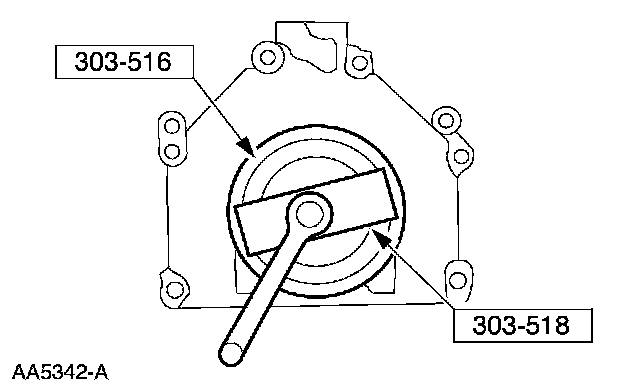

1. Using the special tools, install the crankshaft rear oil seal.
^ Lubricate the oil seal using clean engine oil.





2. Using the special tool, install the crankshaft oil slinger.

Manual transmission vehicles
3. Install the flywheel.
Automatic transmission vehicles
4. Install the flexplate.
