Removal

Engine Front Cover

Removal

All vehicles
1. Remove the air intake scoop.





2. Remove the air intake scoop bracket nut at the throttle body.

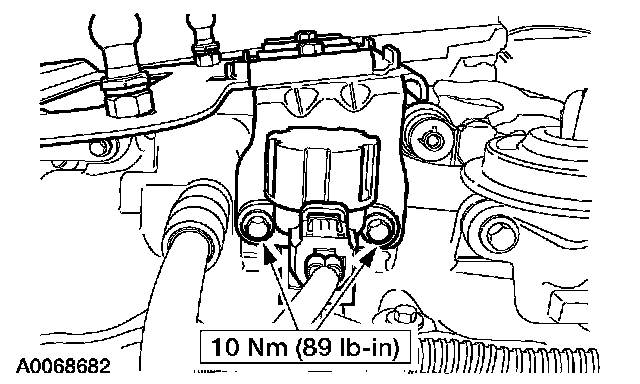

3. Remove the exhaust gas recirculation (EGR) vacuum regulator solenoid bolts and position the EGR vacuum regulator solenoid aside.

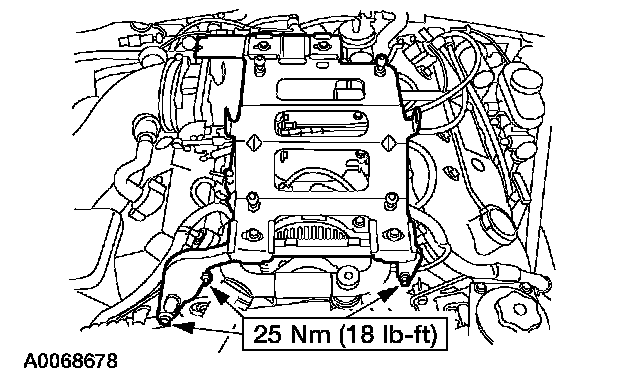

4. Remove the air intake scoop bracket nuts and the air intake scoop bracket bolt and remove the air intake scoop bracket from the engine.
5. Remove the RH valve cover.
6. Remove the Hydro-Boost brake booster.





Manual transmission vehicles

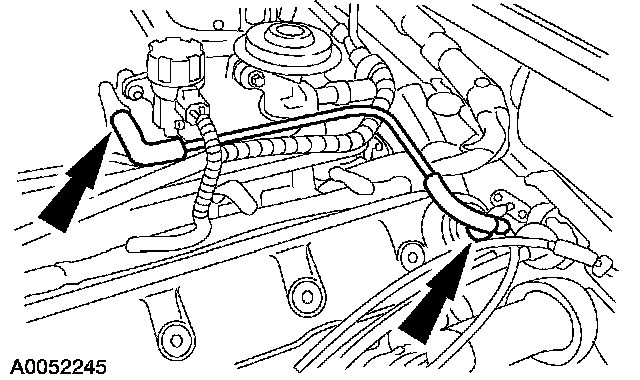

7. Remove the two clutch release cable retaining screws.





All vehicles

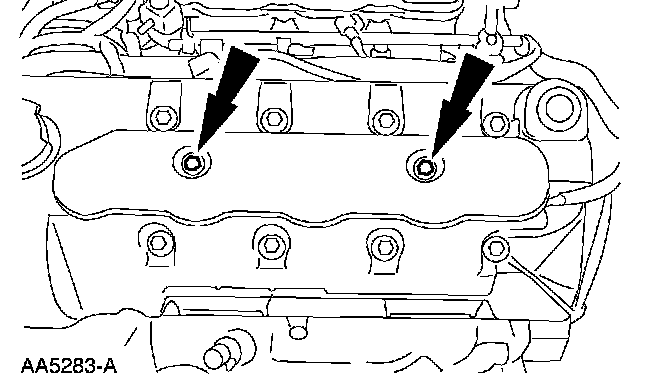

8. Remove the LH ignition coil cover bolts and the cover.

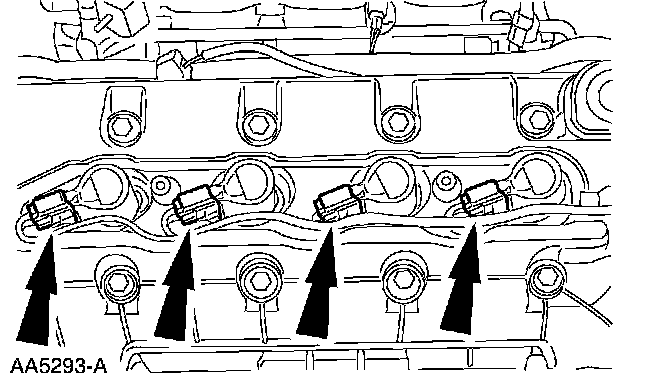

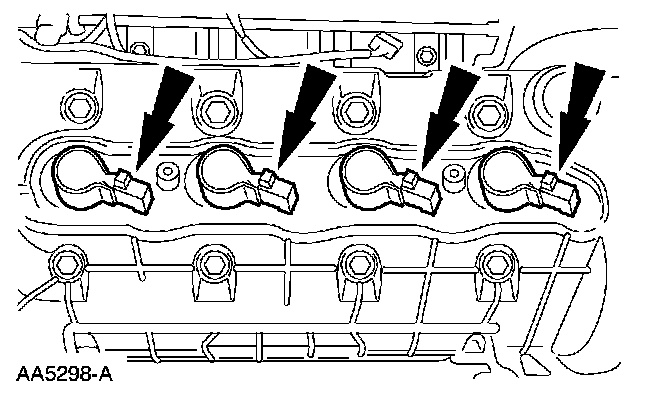

9. Disconnect the ignition coil electrical connectors.





10. Remove the ignition coils.

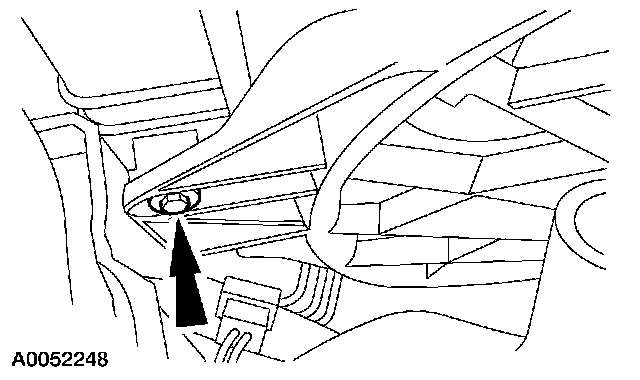

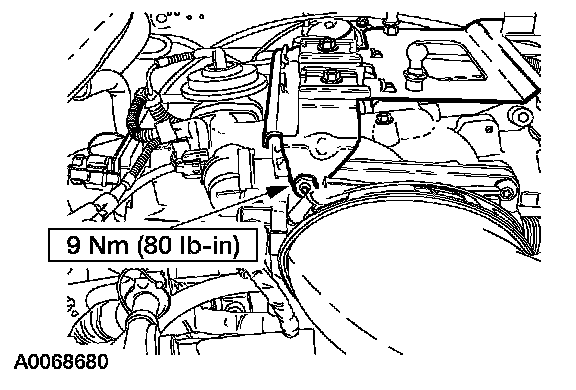

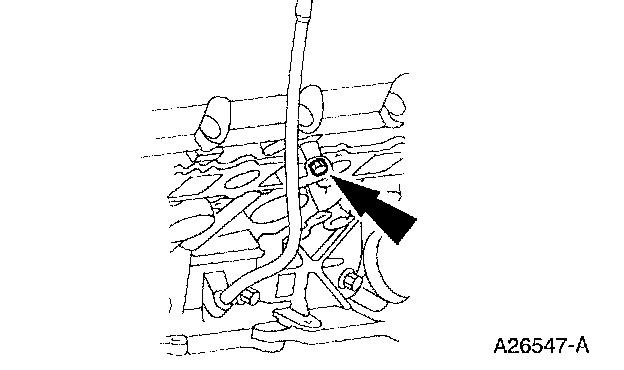

11. Remove the bolt and position the oil level indicator tube aside.

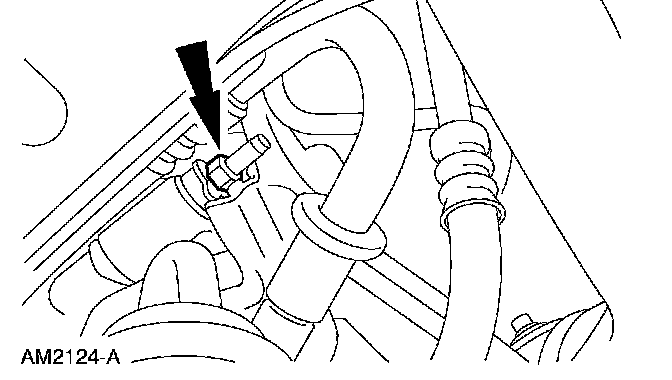

12. Remove the positive crankcase ventilation (PCV) valve hose and disconnect the electrical connector.





13. Disconnect the wiring harness anchor from the valve cover.

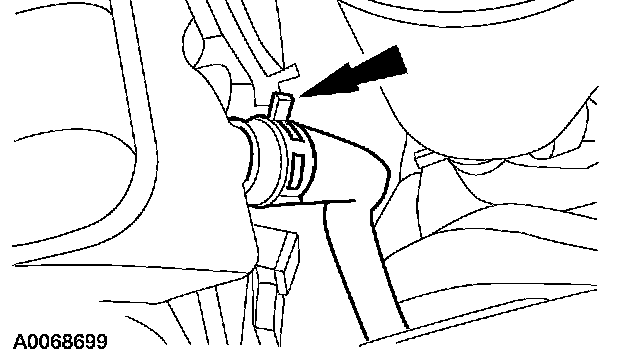

14. Remove the degas bottle vent hose.





15. Remove the degas bottle return hose.

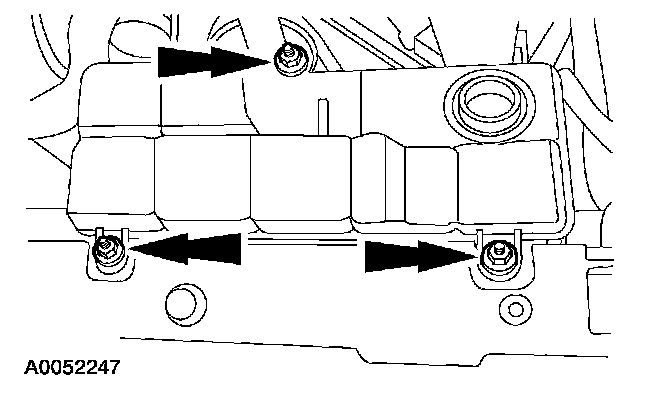

16. Remove the nuts and the degas bottle.

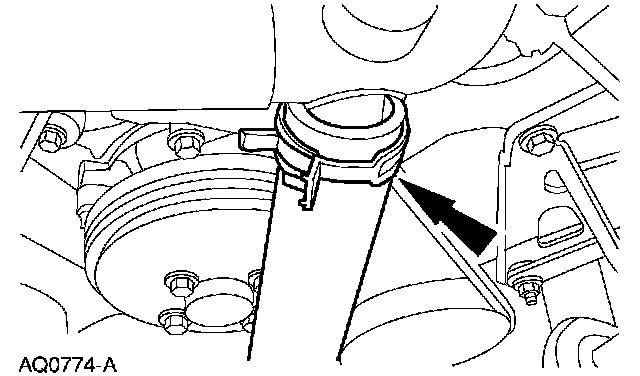

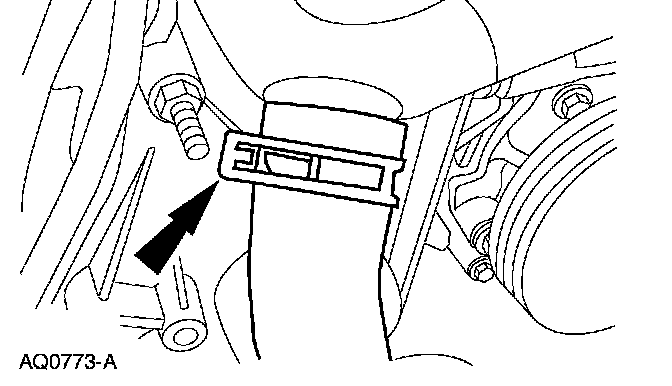

17. Disconnect the upper radiator hose from the bypass tube.





18. Disconnect the lower radiator hose from the bypass tube.





19. Disconnect the cooling fan electrical connector.

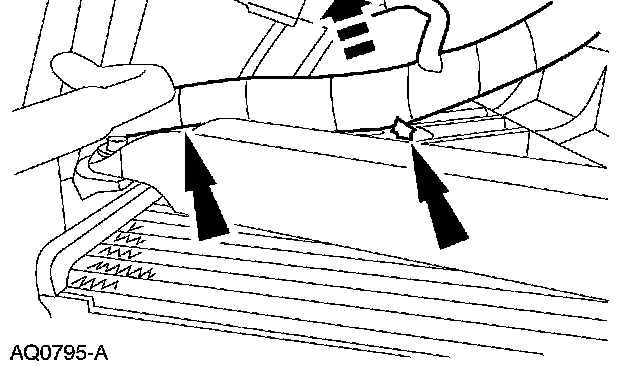

20. Separate the cooling fan wiring harness from the fan shroud.





21. Remove the LH cooling fan shroud bolt.





22. Remove the RH cooling fan shroud bolt.

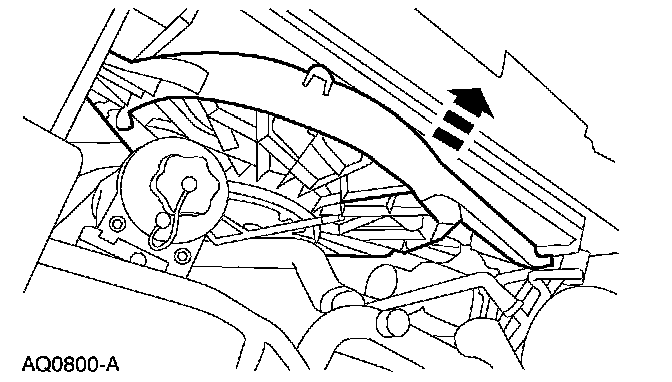

23. Remove the cooling fan and shroud as an assembly.
24. Remove the crankshaft front oil seal.

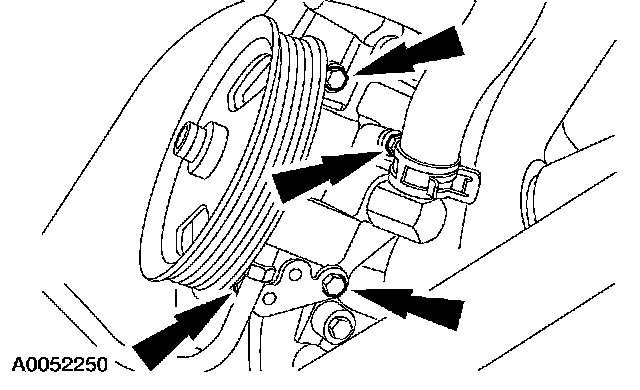

25. Remove the three bolts shown. Loosen the fourth bolt (hidden behind the p/s tube). Position the power steering pump aside.

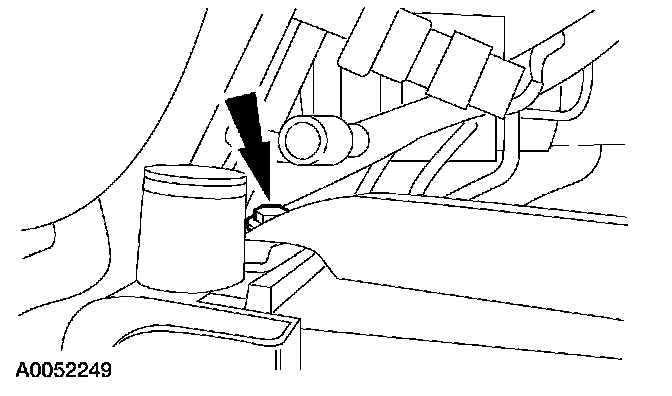

26. Remove the A/C muffler bracket nut.

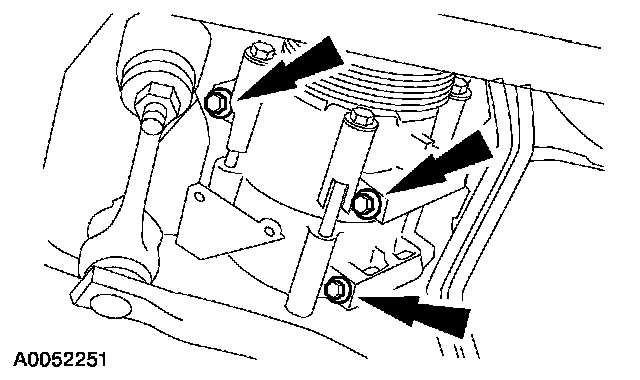

27. Remove the bolts and position the A/C compressor aside.

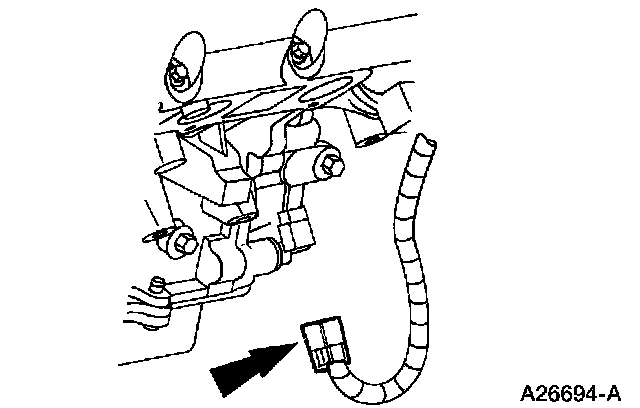

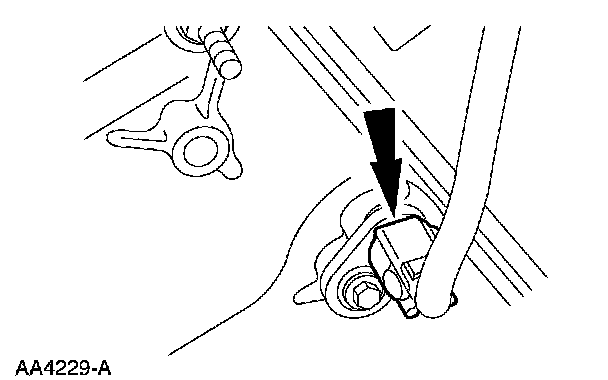

28. Disconnect the crankshaft position (CKP) sensor electrical connector.

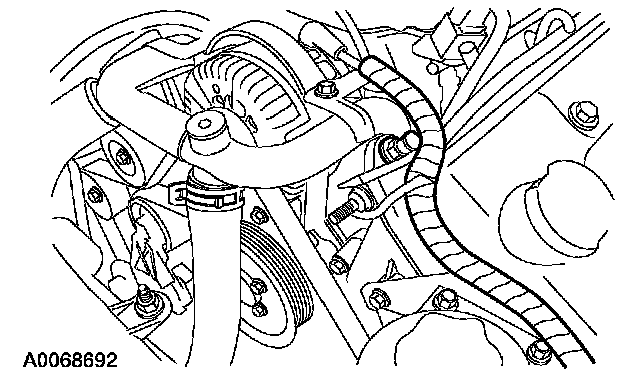

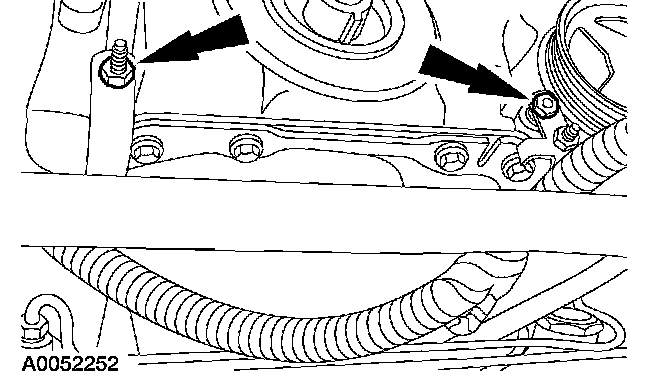

29. Remove the wiring harness nuts and position the wiring harness aside.

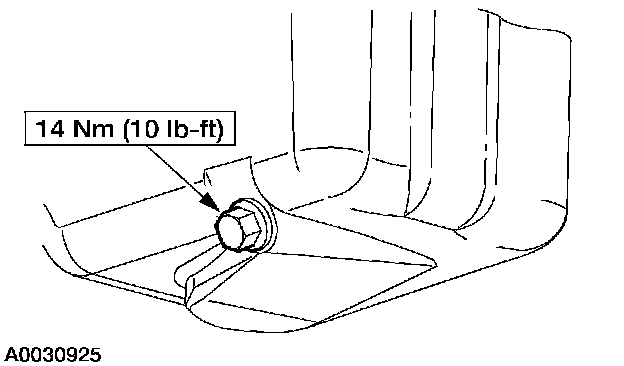

30. Remove the drain plug and drain the oil.
^ Install the drain plug when finished.

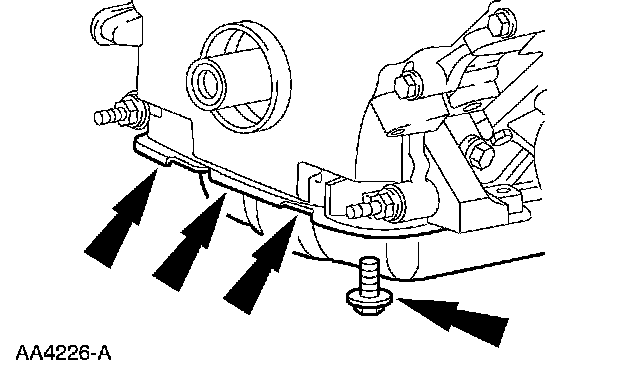

31. Remove the front four oil pan bolts.





Manual transmission vehicles

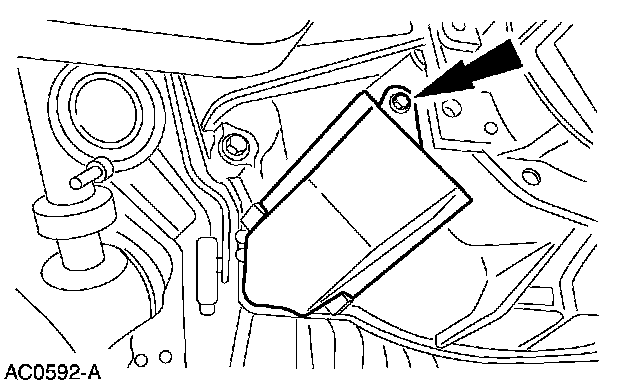

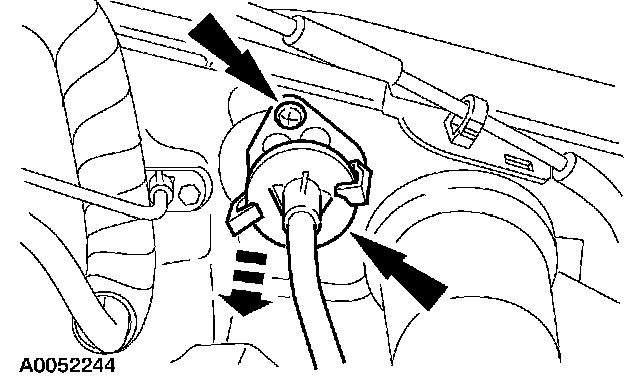

32. Remove the bolt and the clutch release cable shield.

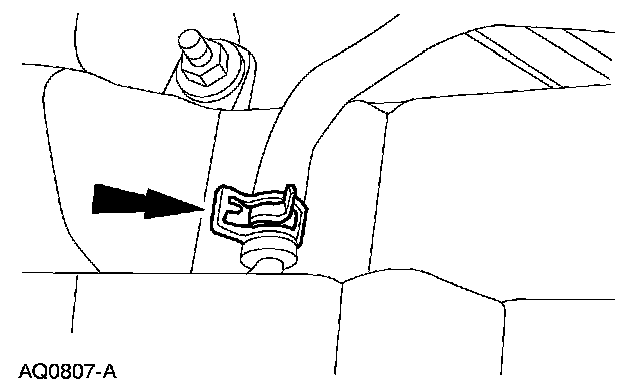

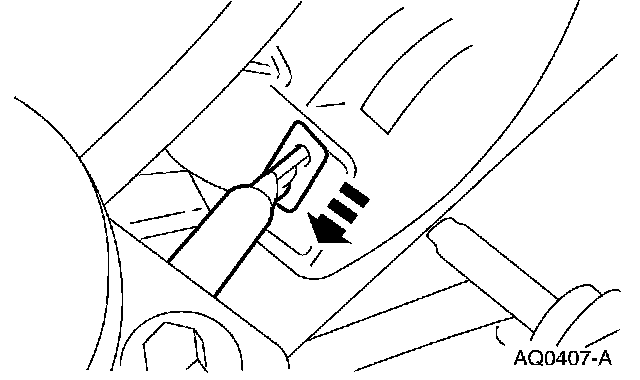

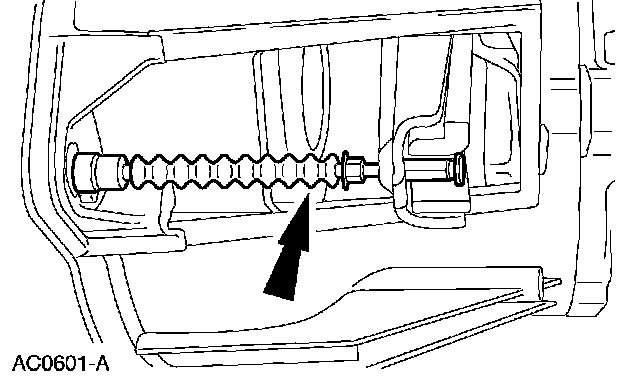

33. Disengage the clutch release cable from the clutch release fork.
34. Lower the vehicle.





All vehicles

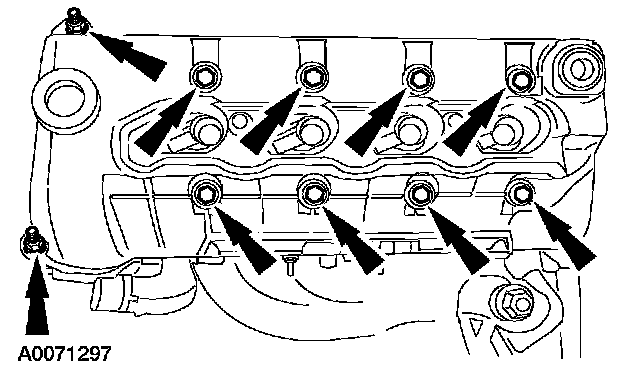

35. Remove the LH valve cover.





36. CAUTION: Do not use metal scraper, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

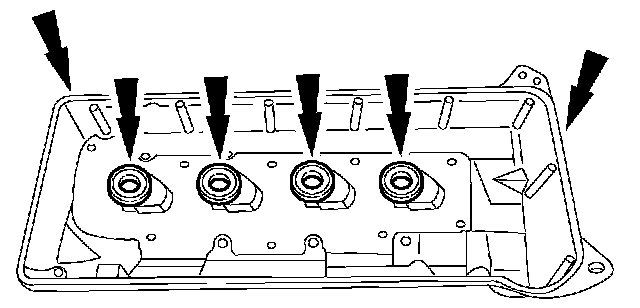

Clean and inspect sealing surfaces and valve cover gaskets. If necessary, install new gaskets. Make sure the gaskets are correctly seated on the valve cover.

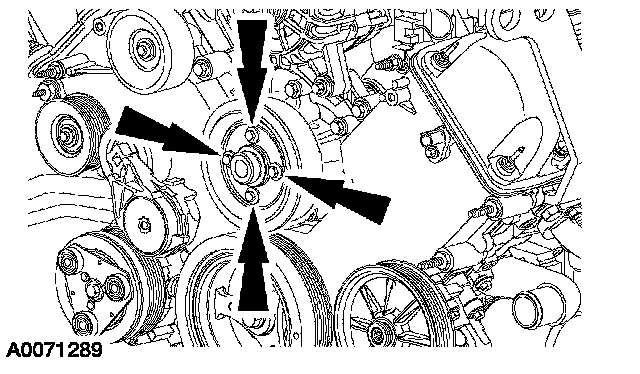

37. Remove the four bolts and the coolant pump pulley.

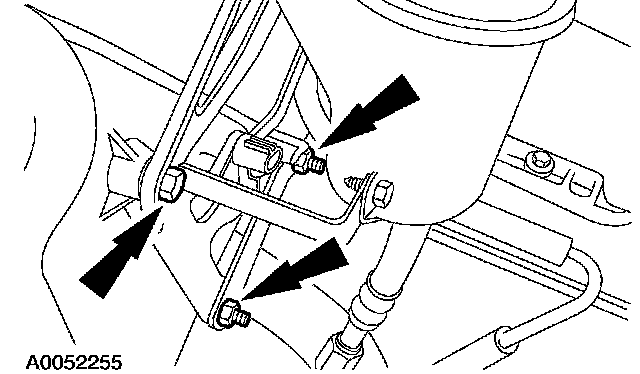

38. Remove the three bolts and position the power steering reservoir and bracket assembly aside.





39. Disconnect the camshaft position (CMP) sensor electrical connector.

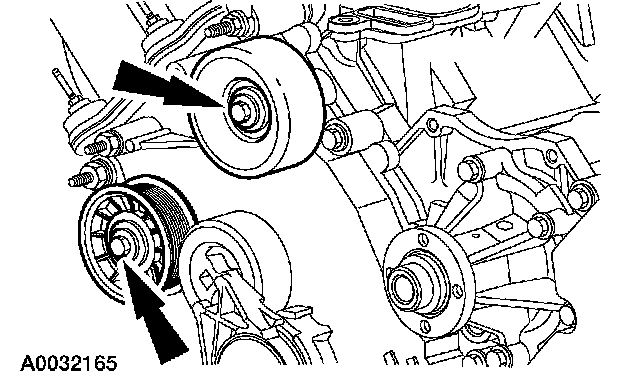

40. Remove the idler pulleys.

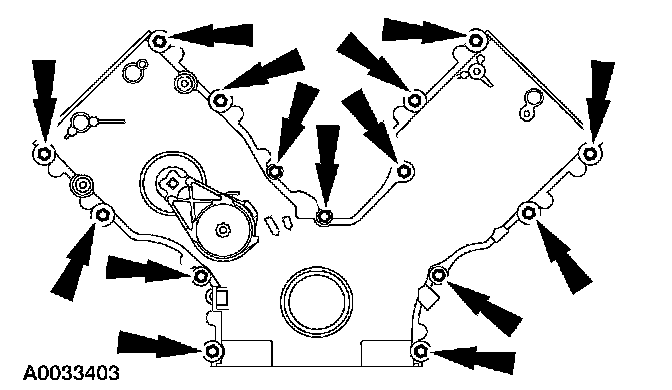

41. Remove the bolts and the studs and remove the engine front cover.





42. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

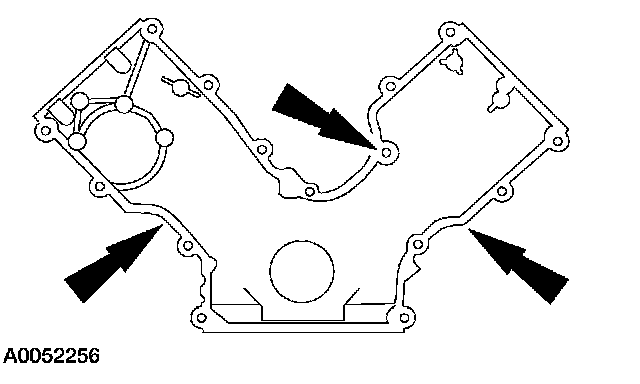

Remove and discard the gasket. Clean and inspect the sealing surfaces.
