Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Mustang V8-4.6L DOHC VIN R
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Warning Devices
>>
Test E
Test E
PINPOINT TEST E: THE HEADLAMP ON REMINDER CHIME DOES NOT OPERATE CORRECTLY

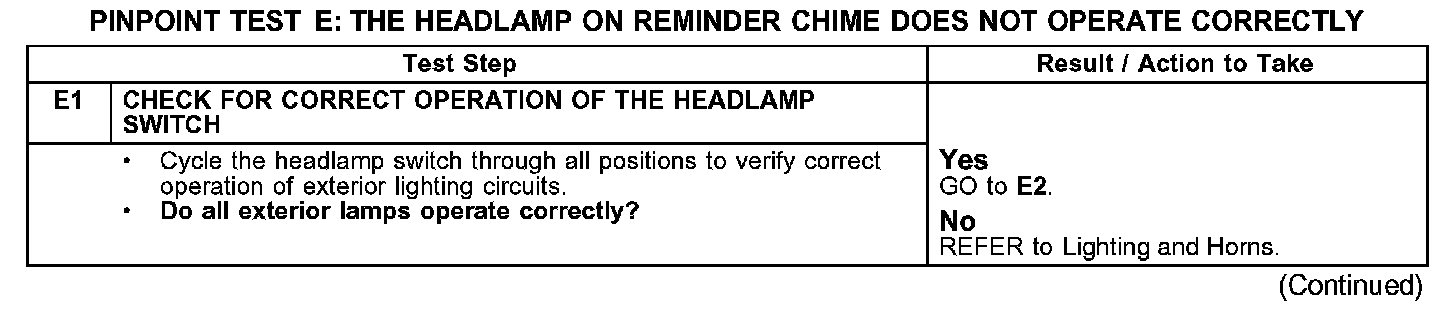

Test E1:

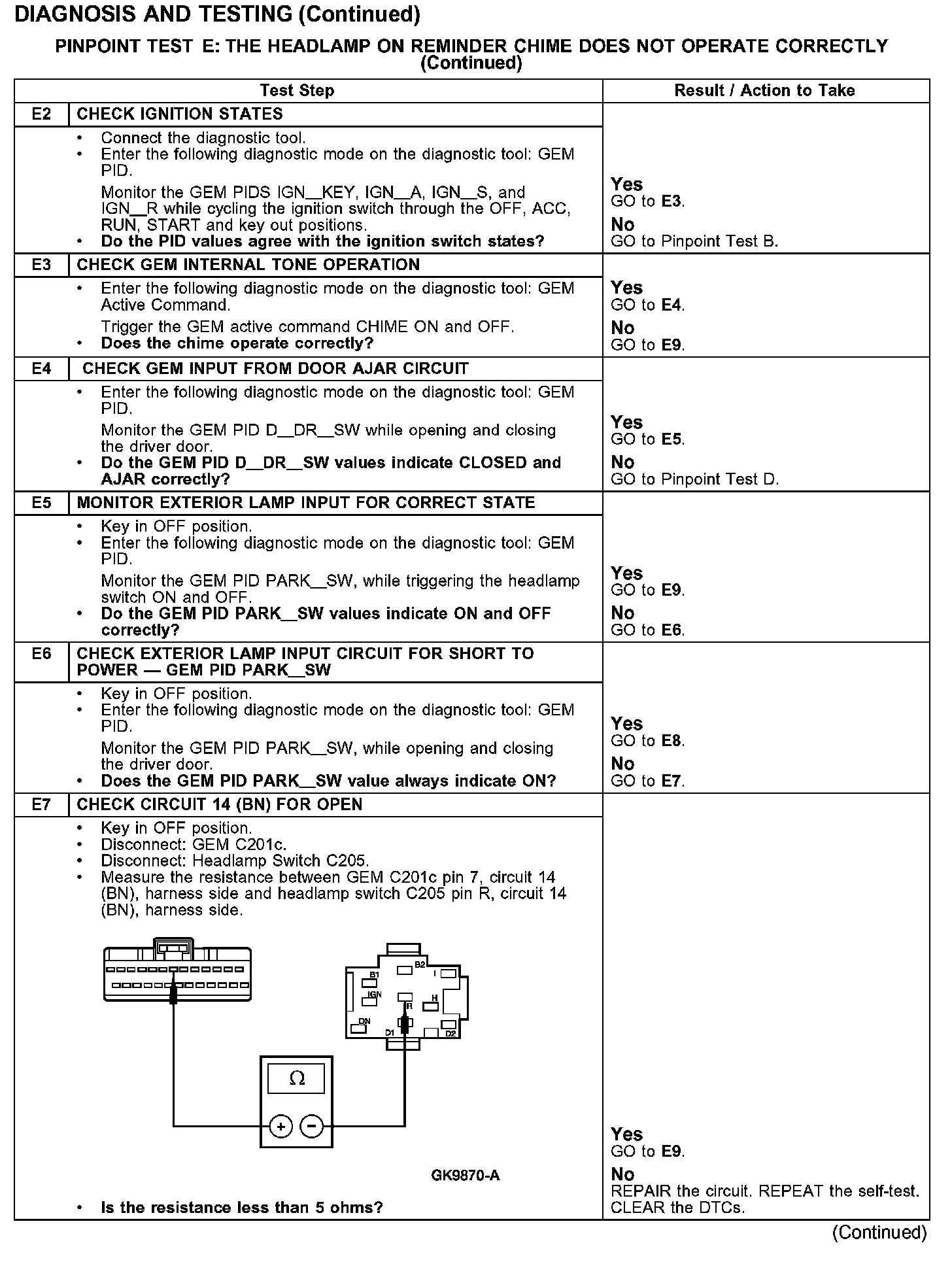

Test E2-E7:

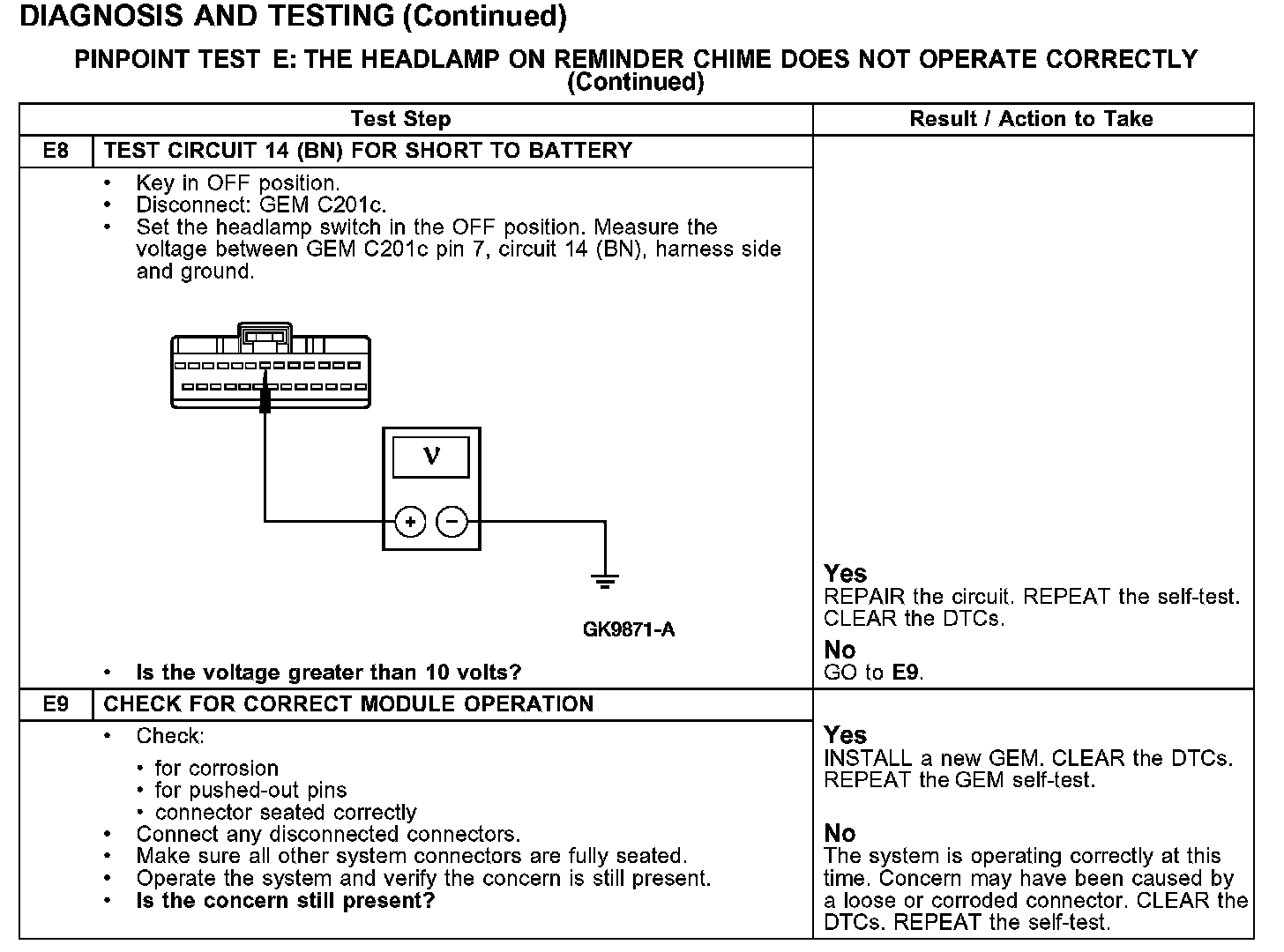

Test E8-E9:
