EGR Tube: Service and Repair

EXHAUST MANIFOLD TO EXHAUST GAS RECIRCULATION (EGR) VALVE TUBE - MACH I

REMOVAL
1. Remove the air intake scoop.

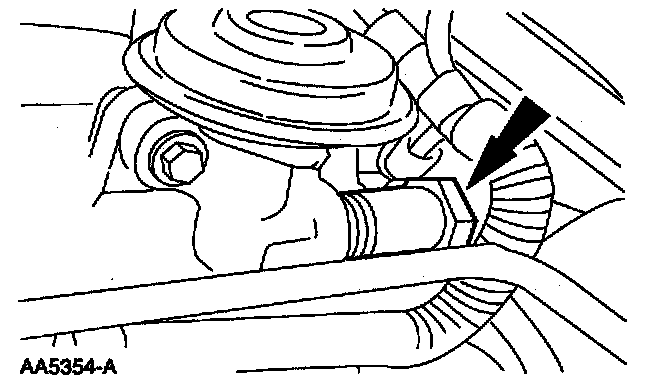

2. Disconnect the exhaust gas recirculation (EGR) tube from the EGR valve.
3. With the vehicle in NEUTRAL, position it on a hoist.

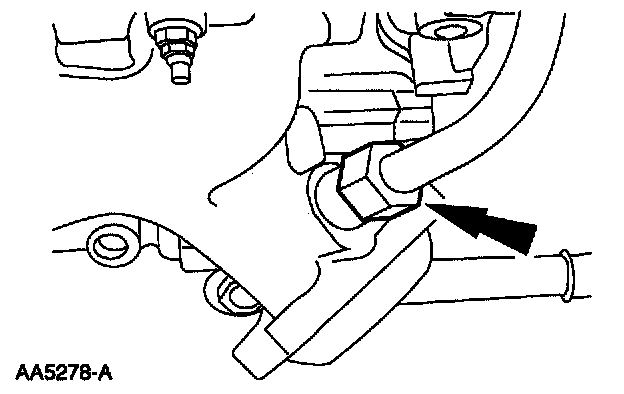

4. Disconnect the EGR tube from the exhaust manifold.

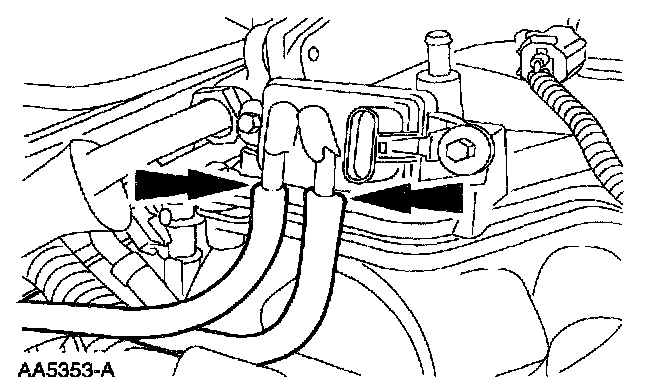

5. Disconnect the hoses and remove the tube from the vehicle.

INSTALLATION












1. To install, reverse the removal procedure.
