EGR Valve: Service and Repair
EXHAUST GAS RECIRCULATION (EGR) VALVE - MACH IREMOVAL
1. Remove the air intake scoop.

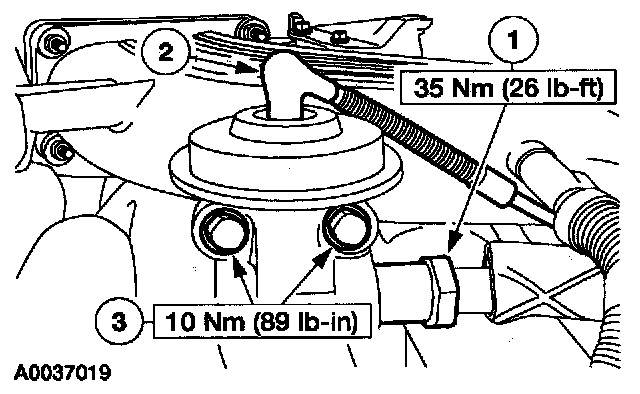

2. Remove the exhaust gas recirculation (EGR) valve.
1 Disconnect the EGR tube upper fitting.
2 Disconnect the vacuum hose.
3 Remove the two bolts and remove the EGR valve and gasket.
3. CAUTION: Do not use metal scrapers, wire brushes, power abrasive disks or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
Clean and inspect the mating surfaces.
INSTALLATION
1. To install, reverse the removal procedure.
- Install a new gasket.
