Air Cleaner Outlet Pipe

AIR CLEANER OUTLET PIPE

REMOVAL

Cobra

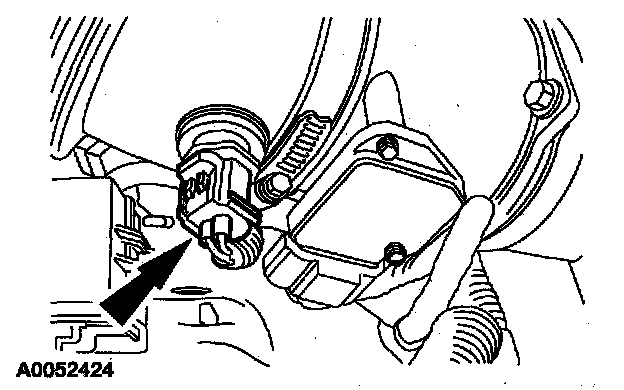

1. Disconnect the intake air temperature (IAT) sensor.

All vehicles







2. Disconnect the vacuum hose.

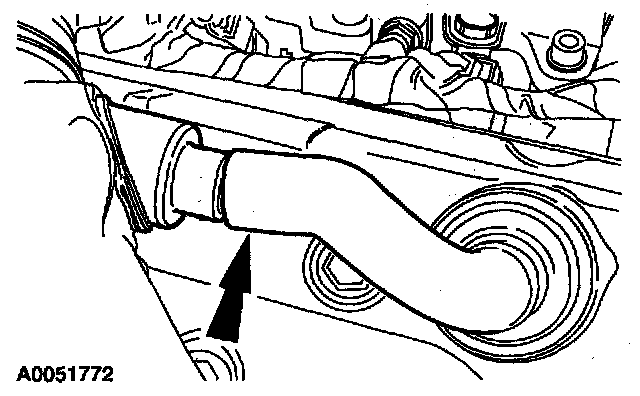

3. Disconnect the breather hose.

NOTE: Cobra shown, Mach I similar.

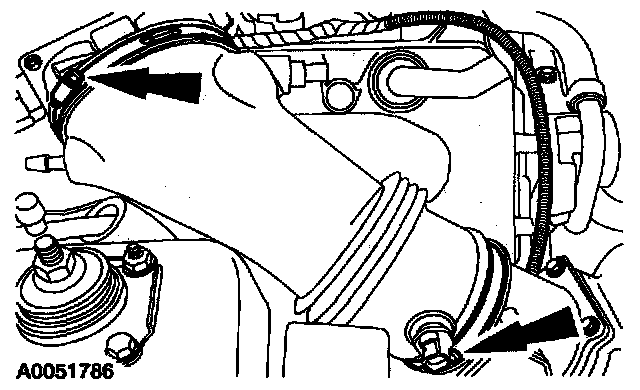

4. Loosen the clamps and remove the air cleaner outlet pipe.

INSTALLATION
1. To install, reverse the removal procedure.
