Front Seat

SAFETY BELT BUCKLE - FRONT SEAT

REMOVAL

Driver and passenger seat
1. Remove the front seat.

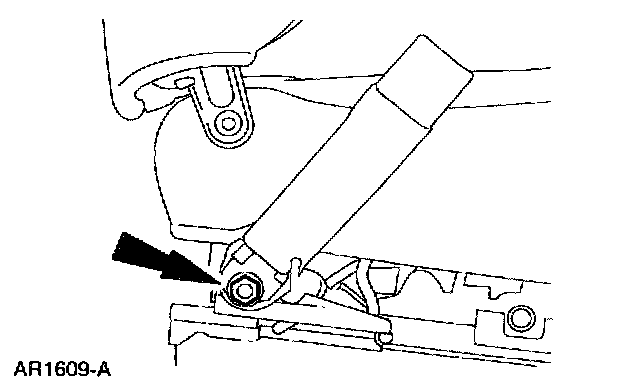

2. Remove the nut and the safety belt buckle.

Driver seat only

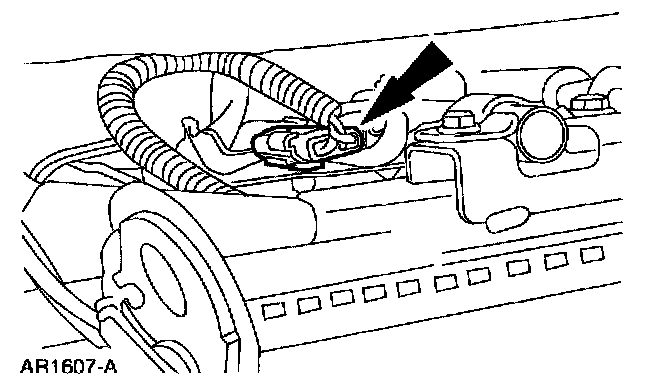

3. Disconnect the safety belt buckle electrical connector.

INSTALLATION

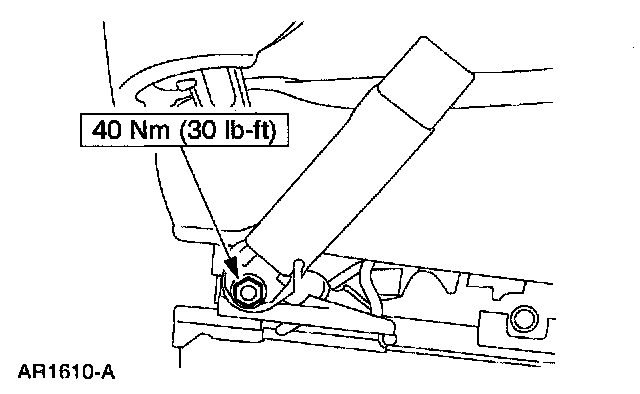

1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
