Convertible

WINDOW GLASS - QUARTER, CONVERTIBLE

REMOVAL
1. Remove the quarter trim panel.

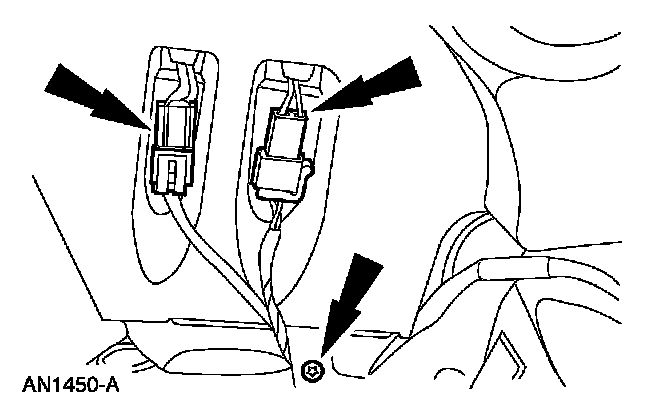

2. Disconnect the connectors and remove the screw.







3. Remove the screw.







4. Remove the screw and the speaker.







5. Disconnect the electrical connector.

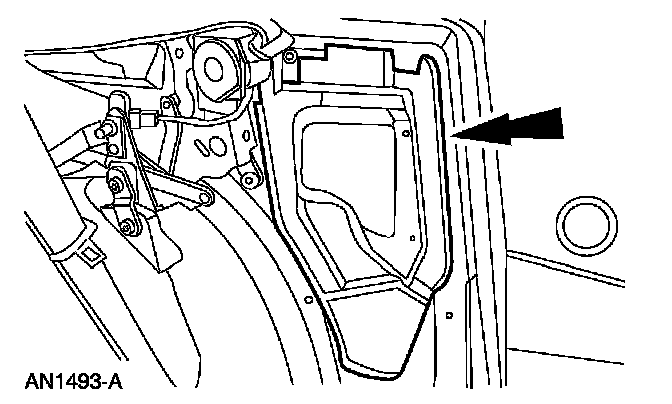

6. Remove the watershield.

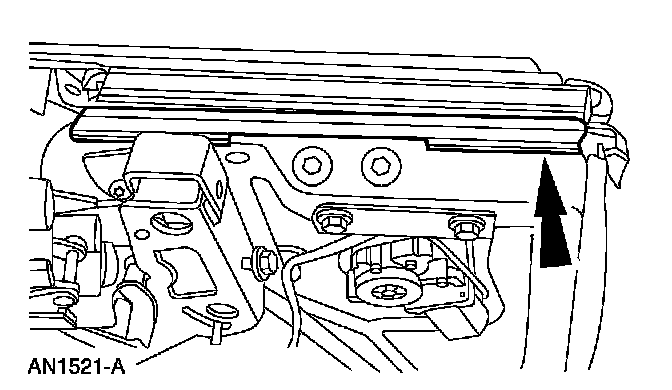

7. Remove the interior weatherstrip.







8. Remove the bolt.







9. Remove the bolts and the glass.

INSTALLATION
1. To install, reverse the removal procedure.
