Quarter

WINDOW GLASS - QUARTER

REMOVAL
1. Remove the quarter trim panel.

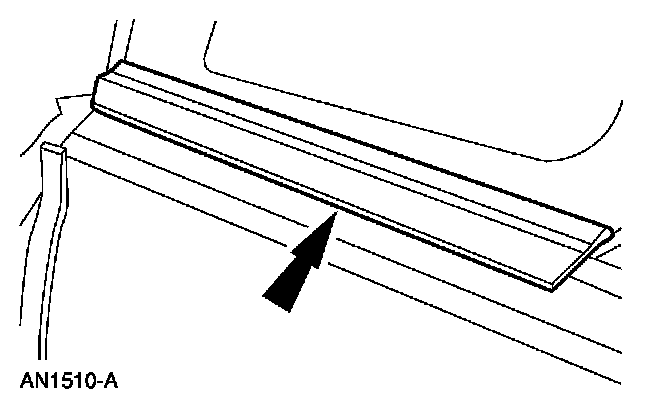

2. Remove the roof side trim moulding.







3. Remove the exterior quarter glass weatherstrip.







4. Remove the nuts.

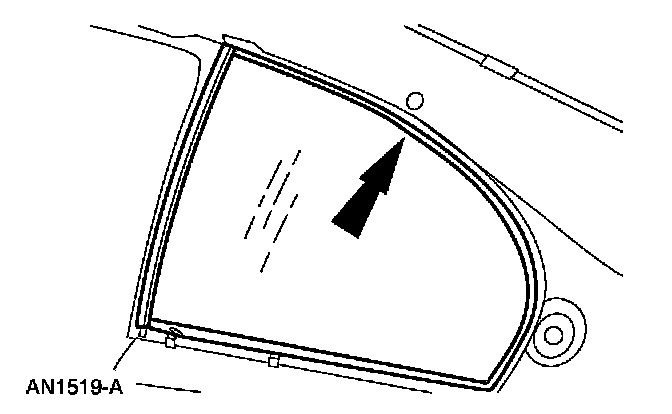

5. Remove the quarter window glass.

INSTALLATION
1. To install, reverse the removal procedure.
