Caliper Removal and Installation

Brake Caliper - Cobra

Removal
1. Raise and support the vehicle.
2. Remove the tire and wheel assembly.





3. Remove the caliper locating pin E-clip.





4. Remove the caliper locating pin.





5. Remove the front brake flow bolt.





6. Remove the caliper.





7. Remove the brake pads.

Installation

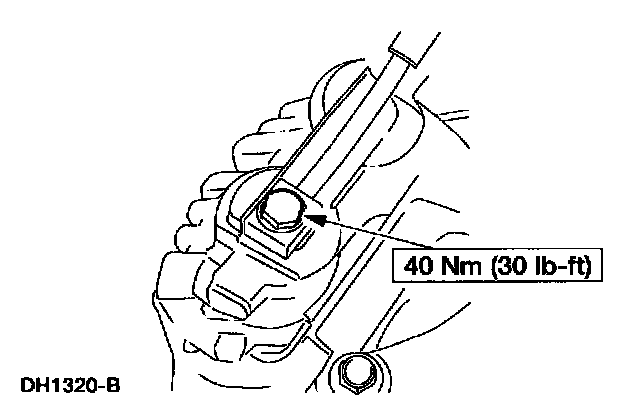

1. NOTE: Use new copper washers on front brake flow bolt.

Follow the removal procedure in reverse order.
^ Bleed the caliper.
