Front

Brake Pads - Cobra

Removal
1. Remove brake fluid in the master cylinder reservoir until the reservoir is half full.
2. Raise and support the vehicle.
3. Remove the tire and wheel assembly.

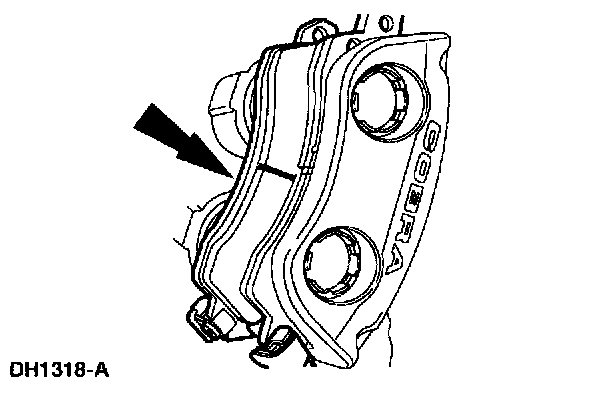

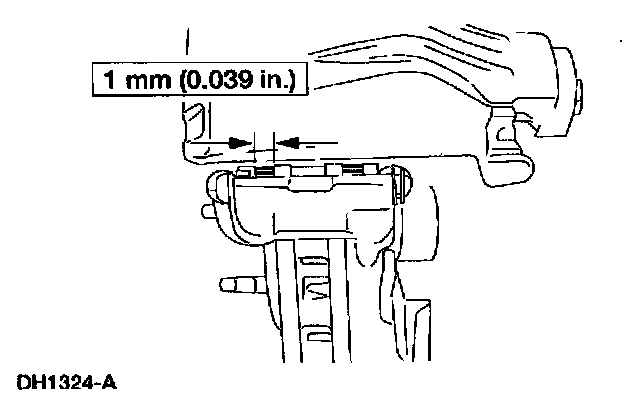

4. CAUTION: Install new pads if worn to or past the specified thickness above the metal backing plate or rivets. Install new pads in complete axle sets.

Inspect the pads for wear and contamination.

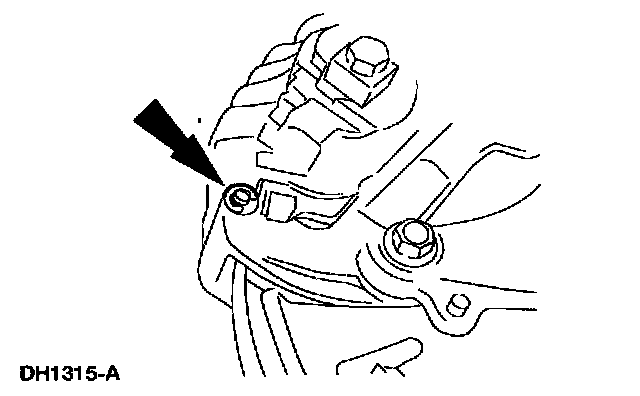

5. Remove the caliper locating pin E-clip.

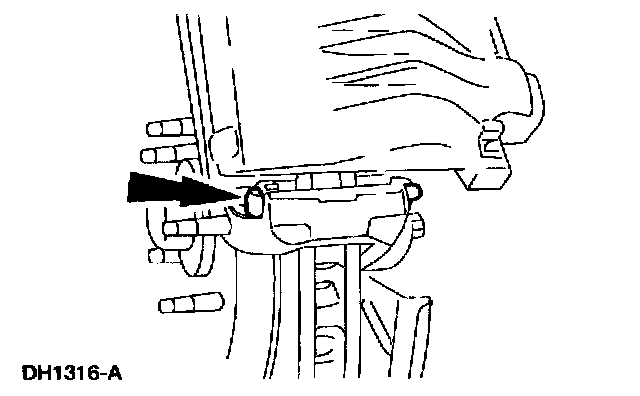

6. Remove the caliper locating pin.

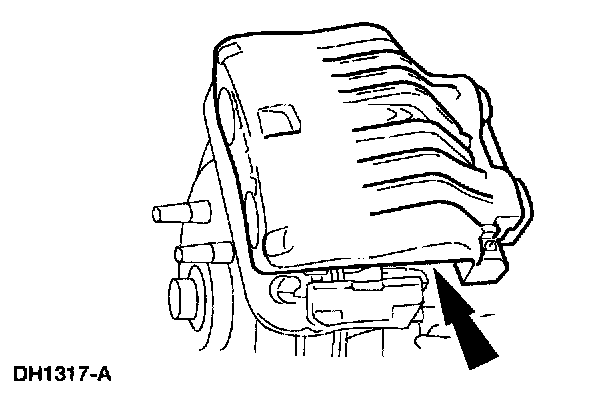

7. Remove the caliper.





8. Remove the brake pads.





9. Measure the brake disc thickness.
^ Install a new brake disc if not within specification.





10. Inspect the disc brake caliper.
^ If leaks or damaged boots are found, disassembly is required.

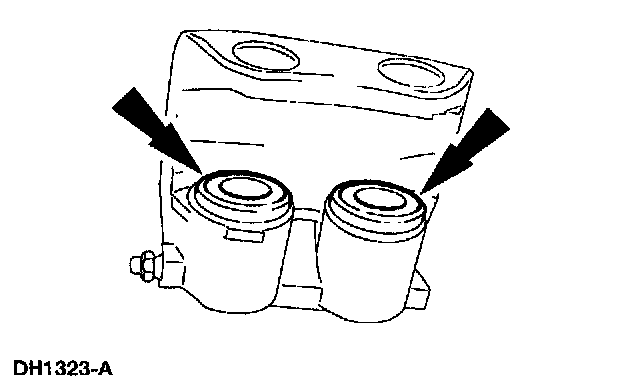

11. NOTE: Use a wood block or used pad to protect pistons and boots.

Compress the caliper pistons.

Installation
1. Follow the removal procedure in reverse order.
