Thermostat: Service and Repair
ThermostatRemoval and Installation
1. With the vehicle in neutral, position it on a hoist.
2. Drain the engine coolant.

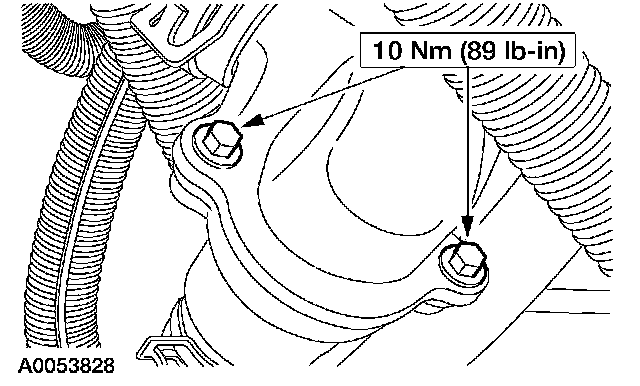

3. Remove the thermostat housing bolts.
4. Remove the coolant thermostat.

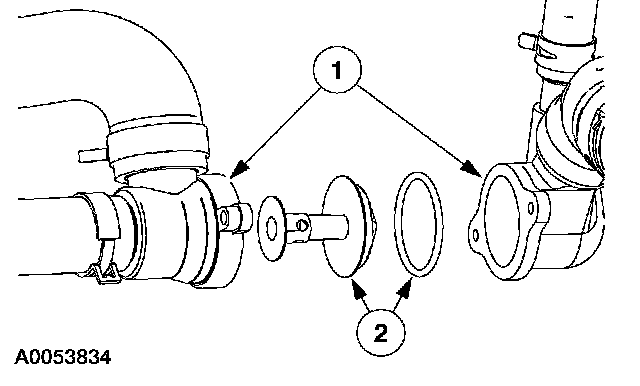

1. Separate the thermostat housing.
2. Remove the coolant thermostat and the O-ring seal.
^ Inspect the O-ring seal. Install a new seal, if necessary.
5. NOTE: The thermostat is indexed and must be returned to the original location.
NOTE: Make sure the new O-ring seal is secure around the thermostat.
To install, reverse the removal procedure.
6. Fill the cooling system.
