Supercharger Belt Tensioner

Supercharger Belt Tensioner

Removal and Installation





1. Remove the supercharger drive belt cover.

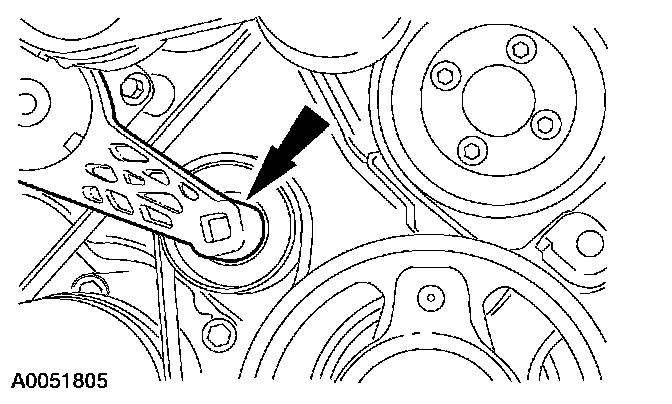

2. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.

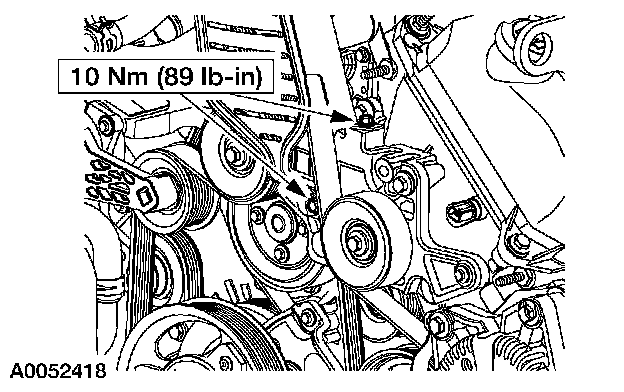

3. Remove the bolts and the supercharger belt tensioner.
4. To install, reverse the removal procedure.
