Supercharger Belt

Supercharger Belt

Removal and Installation

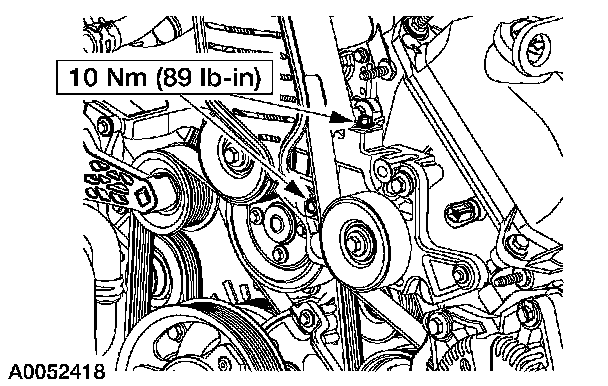

1. Remove the supercharger drive belt cover.

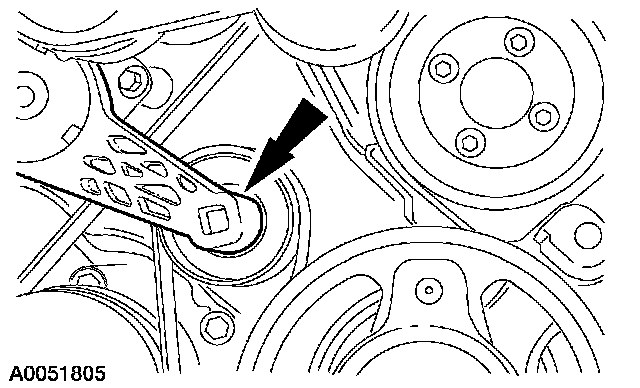

2. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.
3. To install, reverse the removal procedure.
