Supercharger Belt Idler Pulley

Supercharger Belt Idler Pulley

Removal and Installation

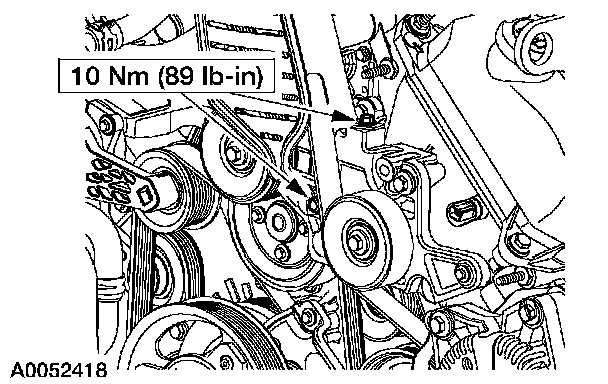

1. Remove the supercharger drive belt cover.

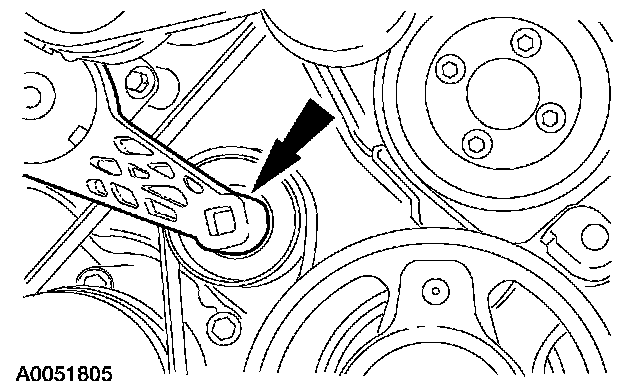

2. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.

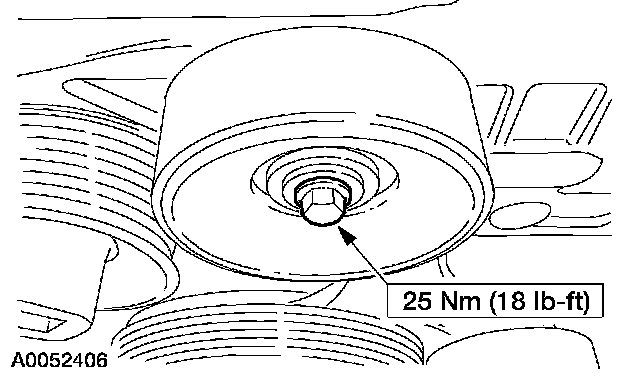

3. Remove the bolt and the supercharger belt idler pulley.
4. To install, reverse the removal procedure.
