Oil Pan: Service and Repair

Oil Pan

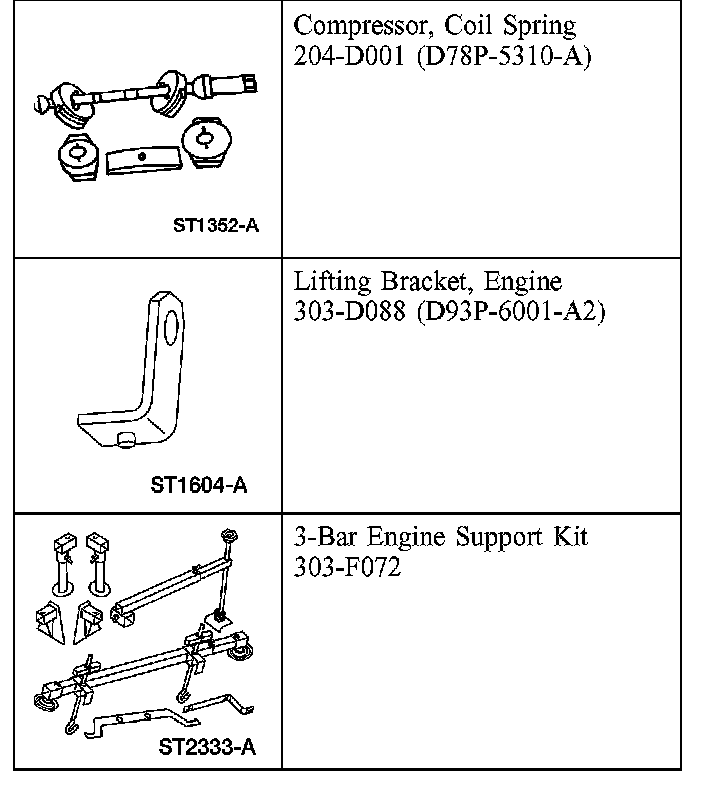

Special Tool(s)

Removal
1. Disconnect the battery ground cable.
2. Remove the transmission.
3. Remove the air cleaner outlet tube.
4. Remove the radiator sight shield.
5. Remove the manifold and tube assembly-accumulator to compressor.
6. Remove the A/C line.

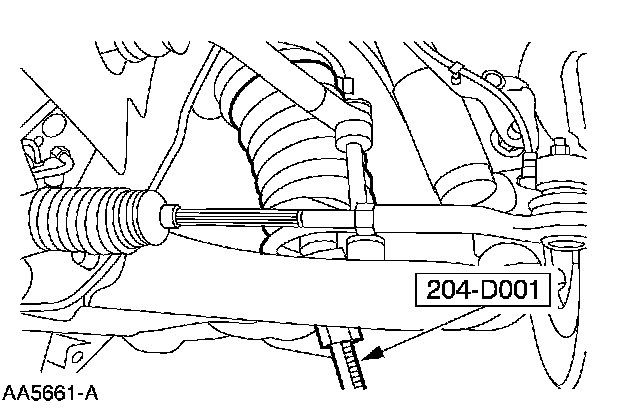

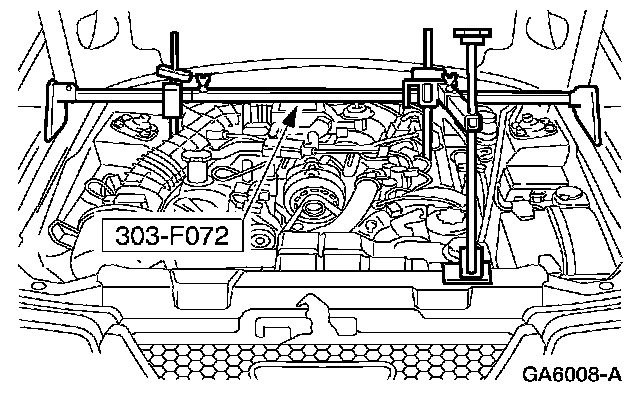

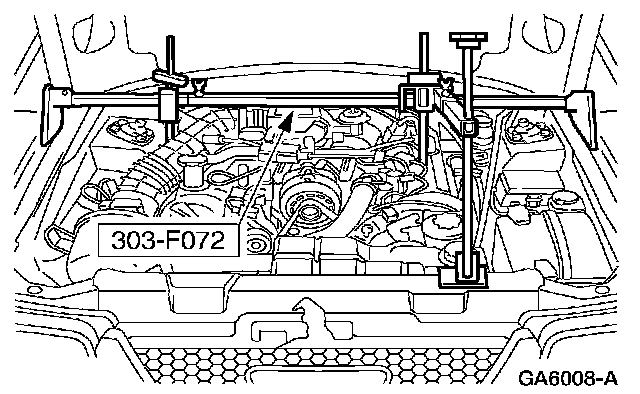

7. Install the special tools.

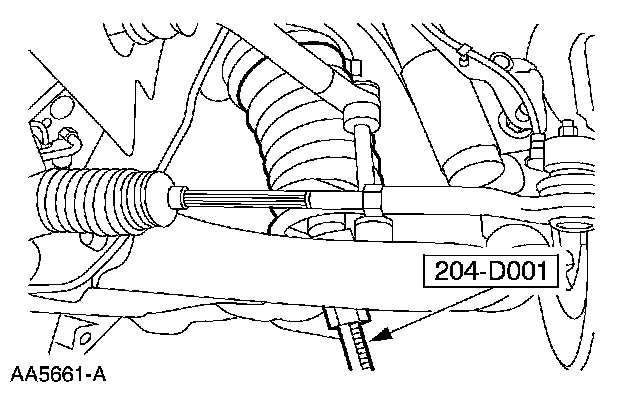

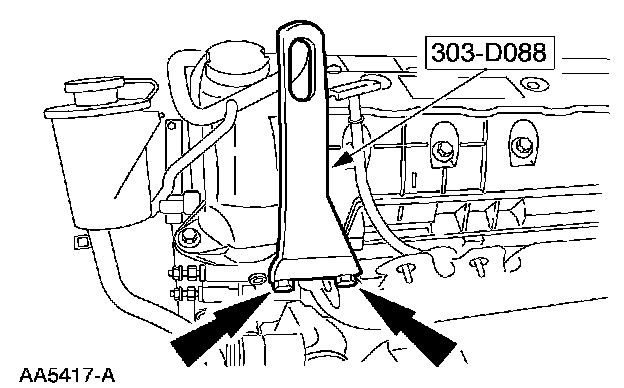

8. Install the special tool.
9. Raise the vehicle on a hoist.

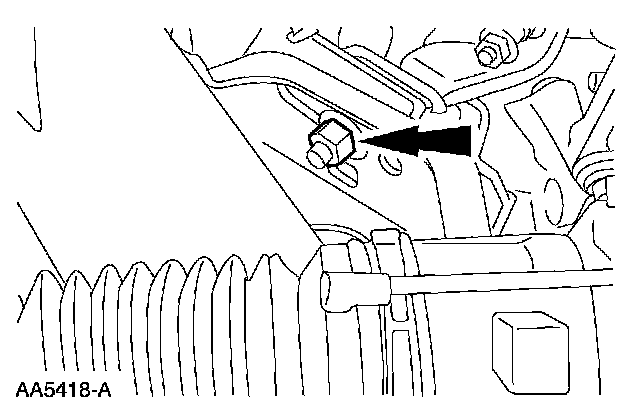

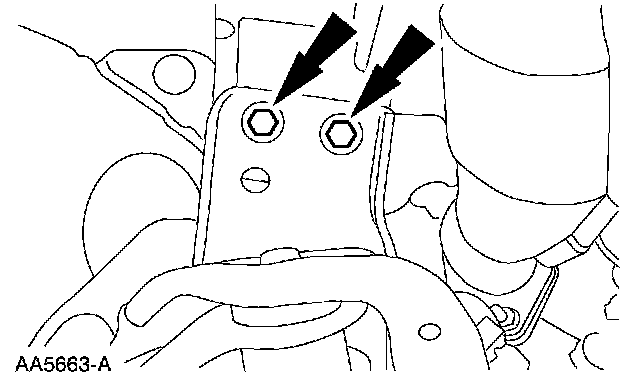

10. Remove the two nuts.
11. Lower the vehicle.

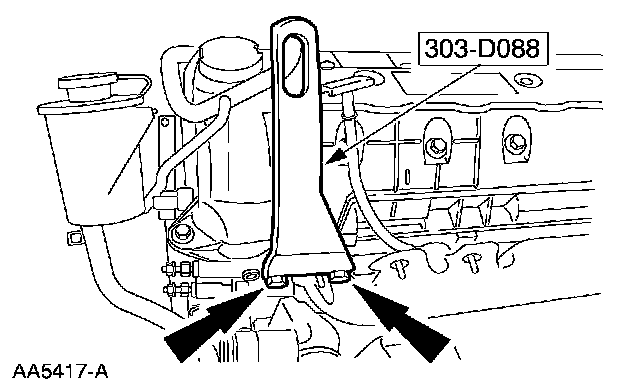

12. Using the special tool, raise the engine.
13. Raise the vehicle on a hoist.

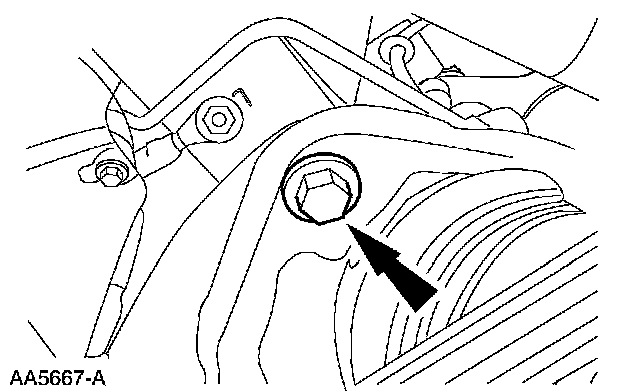

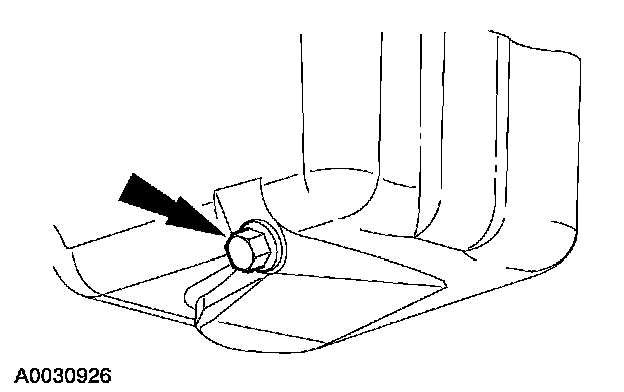

14. Remove the oil pan drain plug and drain the engine oil.

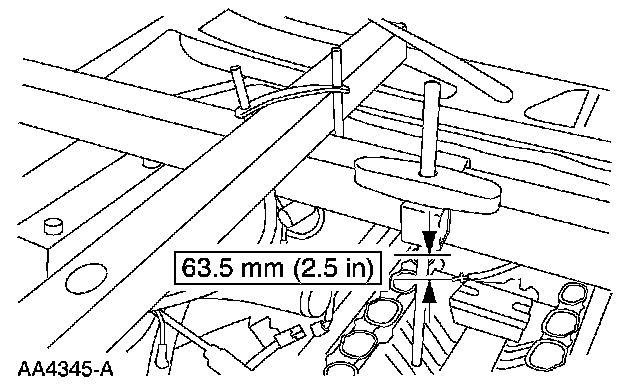

15. Using the special tool, compress the front coil springs.

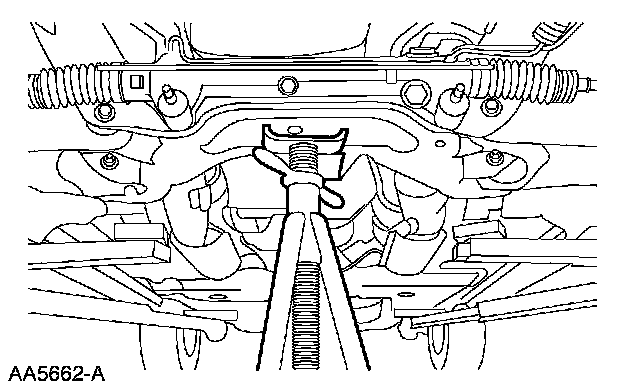

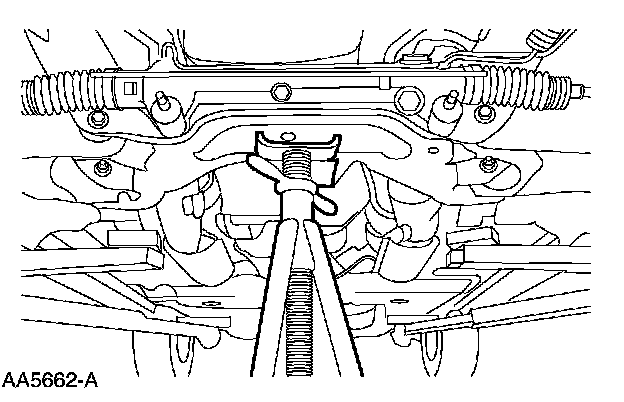

16. Position a safety stand.

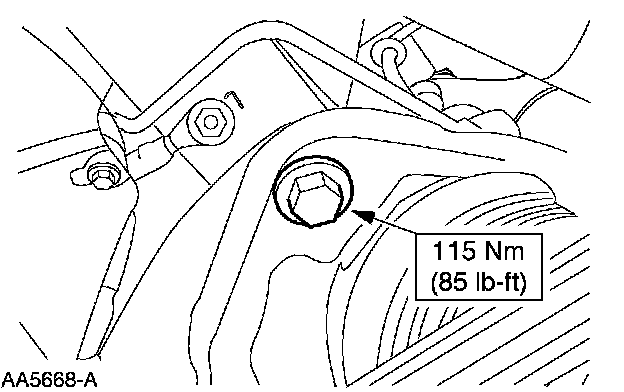

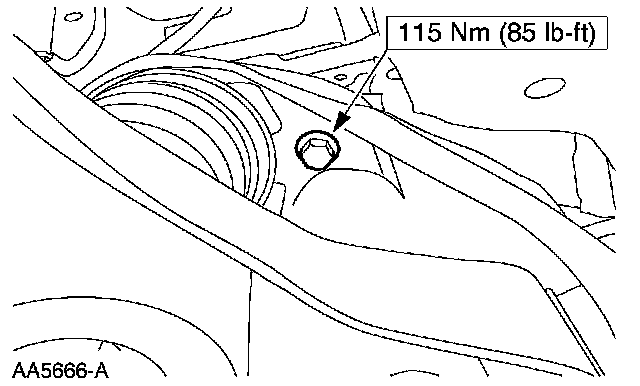

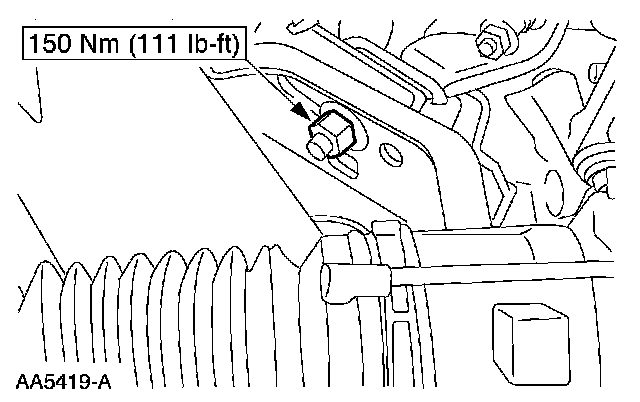

17. Remove the four bolts.





18. NOTE: Do not completely remove the bolts. Loosen the bolts.

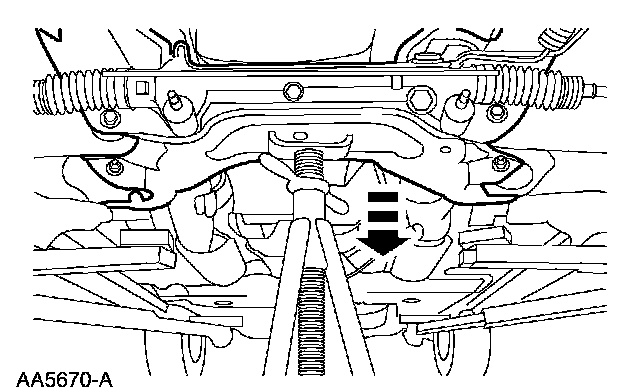

19. Lower the front sub-frame.

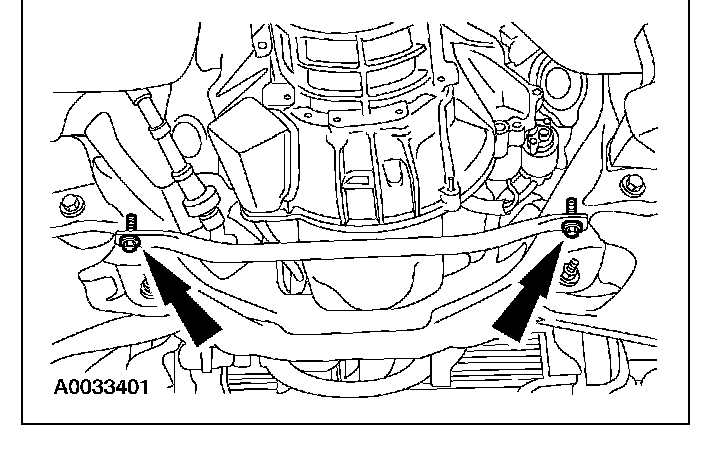

20. Remove the sub-frame brace.

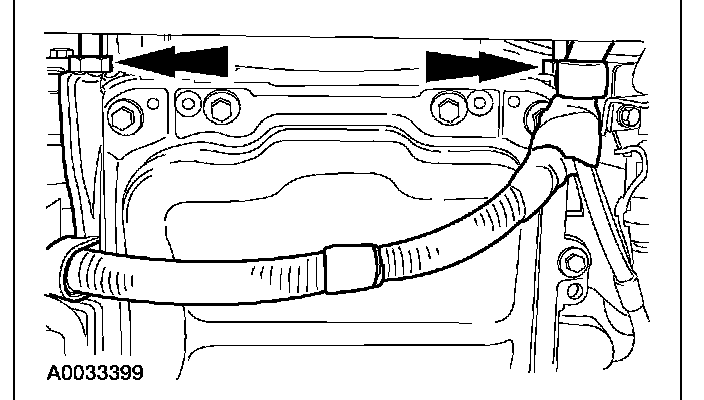

21. Remove the starter wiring harness nuts and position the wiring harness out of the way.





22. NOTE: Be careful when removing the oil pan gasket. It is reusable.

Remove the oil pan and gasket.
^ Inspect the oil pan gasket for damage.

Installation

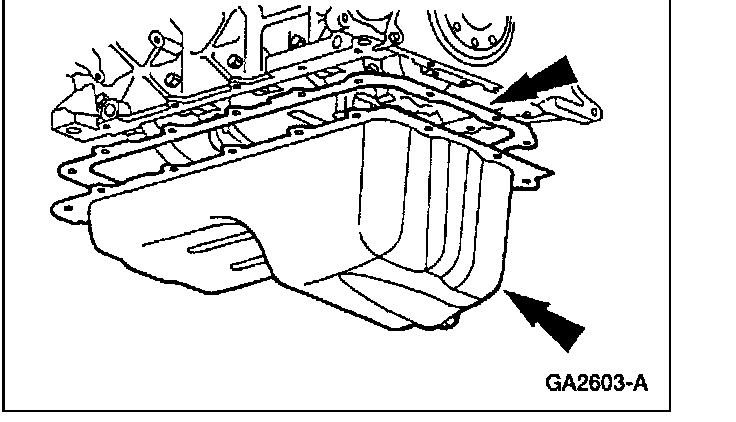

1. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

Clean and inspect the mating surfaces.





2. NOTE: If the oil pan is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure may result in future oil leakage.

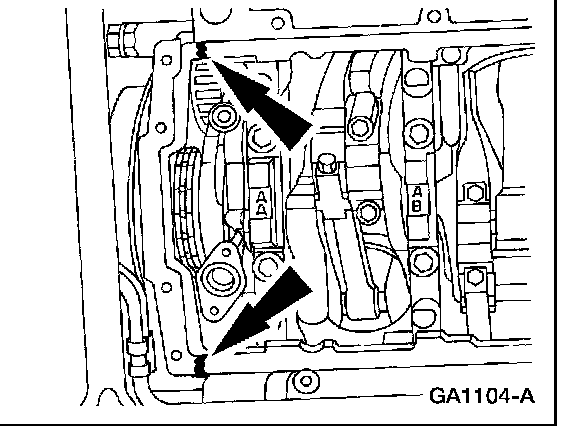

Apply silicone gasket and sealant at the engine front cover-to-cylinder block mating surface.





3. NOTE: If the oil pan is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure may result in future oil leakage.

Apply silicone gasket and sealant at the rear oil seal retainer-to-cylinder block sealing surface.





4. Install the oil pan and gasket and loosely install the bolts.

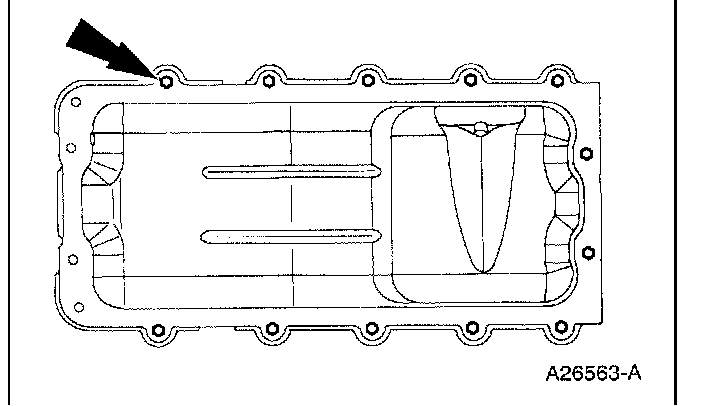

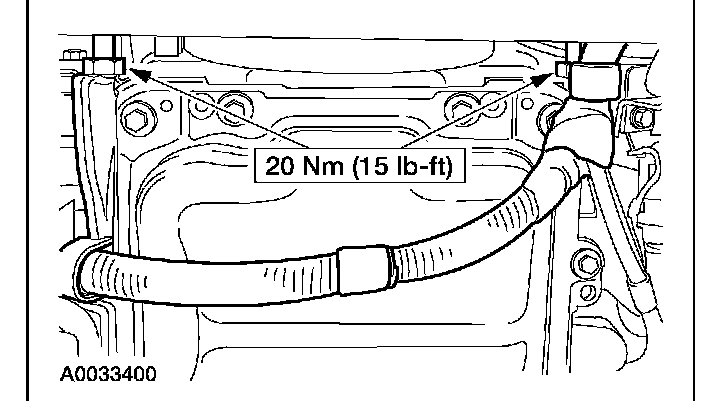

5. Tighten the bolts in the sequence shown in three stages.
^ Stage 1: Tighten to 2 Nm (18 inch lbs.).
^ Stage 2: Tighten to 20 Nm (15 ft. lbs.).
^ Stage 3: Tighten an additional 60 degrees.

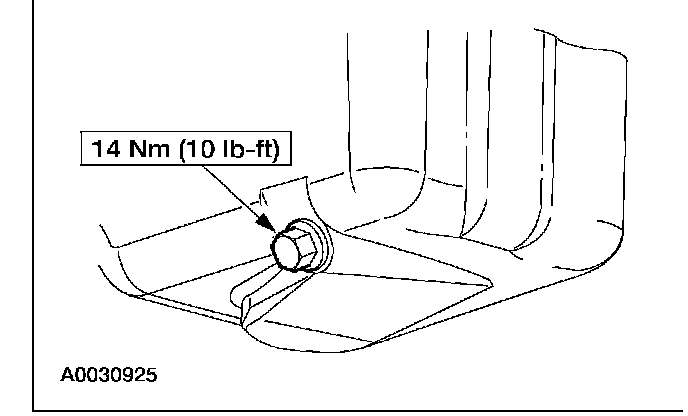

6. Install the oil pan drain plug.





7. Position the starter wiring harness and install the wiring harness nuts.





8. Install the sub-frame brace.

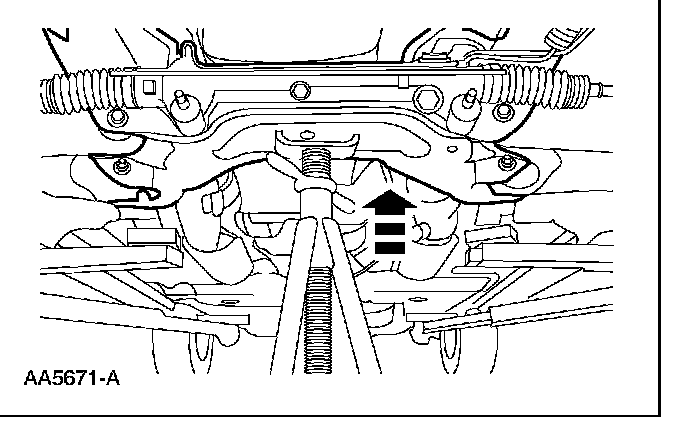

9. Raise the front sub-frame into position.

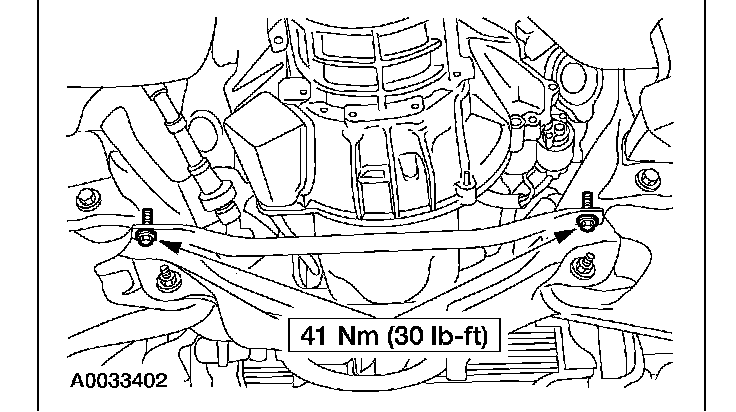

10. Install the two bolts.





11. Install the two bolts.

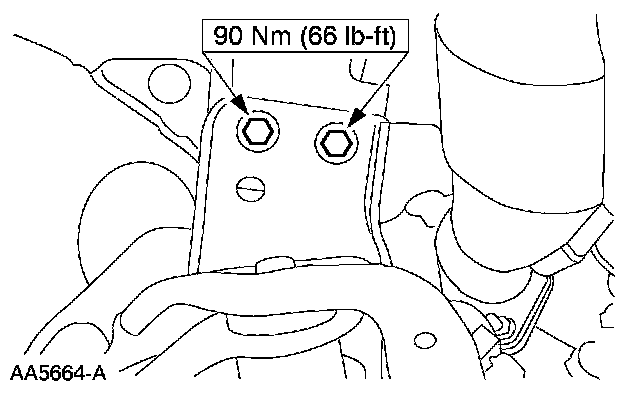

12. Install the four bolts.





13. Position the safety stand aside.





14. Release the tension from the front coil springs and remove the special tool.
15. Raise the vehicle.





16. Using the special tool, lower the engine and remove the special tool.





17. Remove the special tools.





18. Install the two nuts.
19. Install the transmission.
20. Lower the vehicle.
21. Fill the engine crankcase with clean engine oil.
22. Install the A/C line.
23. Install the manifold and tube assembly-accumulator to compressor, 4.6L.
25. Install the air cleaner outlet tube.
26. Install the battery ground cable.
27. Start the engine and check for leaks.
