Front Crankshaft Seal: Service and Repair

Crankshaft Front Seal

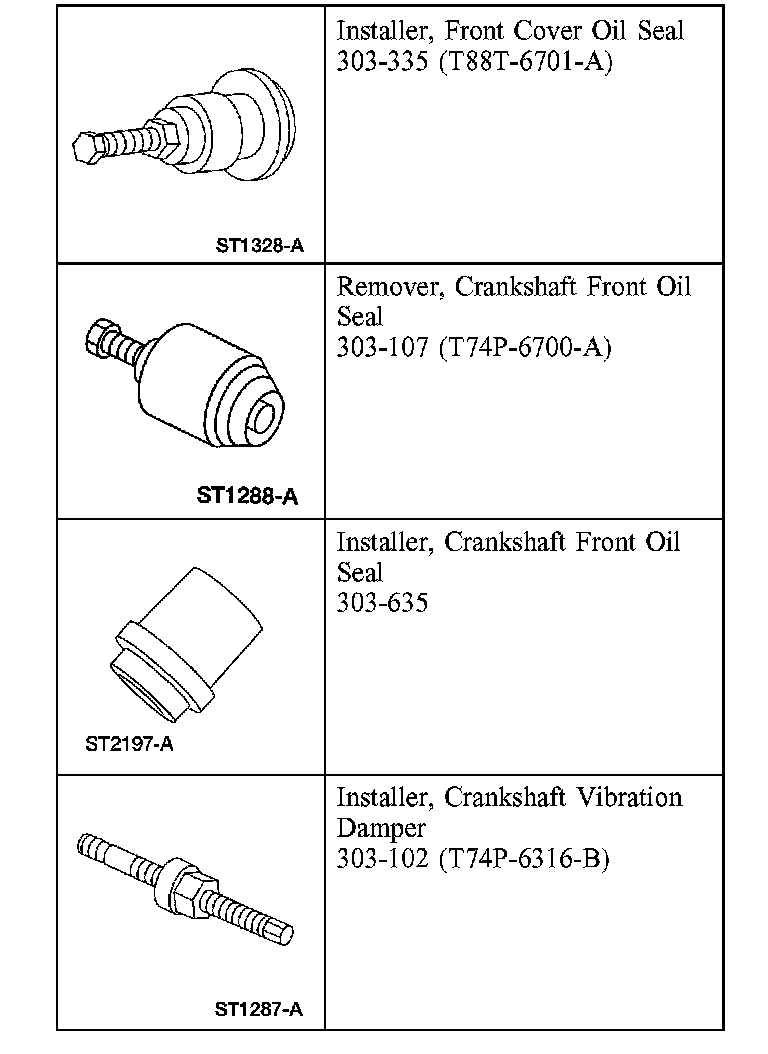

Special Tool(s)

Removal
1. Remove the crankshaft pulley.

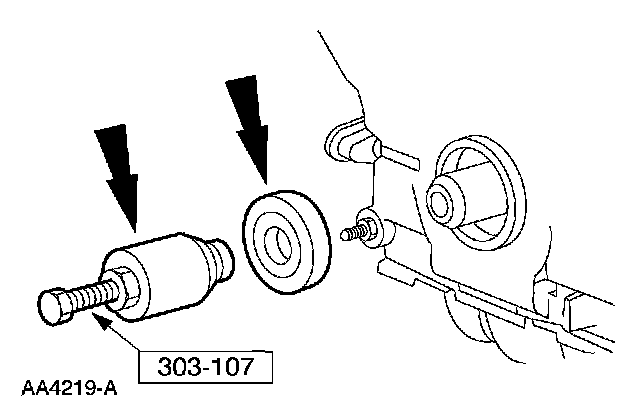

2. Using the special tool, remove the crankshaft front seal.

Installation

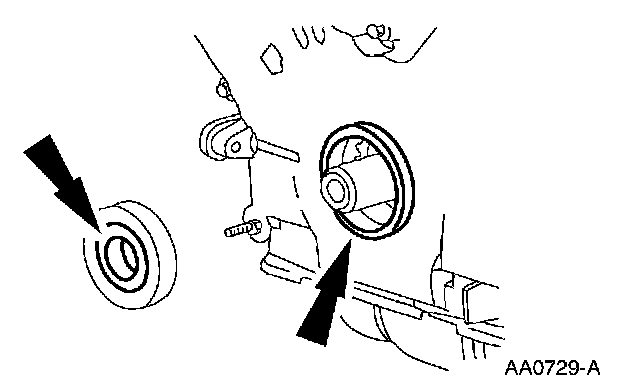

1. Lubricate the engine front cover and the crankshaft front seal inner lip with clean engine oil.

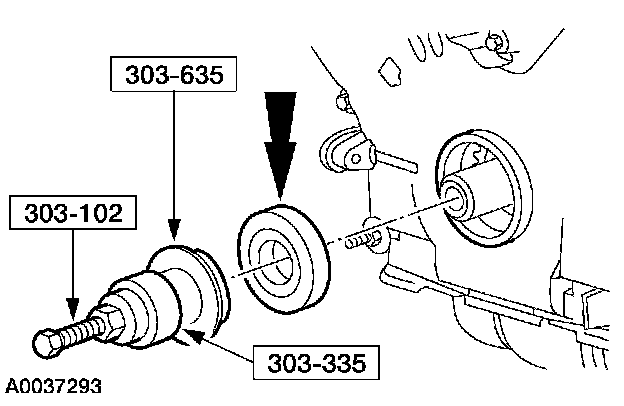

2. Using the special tool, install the crankshaft front seal.
3. Install the crankshaft pulley.
4. Install the auxiliary crankshaft pulley.
