Steps 51 - 72

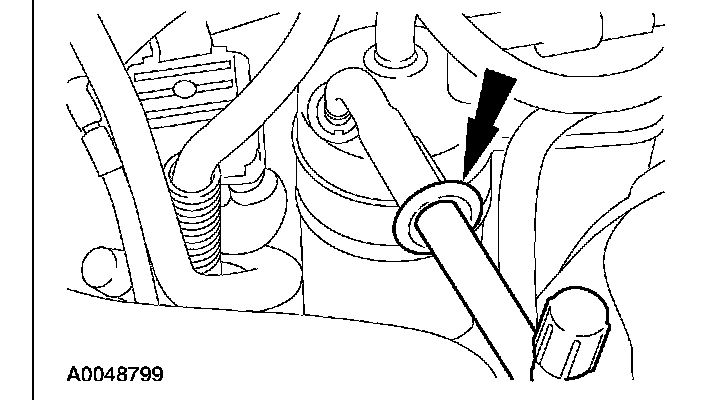

51. Install and connect the A/C suction tube.

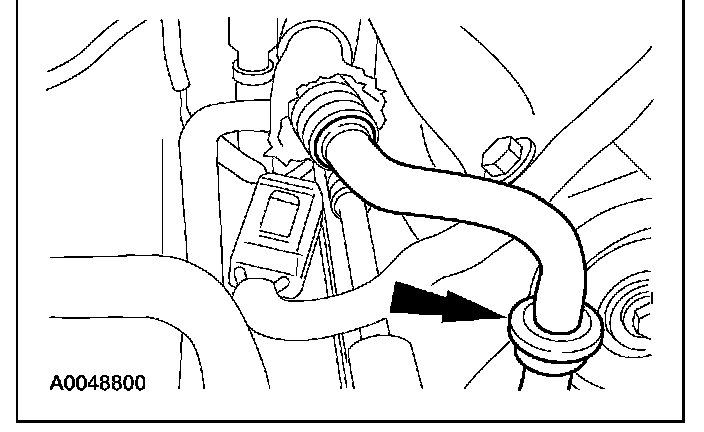

52. Connect the A/C tube at the accumulator.

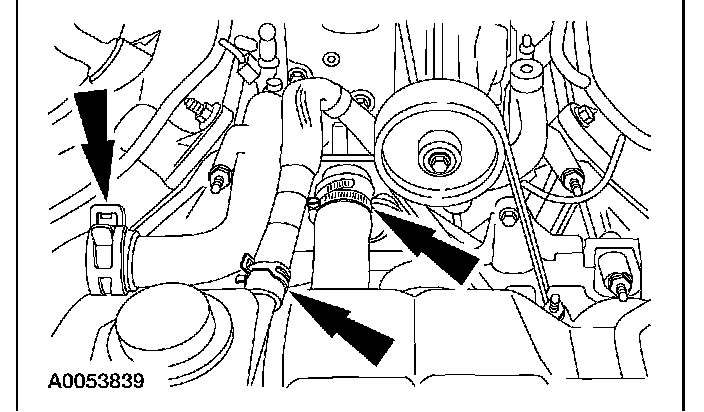

53. Connect the radiator upper hose, the radiator lower hose and the supercharger degas hose.

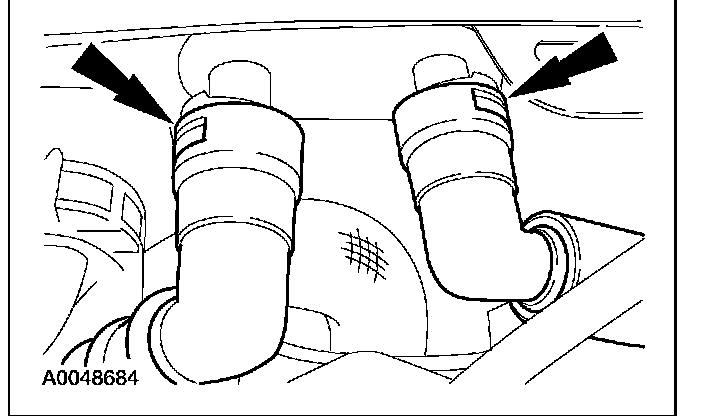

54. Connect the heater hoses.





55. Install the wiring harness to the dash panel.





56. Connect the vacuum hoses.





57. Connect the 16-pin and the 42-pin electrical connectors.





58. NOTE: Install a new gasket, if necessary.

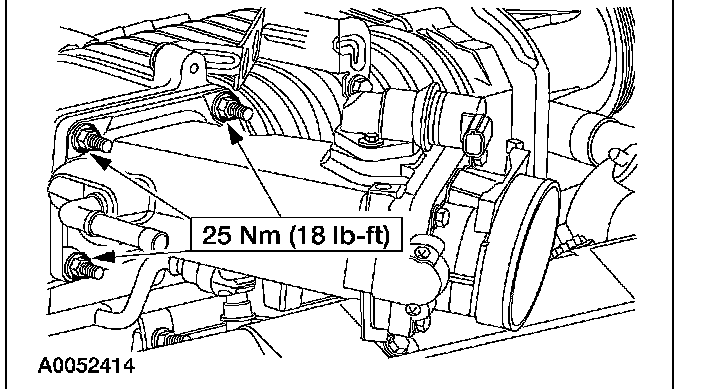

Install the throttle body and spacer assembly and the mounting nuts.





59. Position the accelerator and speed control cables.

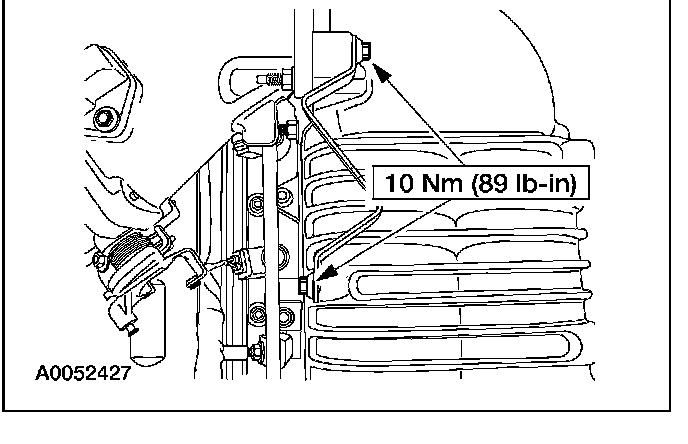

60. Install the accelerator cable bracket bolts.

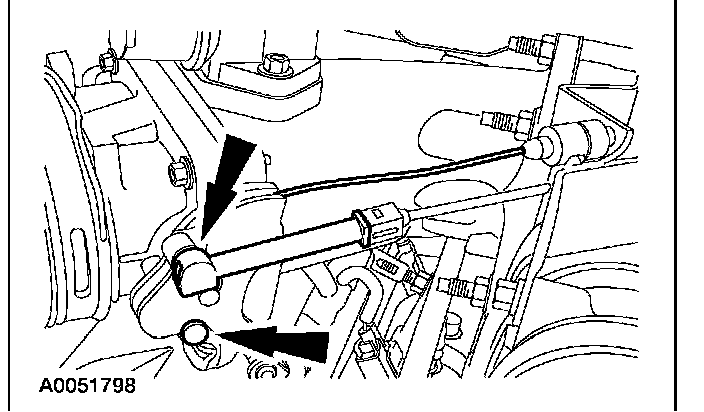

61. Connect the accelerator controls.
^ Connect the accelerator cable.
^ If equipped, connect the speed control cable.
62. Connect the fuel tube spring lock coupling.

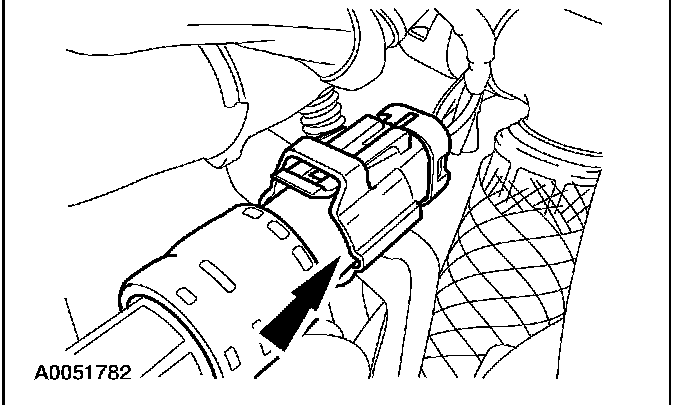

63. Connect the A/C pressure switch electrical connector.

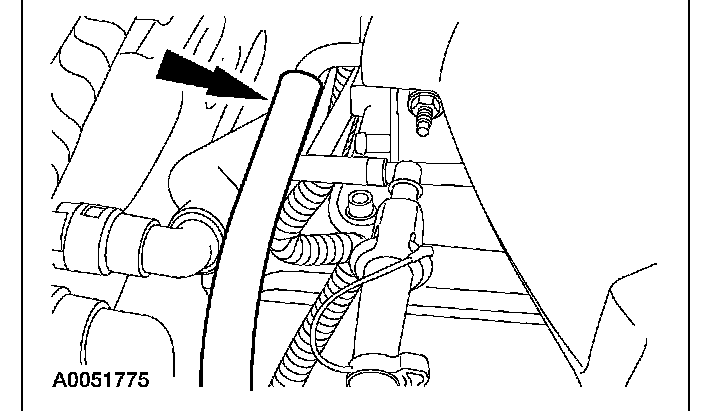

64. Connect the vacuum hose.

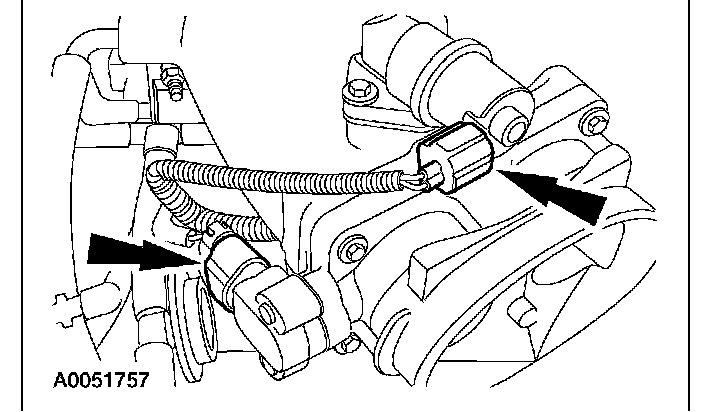

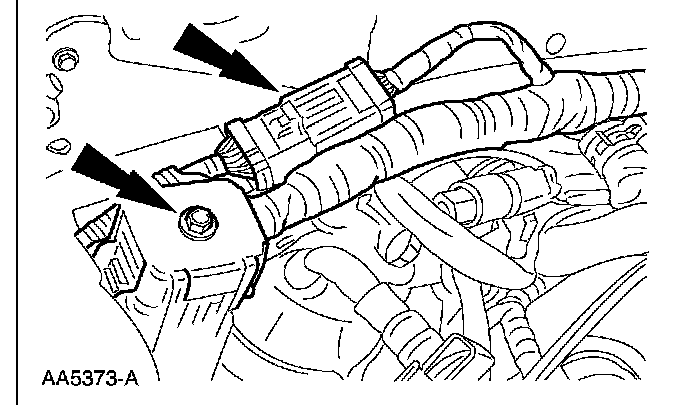

65. Connect the idle air control (IAC) and the throttle position (TP) electrical connectors.

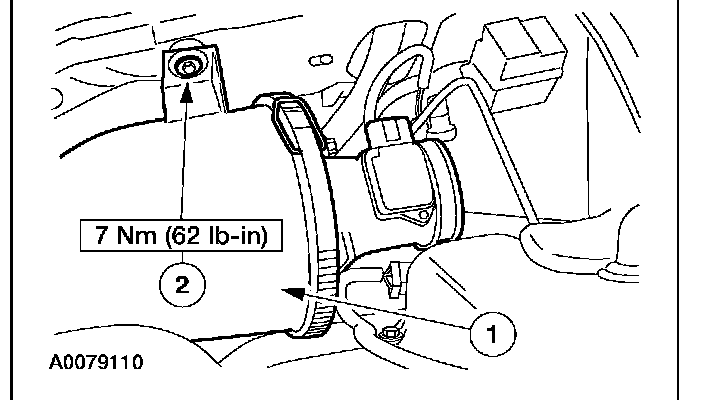

66. Install the air cleaner assembly.
1. Install the air cleaner assembly.
2. Install the bolt.

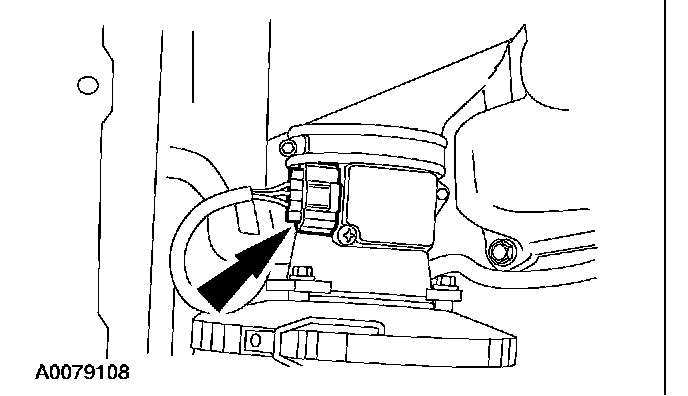

67. Connect the mass airflow (MAF) sensor electrical connector.

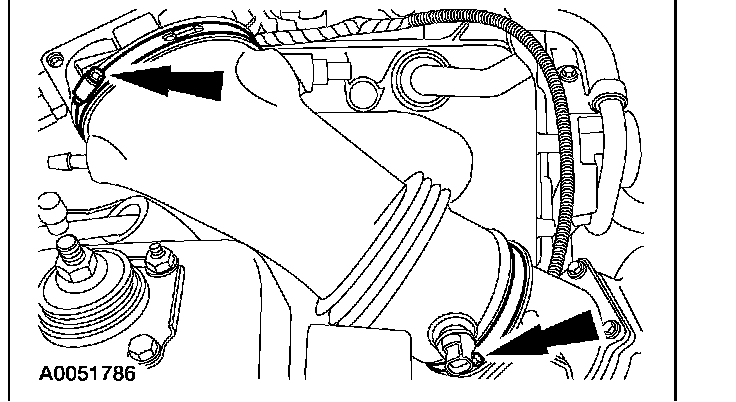

68. Install the air cleaner outlet pipe and tighten the clamps.

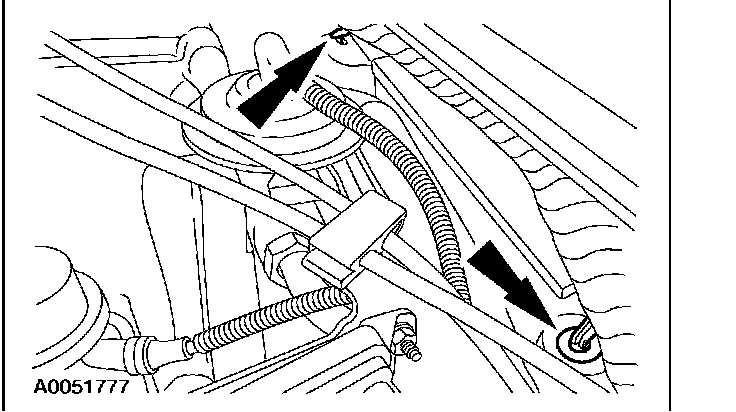

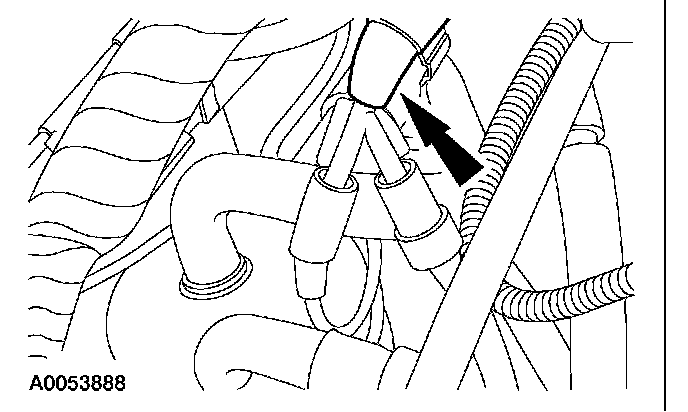

69. Connect the vacuum hose.

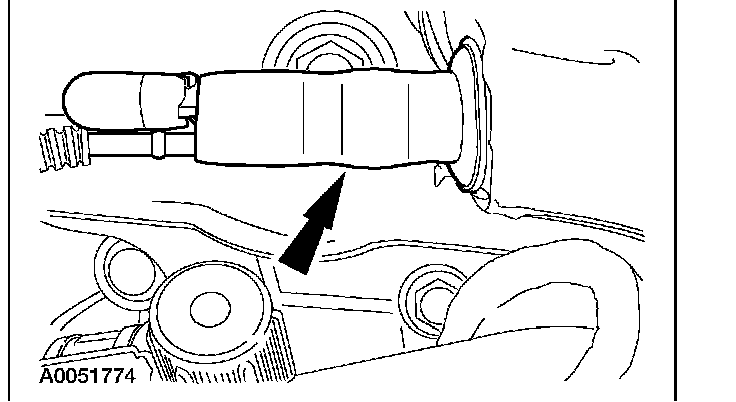

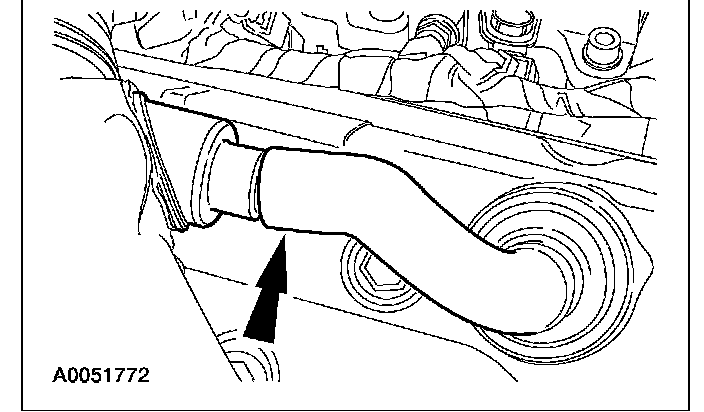

70. Connect the breather hose.

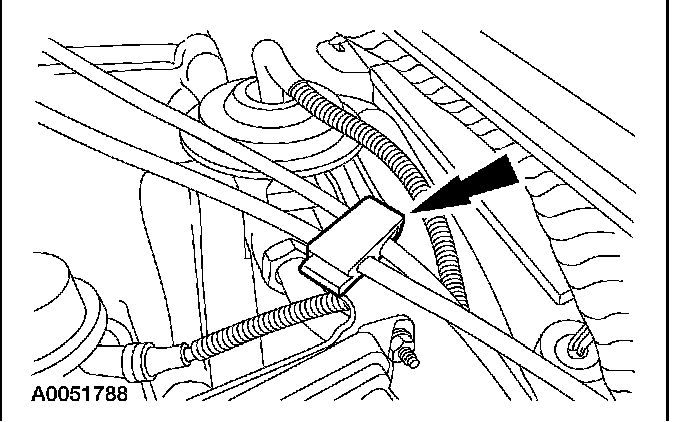

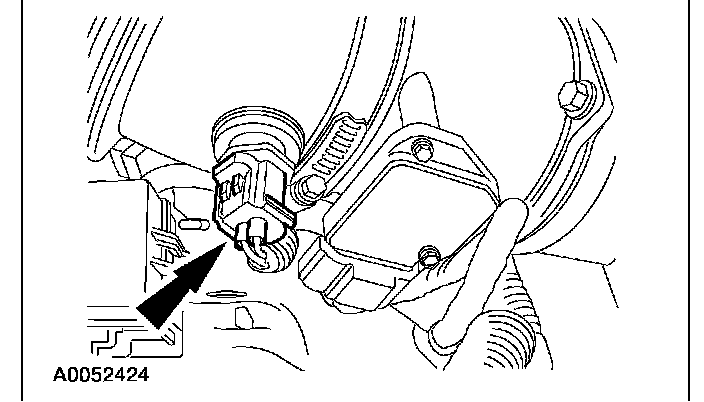

71. Connect the intake air temperature (IAT) sensor electrical connector.





72. NOTE: Use reference marks made during removal to aid in the installation.

Install the hood and the four nuts.





73. Install the hood-to-body ground strap.
74. Install the battery.
75. Fill the crankcase with clean engine oil and check that all other fluids are at the correct levels.
76. Fill and bleed the engine cooling system.
77. Fill and bleed the supercharger cooling system.
78. Fill and purge the power steering system.
79. Start the engine and check for leaks. Stop the engine and recheck the fluid levels.
80. Charge the A/C system.
