RH

Exhaust Manifold RH

Removal and Installation
1. Disconnect the battery ground cable.
2. Raise the vehicle.
3. Remove the dual converter Y-pipe.
4. Remove the starter.

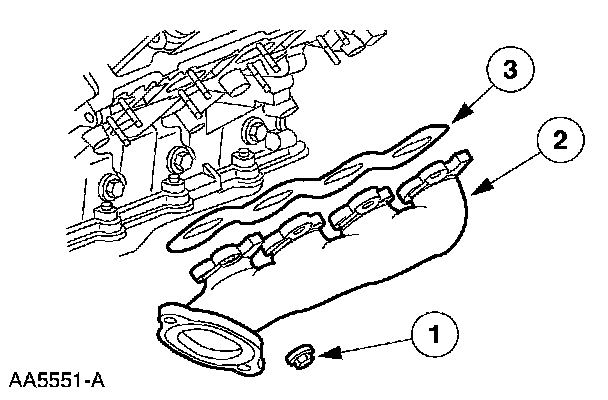

5. Remove the exhaust manifold.
1. Remove the nuts.
2. Remove the exhaust manifold.
3. Remove and discard the gasket.





6. To install, reverse the removal procedure.
^ Use a new exhaust manifold gasket.

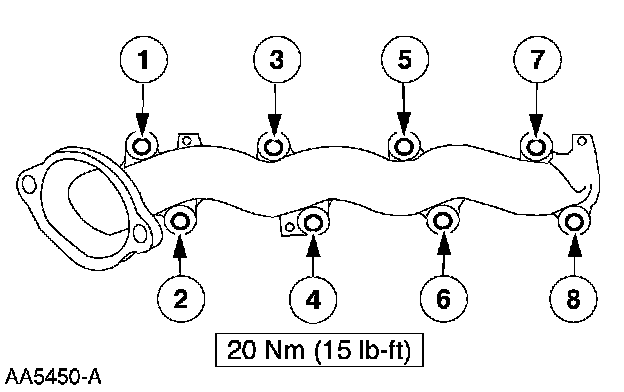

^ Tighten the exhaust manifold nuts in the sequence shown.
