Air Bypass Valve: Service and Repair

SUPERCHARGER BYPASS VACUUM SOLENOID

REMOVAL

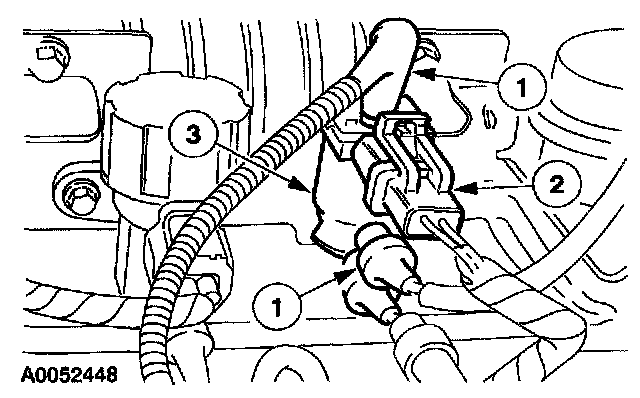

1. Remove the supercharger bypass vacuum solenoid.
1 Disconnect the vacuum hoses.
2 Disconnect the electrical connector.
3 Unclip the supercharger bypass vacuum solenoid from the vacuum accessory bracket.

INSTALLATION
1. To install, reverse the removal procedure.
