Accelerator Cable

ACCELERATOR CABLE

REMOVAL

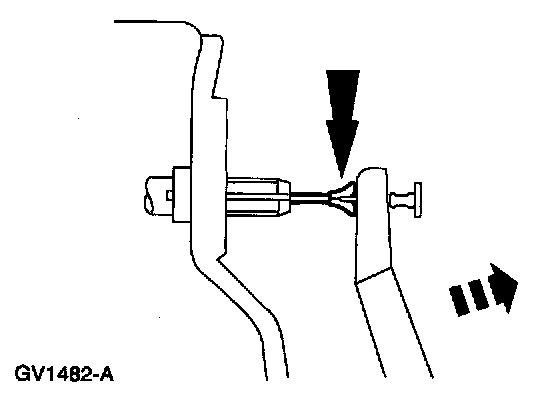

1. Push the accelerator cable nylon bushing out of the accelerator pedal and shaft arm.

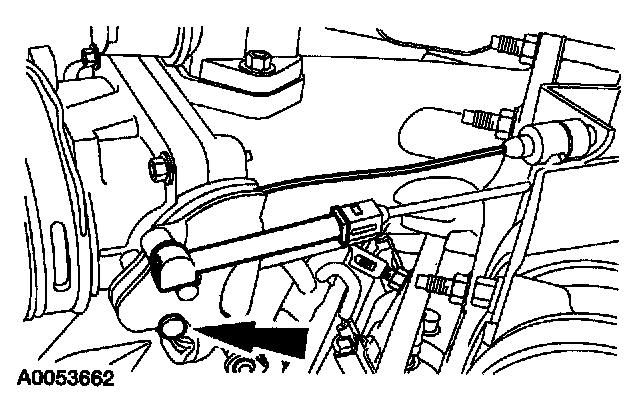

2. Disconnect the accelerator cable from the throttle cam.

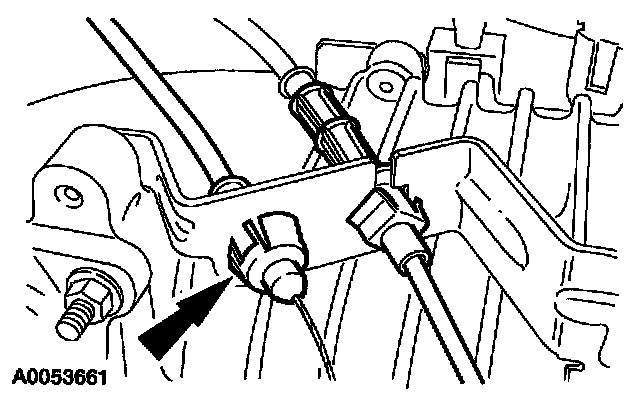

3. Depress the tabs and disconnect the accelerator cable from the bracket.

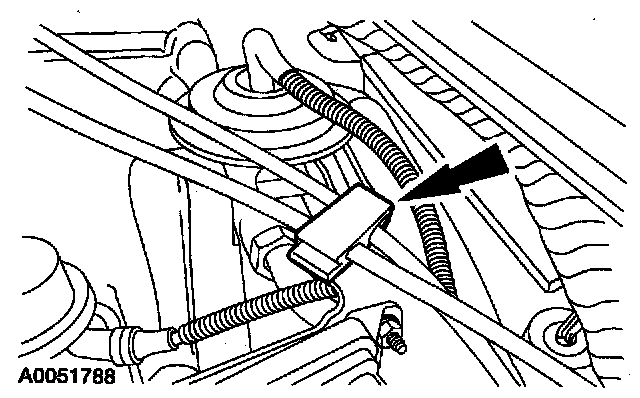

4. Release the clip and position the accelerator cable aside.

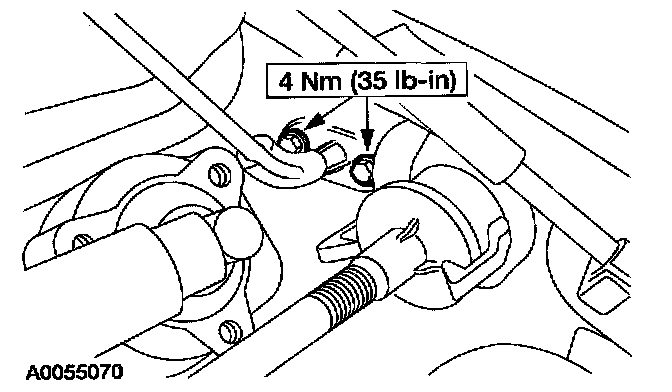

5. Remove the bolts and the accelerator cable.

INSTALLATION
1. To install, reverse the removal procedure.
