Accelerator Cable Bracket

ACCELERATOR CABLE BRACKET

REMOVAL

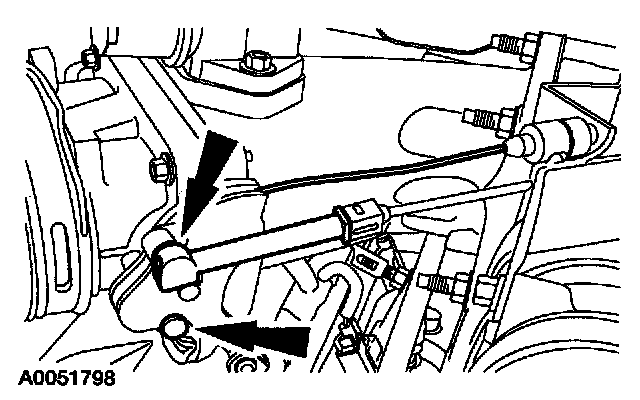

1. Disconnect the accelerator cable and speed control cable.

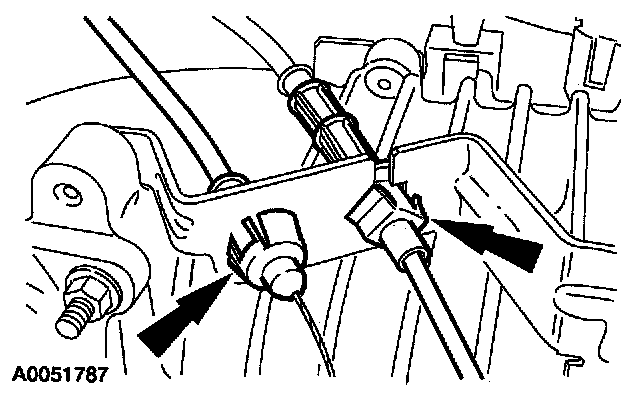

2. Depress the tabs and disconnect the accelerator cable and speed control cable from the accelerator cable bracket.







3. Remove the bolts and the accelerator cable bracket.

INSTALLATION
1. To install, reverse the removal procedure.
