Air Temperature Sensor ( Ambient / Intake ): Service and Repair

MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR

REMOVAL

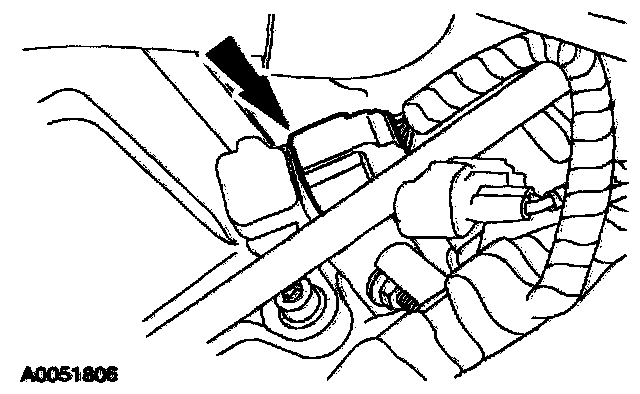

1. Disconnect the temperature manifold absolute pressure (T-MAP) sensor electrical connector.

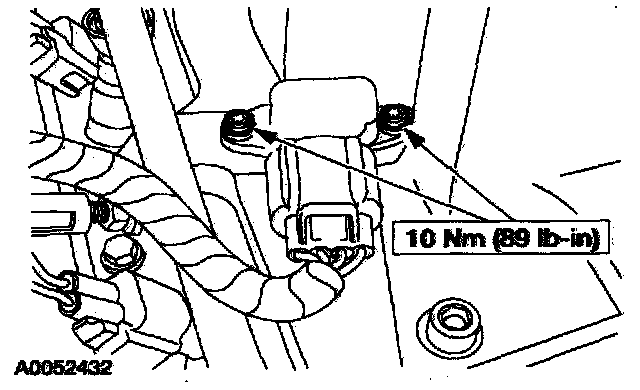

2. Remove the bolts and the T-MAP Sensor.

INSTALLATION
1. To install, reverse the removal procedure.
