Power Steering Pump

Pump - CII





Special Tool(s)

Removal and Installation

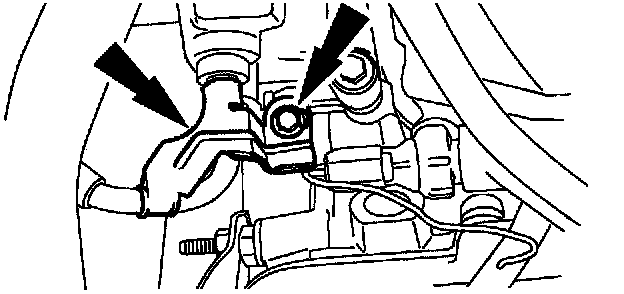

1. Disconnect the power steering hose. Remove and discard the seal ring.

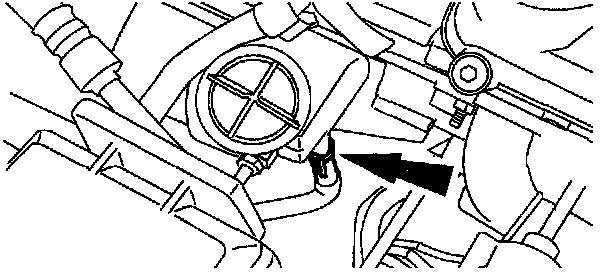

2. Disconnect the power steering hose.
3. Remove the pulley.

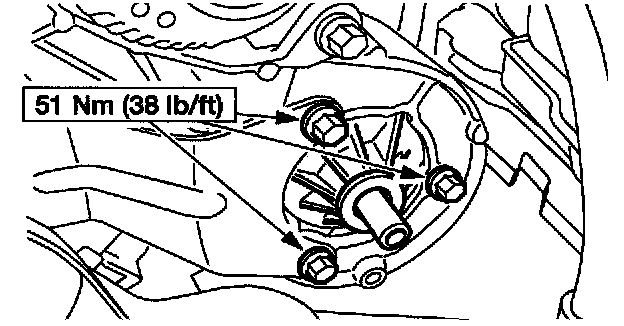

4. Remove bolts and the power steering pump.








5. To install, reverse the removal procedure.
^ Using the special tool, install a new seal ring.
6. Fill and leak check the power steering system.

Pump - CIII





Special Tool(s)

Removal and Installation
1. Remove the pulley.

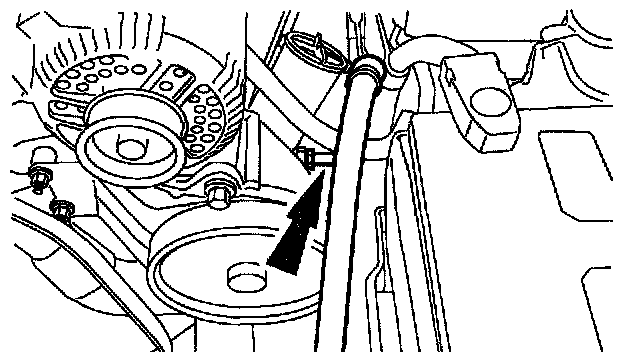

2. Remove the bolt and bracket.

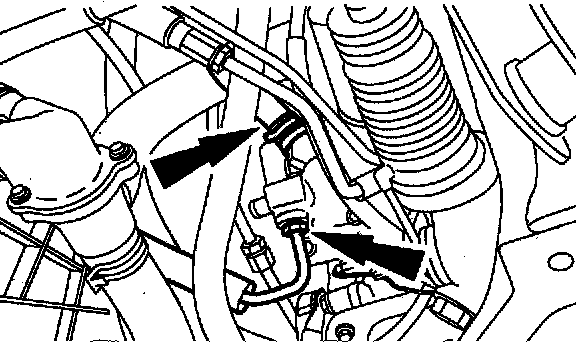

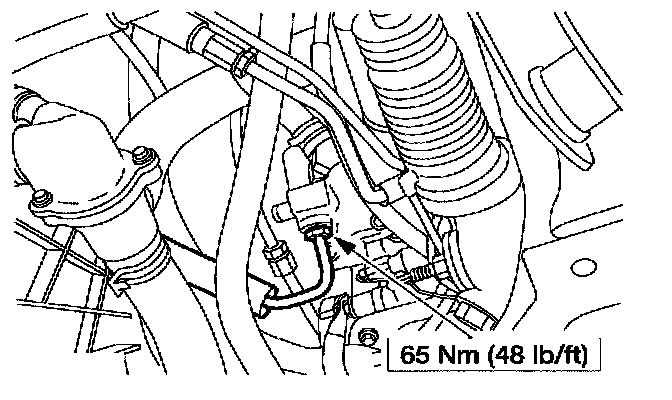

3. Disconnect the power steering hoses. Remove and discard the seal ring.





4. Remove bolts and the power steering pump.








5. To install, reverse the removal procedure.
^ Using the special tool, install a new seal ring.
6. Fill and leak check the power steering system.
