Rear Knuckle Alignment Link: Service and Repair

Toe Link-Cobra

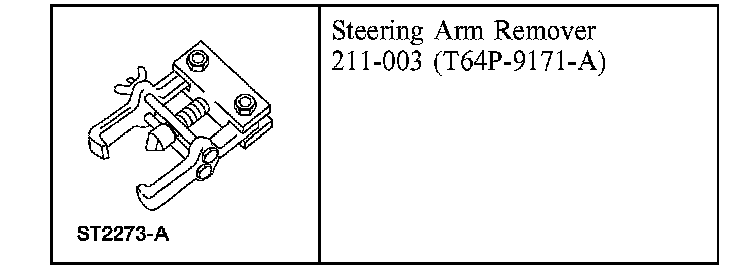

Special Tool(s)

Removal

CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. A new part with the same part number must be installed if installation becomes necessary. If substitution is necessary, the part must be of the same finish and property class. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

1. Raise the vehicle on a hoist.
2. Remove the wheel and tire assembly.
3. Remove the rear brake disc.
4. Support the lower suspension arm and bushing with a jack stand.

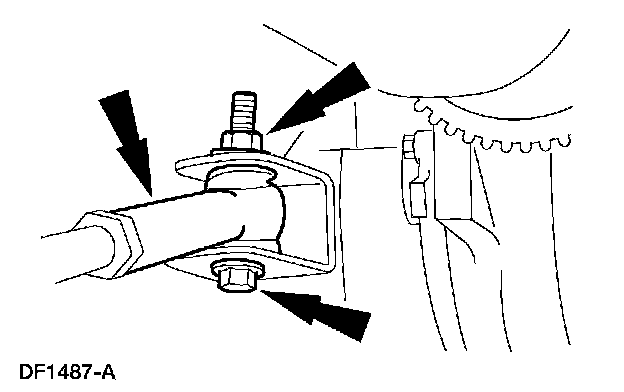

5. Remove the nut and bolt and disconnect the shock absorber from the lower suspension arm and bushing. Discard the nut and bolt.

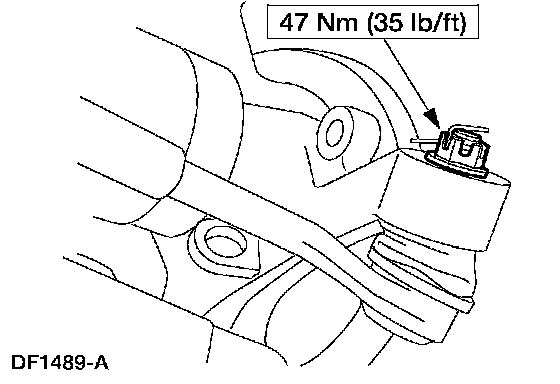

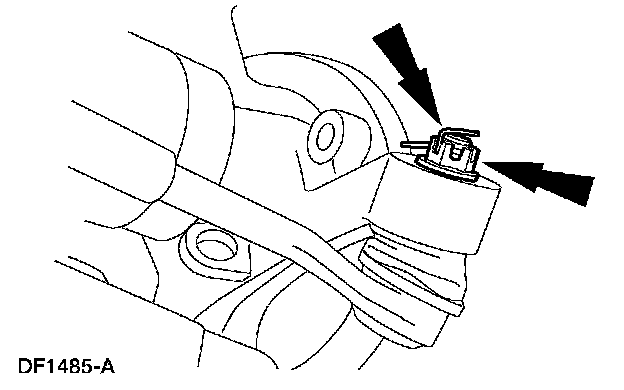

6. Remove and discard the cotter pin and nut.





7. CAUTION: Do not strike the toe link or the knuckle to disconnect the toe link. The toe link or the knuckle can be damaged.

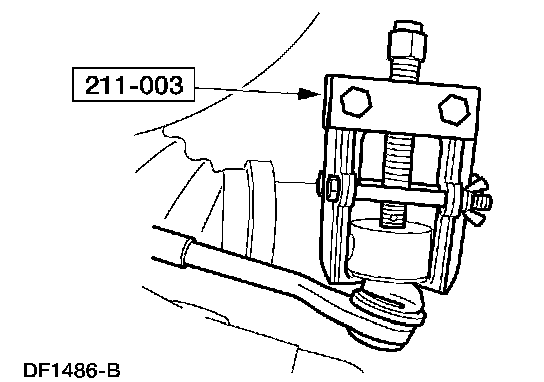

Using the special tool, disconnect the toe link from the knuckle.

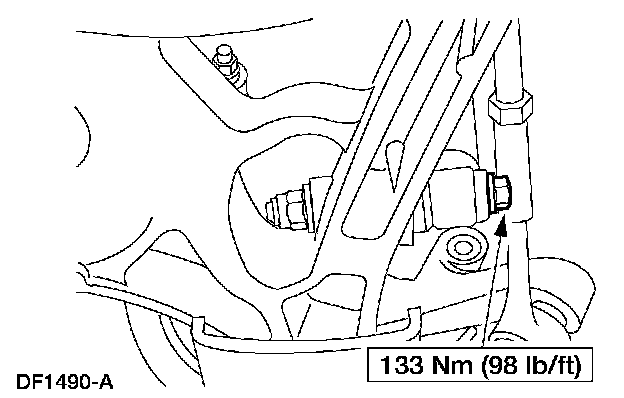

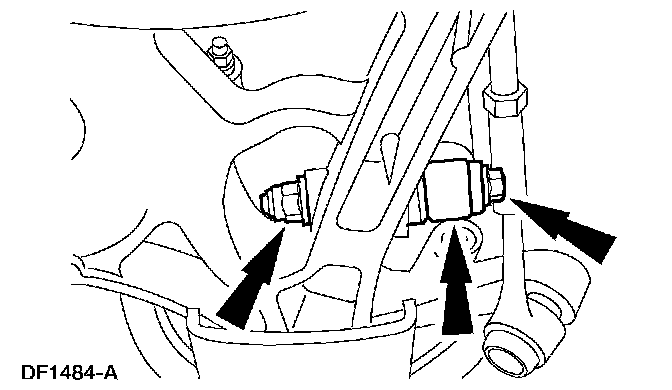

8. Remove the nut, bolt and the toe link. Discard the bolt and nut.

Installation











1. CAUTION: Make sure the hardened washer is installed between the lower suspension arm and bushing and the shock absorber. Failure to do so can result in damage and failure of the lower suspension arm and bushing.

NOTE: The toe link bolt and nuts are of a torque prevailing design. A new bolt and new nuts must be installed.

NOTE: Use a new cotter pin.

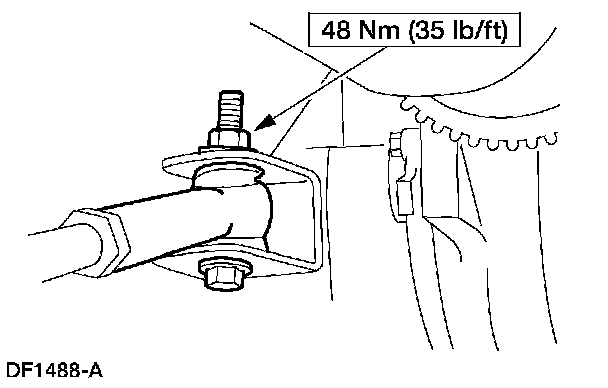

To install, reverse the removal procedure.
2. Check wheel alignment. Adjust as necessary.
