Camshaft: Service and Repair

Camshaft

Removal and Installation
1. Remove the timing chains.
2. Remove the roller followers.

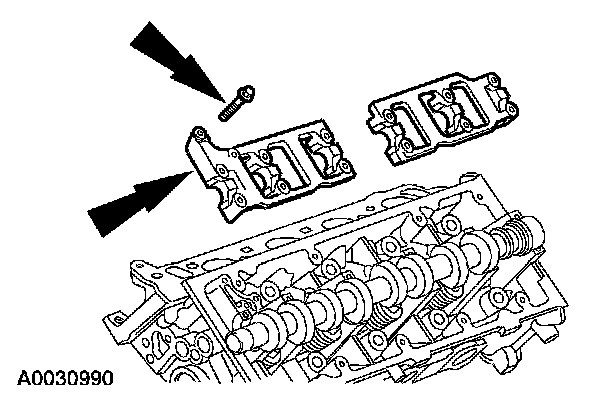

3. Remove the bolts and camshaft bearing caps.

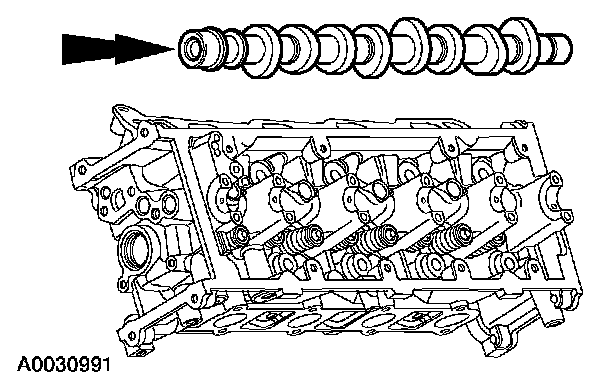

4. Remove the camshaft.





5. NOTE: Tighten the camshaft bearing cap bolts in the sequence shown.

To install, reverse the removal procedure.
