LH

Valve Cover LH

Removal and Installation

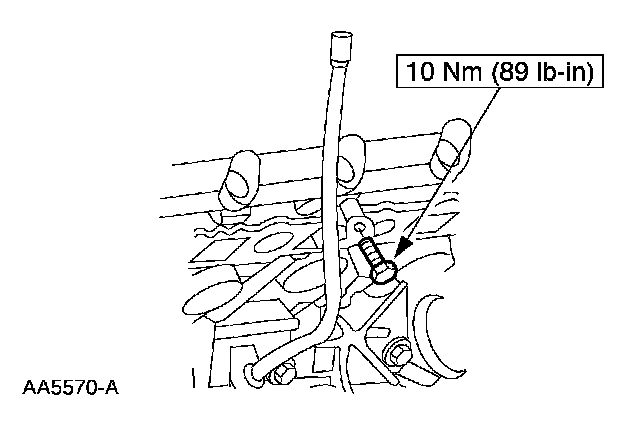

1. Position the oil level tube out of the way.

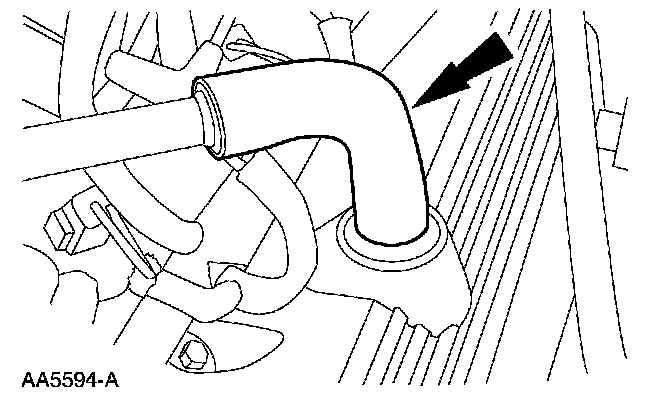

2. Disconnect the breather tube.

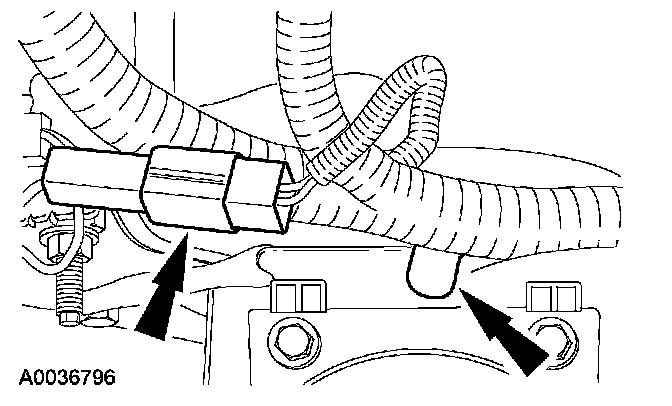

3. Separate the engine wiring harness in the locations shown.

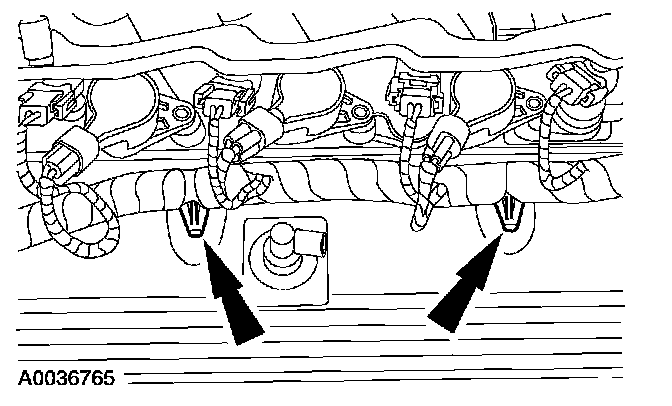

4. Disconnect the engine wiring harness retainer and position it aside.

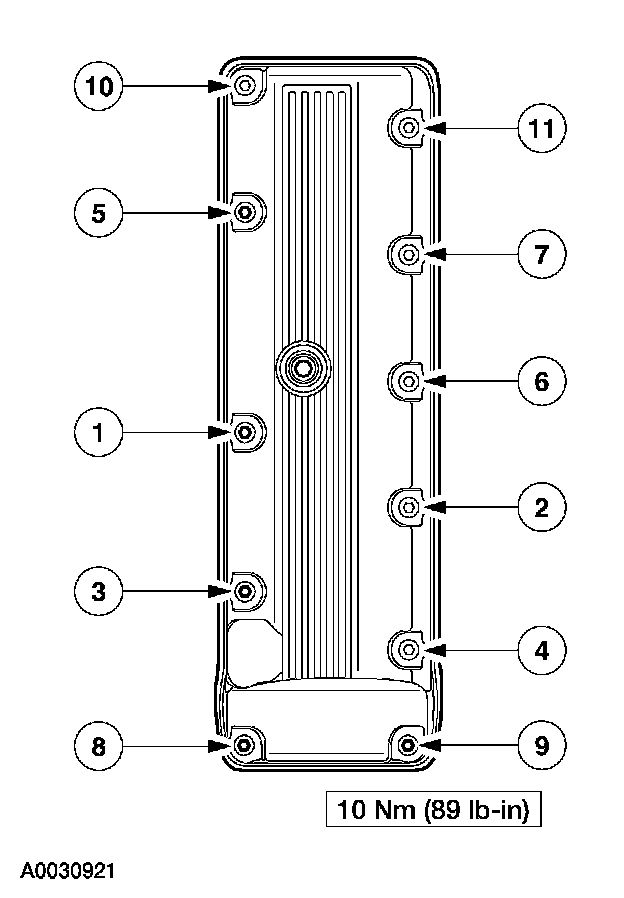

5. Remove the bolts, studs and the valve cover in the sequence shown.
^ Inspect and clean the sealing surfaces.

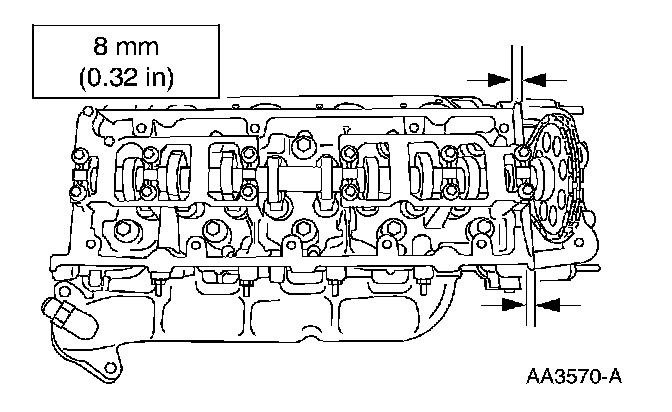

6. NOTE: Apply an eight millimeter bead of silicone gasket and sealant at the intersection of the engine front cover and the cylinder head.
