Valve Cover RH

Removal and Installation

1. Remove the air cleaner outlet tube.

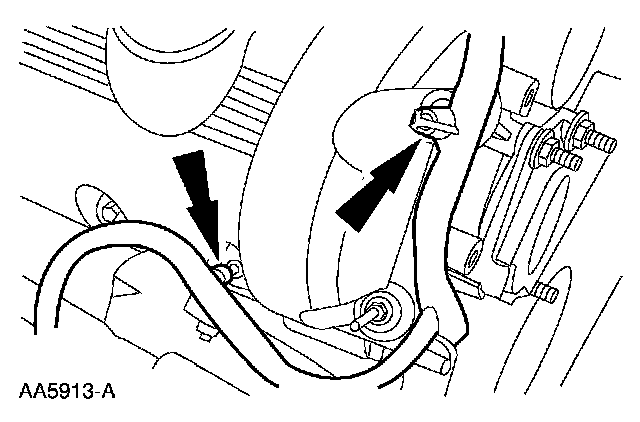

2. Disconnect the fuel line.





3. Separate the engine wiring harness from the valve cover whirls

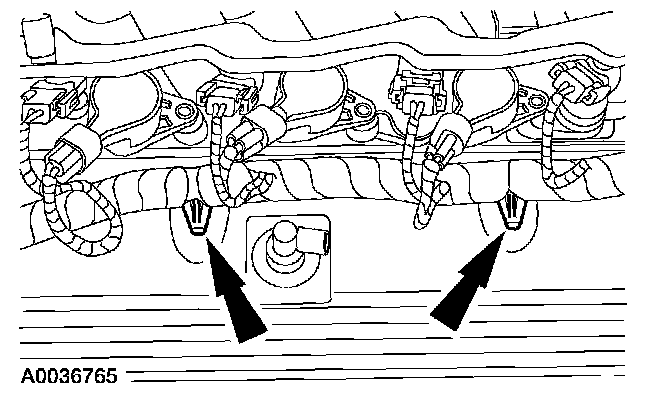

4. Separate the engine wiring harness from the valve cover studs.

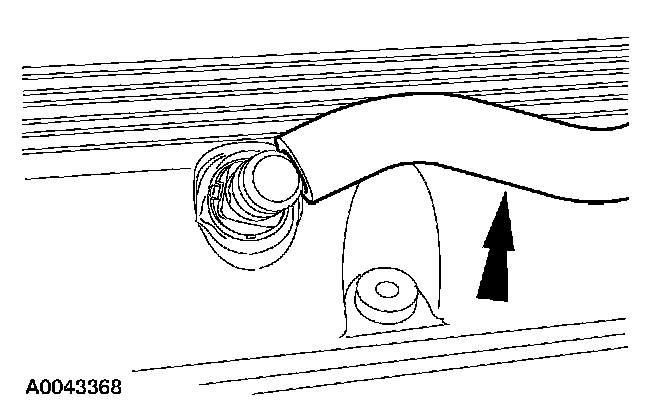

5. Remove the positive crankcase ventilation (PCV) hose from the valve cover and position aside.
6. Raise and support the vehicle.

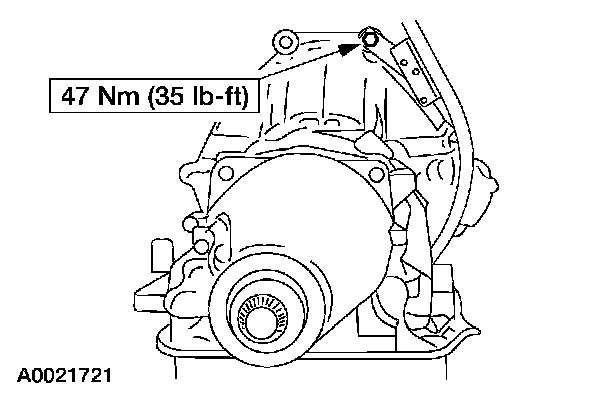

7. Remove the bolt and position the transmission filler tube aside.

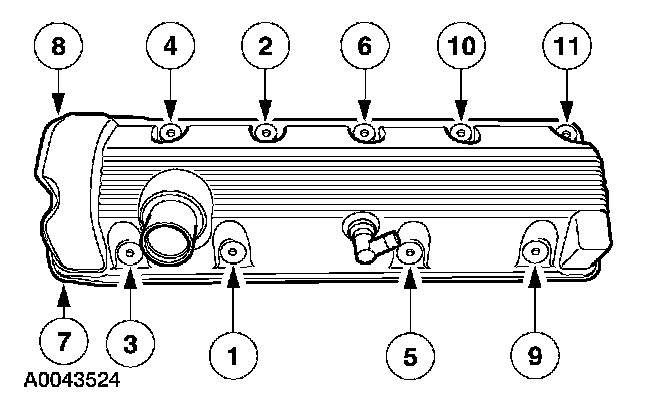

8. Remove the bolts, studs and the valve cover in the sequence shown.
^ Clean and inspect the sealing surfaces.

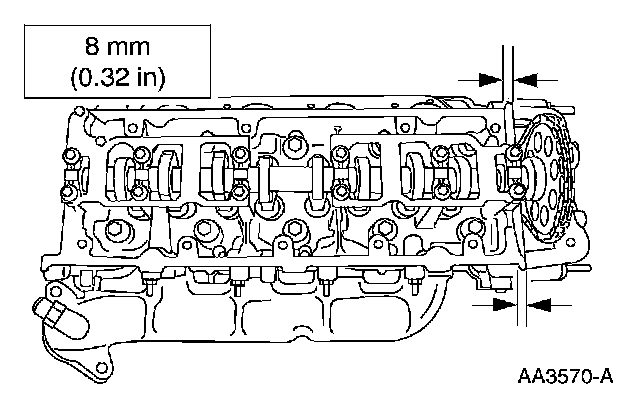

9. NOTE: Apply an eight millimeter bead of silicone gasket and sealant at the intersection of the engine front cover and the cylinder head.

To install, reverse the removal procedure.
