Engine Mount LH

Engine Mount LH

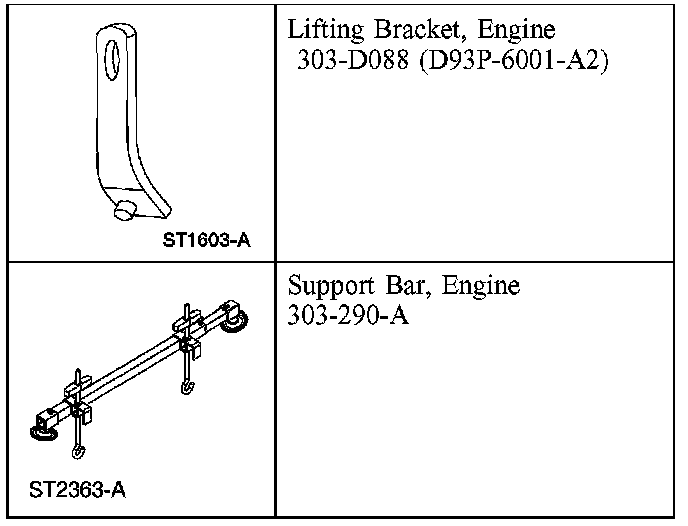

Special Tool(s)

Removal

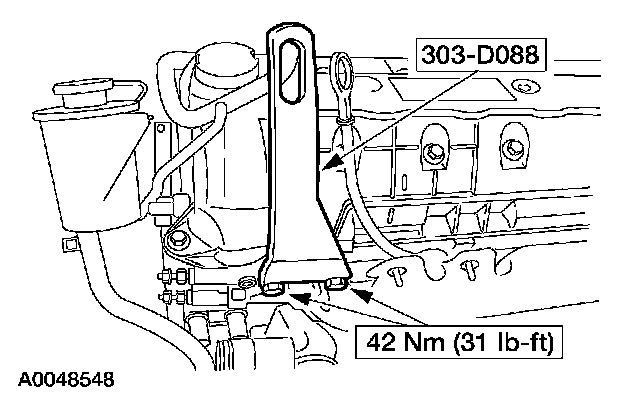

1. Install the special tool.

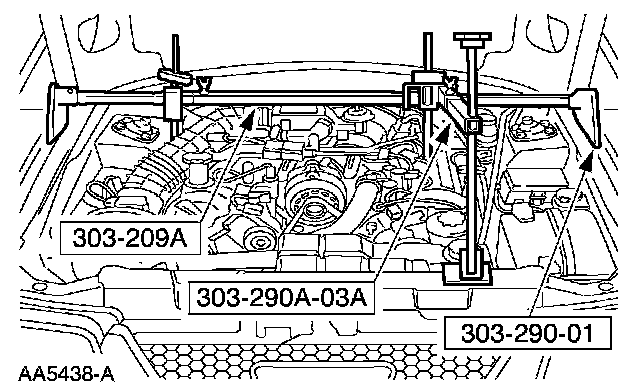

2. Install the special tools.
3. Raise and support the vehicle.

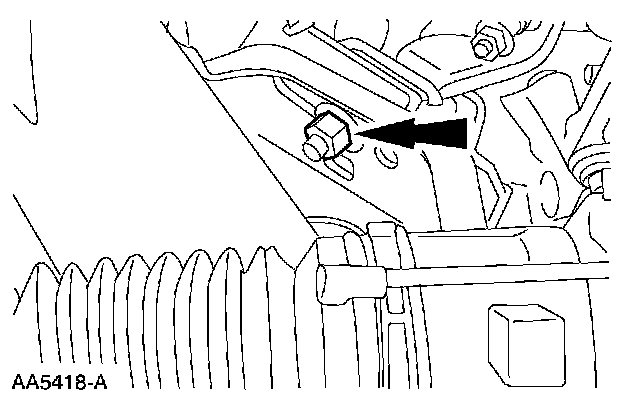

4. Remove the two engine mount nuts.
5. Lower the vehicle.





6. Using the special tools, raise the engine.
7. Raise and support the vehicle.

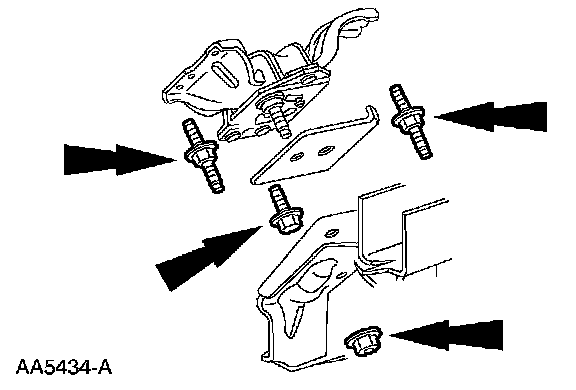

8. Remove the engine mount.

Installation

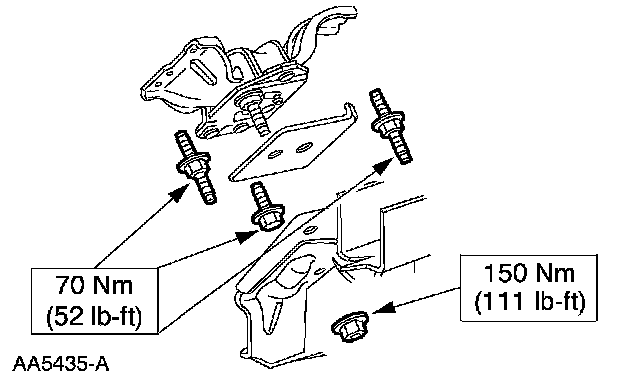

1. To install, reverse the removal procedure.
