Engine Mount RH

Engine Mount RH

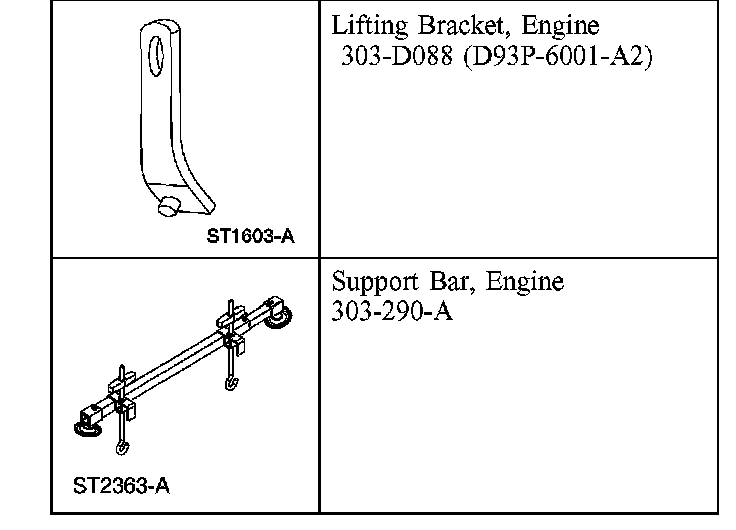

Special Tool(s)

Removal

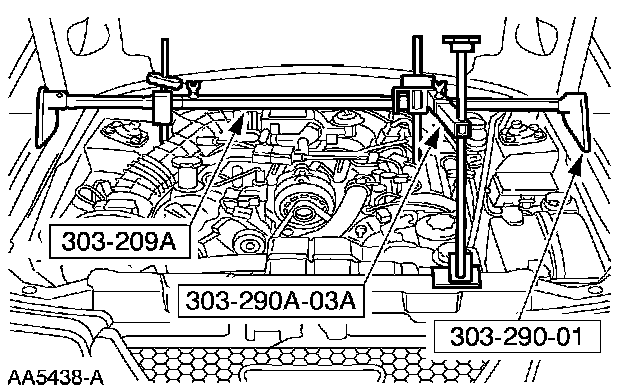

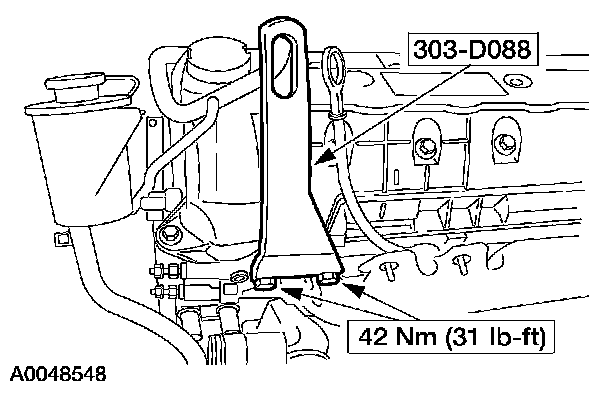

1. Install the special tool.

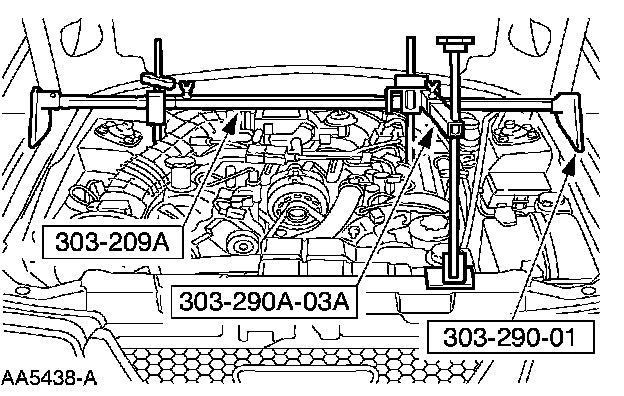

2. Install the special tools.

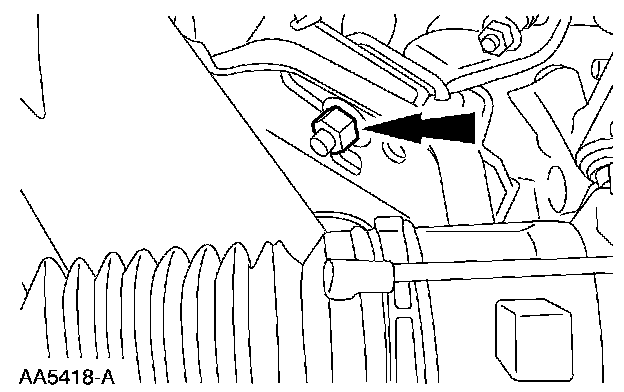

3. Remove the starter.

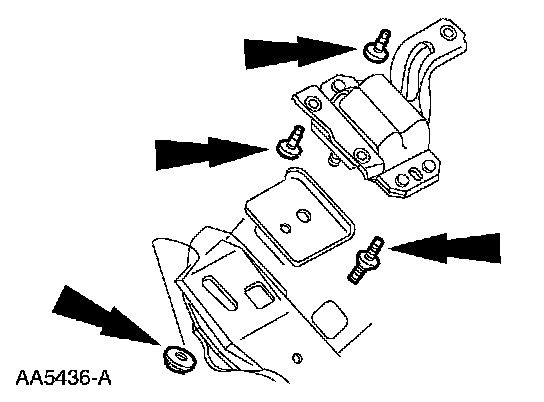

4. Remove the two engine mount nuts.
5. Lower the vehicle.





6. Using the special tools, raise the engine.
7. Raise and support the vehicle.





8. Remove the engine mount.

Installation

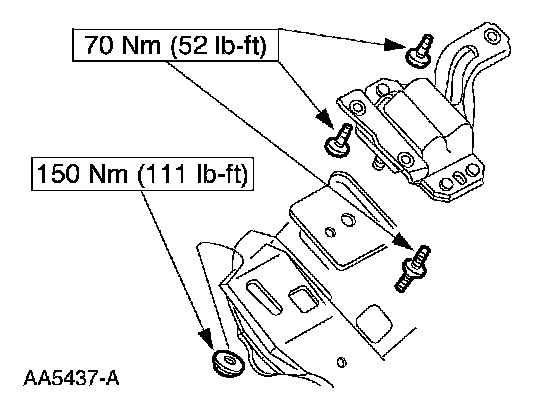

1. To install, reverse the removal procedure.
