Oil Pan: Service and Repair

Oil Pan

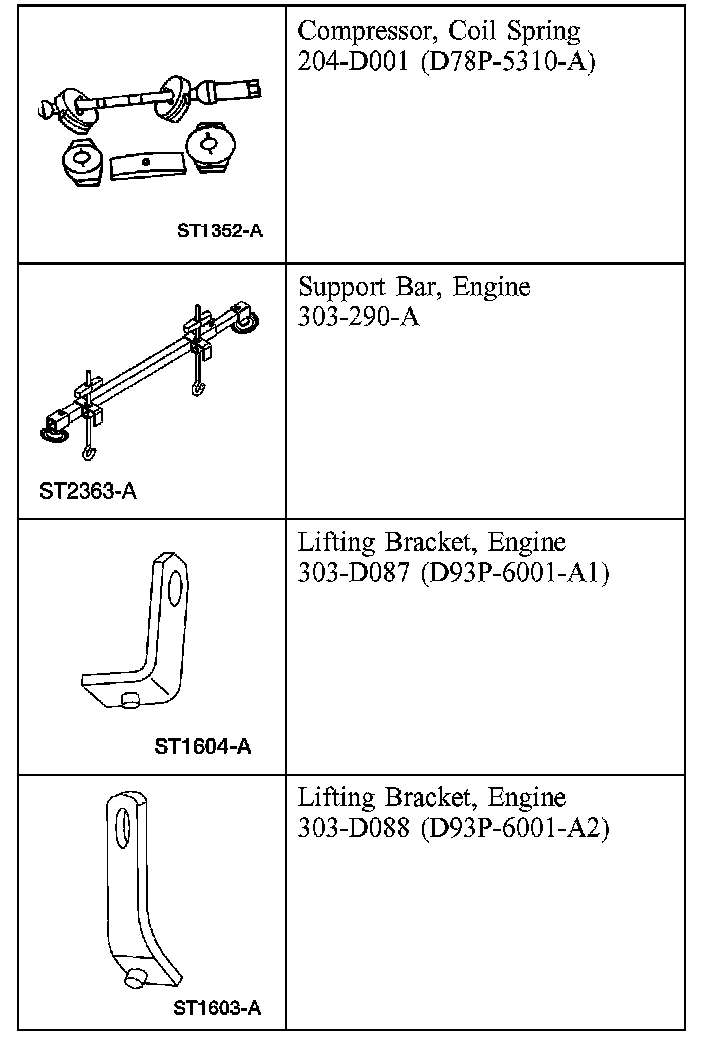

Special Tool(s)

Removal
1. Disconnect the battery ground cable.
2. Remove the air cleaner outlet tube.

3. Remove the radiator sight shield.

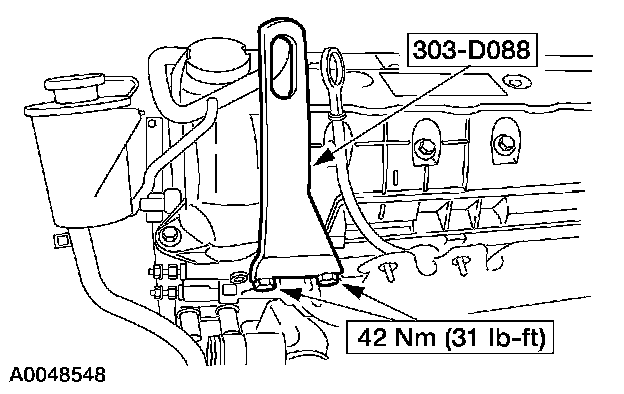

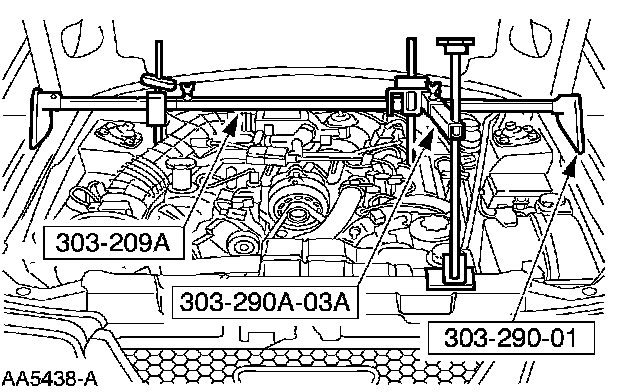

4. Install the special tool.

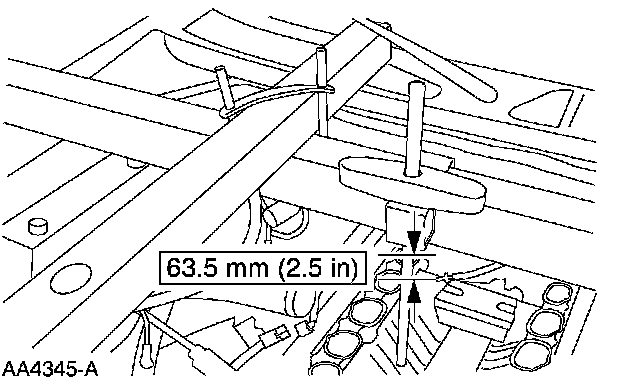

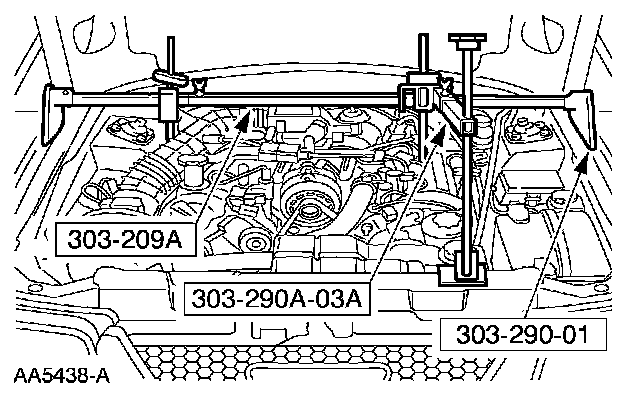

5. Using the special tools, support the engine.
6. Raise and support the vehicle.

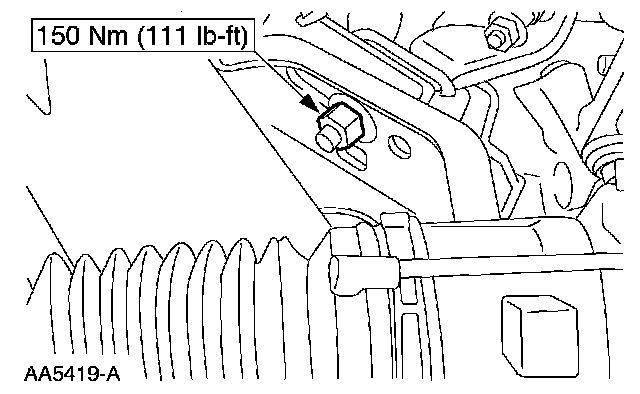

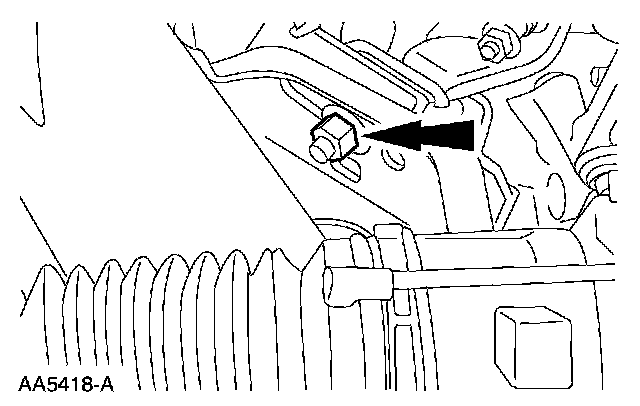

7. Remove the two engine mount nuts.
8. Lower the vehicle.

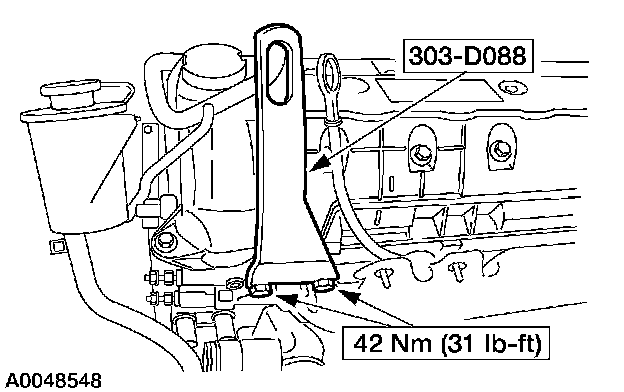

9. Using the special tool, raise the engine.
10. Raise and support the vehicle.





11. Drain the engine oil.

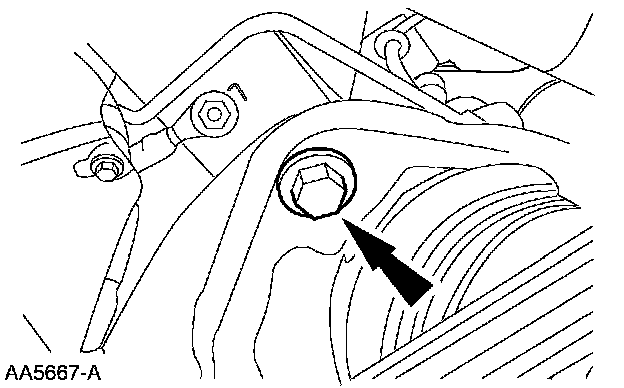

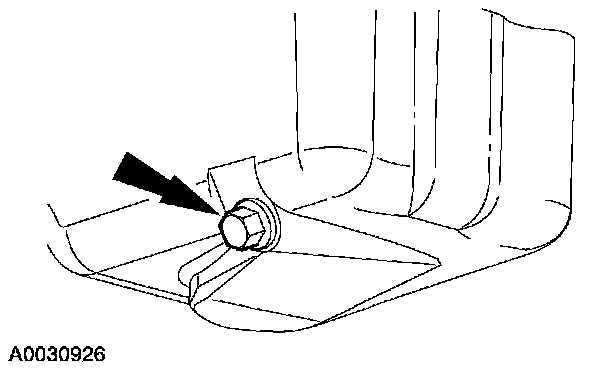

^ Remove the oil pan drain plug.

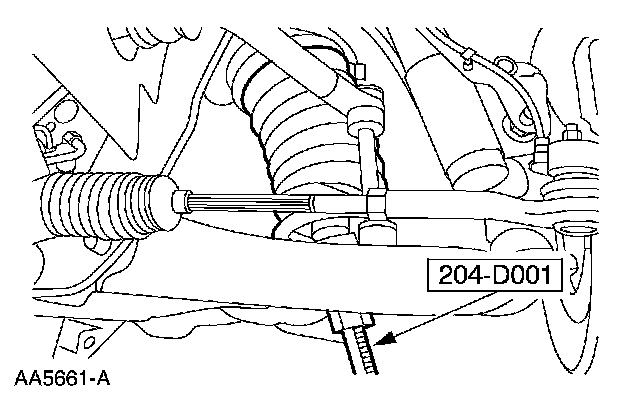

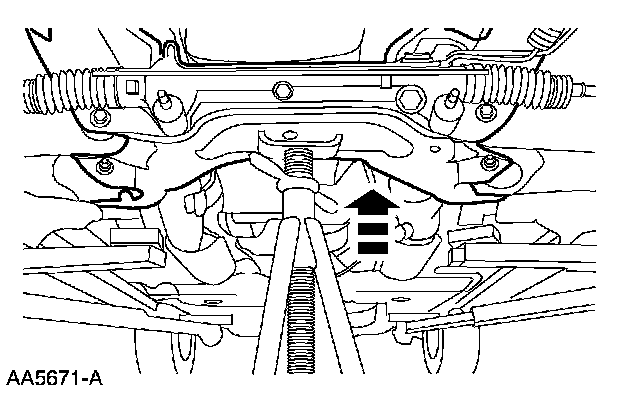

12. Using the special tool, compress the front coil springs.

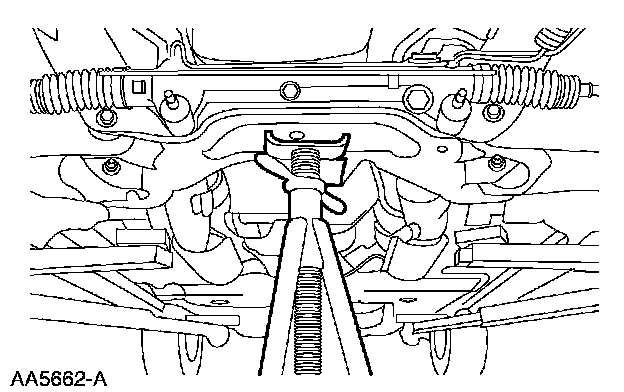

13. Position a safety stand.

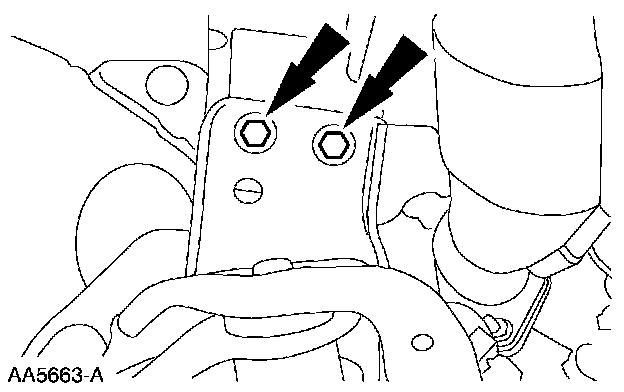

14. Remove the four engine mount bolts.





15. NOTE: Do not completely remove the bolts.

Loosen the front subframe bolts.

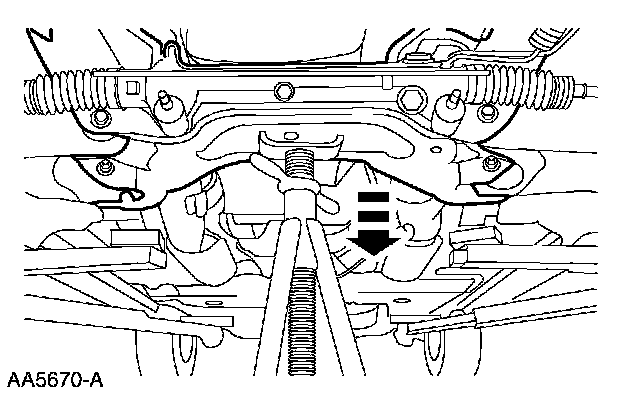

16. Thrower the turret subframe.





17. NOTE: Be careful when removing the oil pan gasket. It may be reusable. Inspect the oil pan gasket for damage.

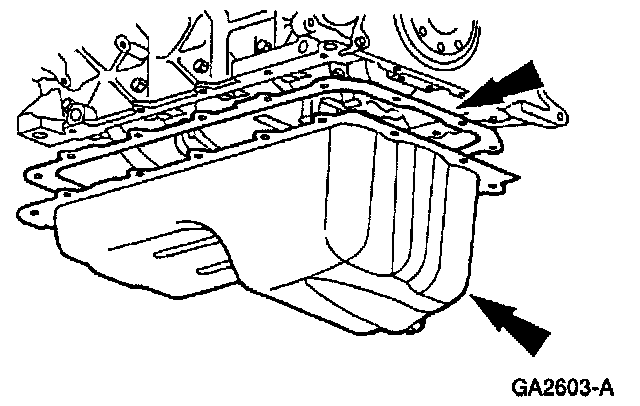

Remove the oil pan and gasket.

Installation

1. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

Clean and inspect the mating surfaces.





2. NOTE: If the oil pan is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure can result in future oil leakage.

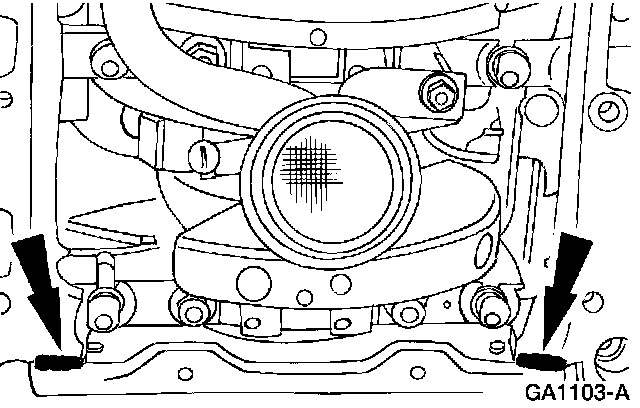

Apply the silicone gasket and sealant at the rear oil seal retainer-to-cylinder block sealing surface.





3. NOTE: If the oil pan is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure can result in future oil leakage.

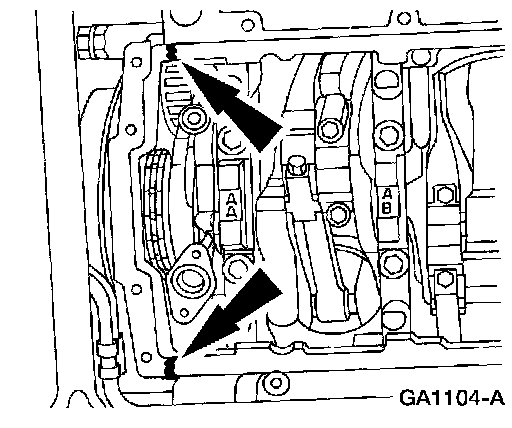

Apply the silicone gasket and sealant at the engine front cover-to-cylinder block mating surface.





4. Install the oil pan and gasket and loosely install the bolts.

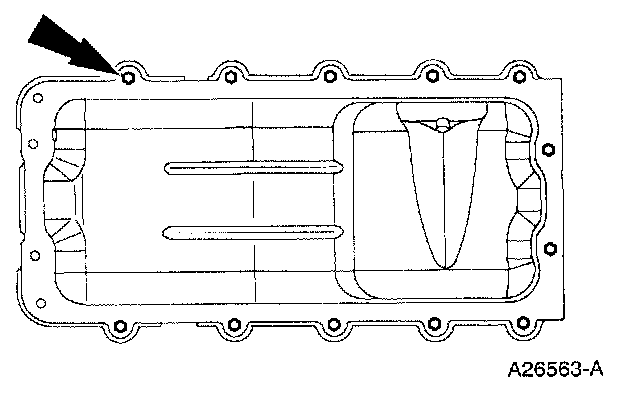

5. Tighten the bolts in the sequence shown in three stages.
^ Stage 1: Tighten to 2 Nm (18 inch lbs.).
^ Stage 2: Tighten to 20 Nm (15 ft. lbs.).
^ Stage 3: Tighten an additional 60 degrees.

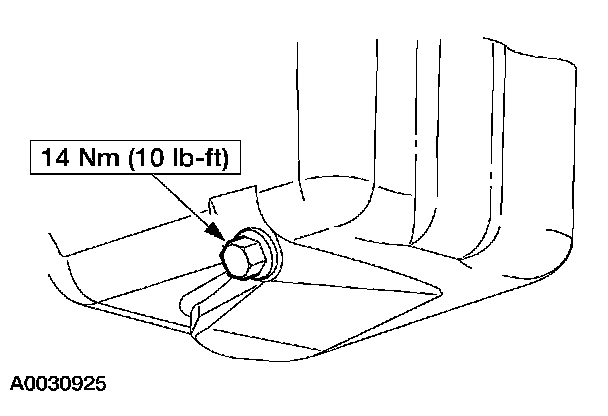

6. Install the oil pan drain plug.





7. Raise the front subframe into position.

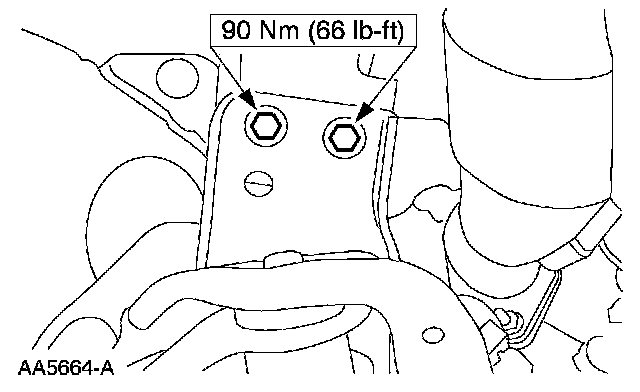

8. Install the two upper subframe bolts.





9. Install the two lower subframe bolts.

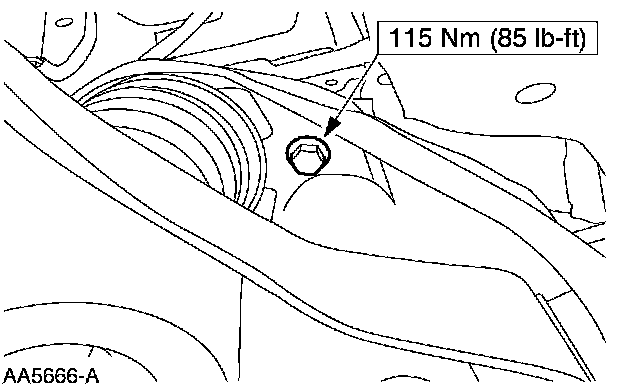

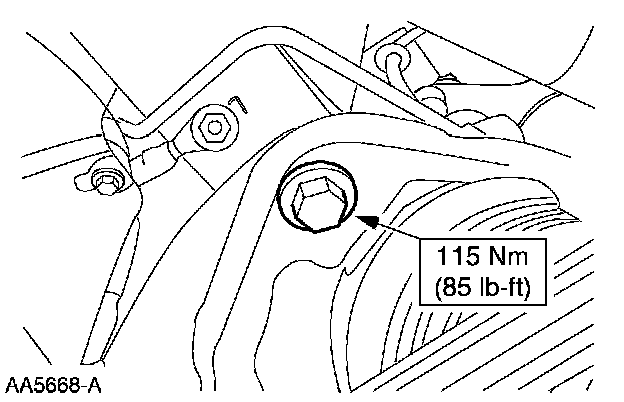

10. Install the engine mount bolts.

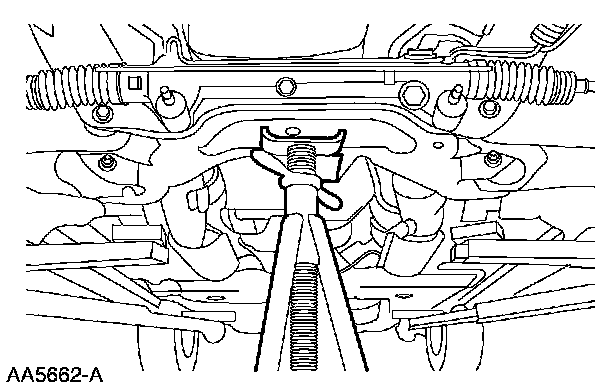

11. Position the safety stand aside.





12. Using the special tool, release the tension from the front coil springs and remove the special tool.





13. Install the engine mount nuts.
14. Lower the vehicle.





15. Using the special tools, lower the engine and remove the special tool.





16. Remove the special tool.
17. Fill the engine crankcase with clean engine oil.
