Front Crankshaft Seal: Service and Repair

Crankshaft Front Oil Seal

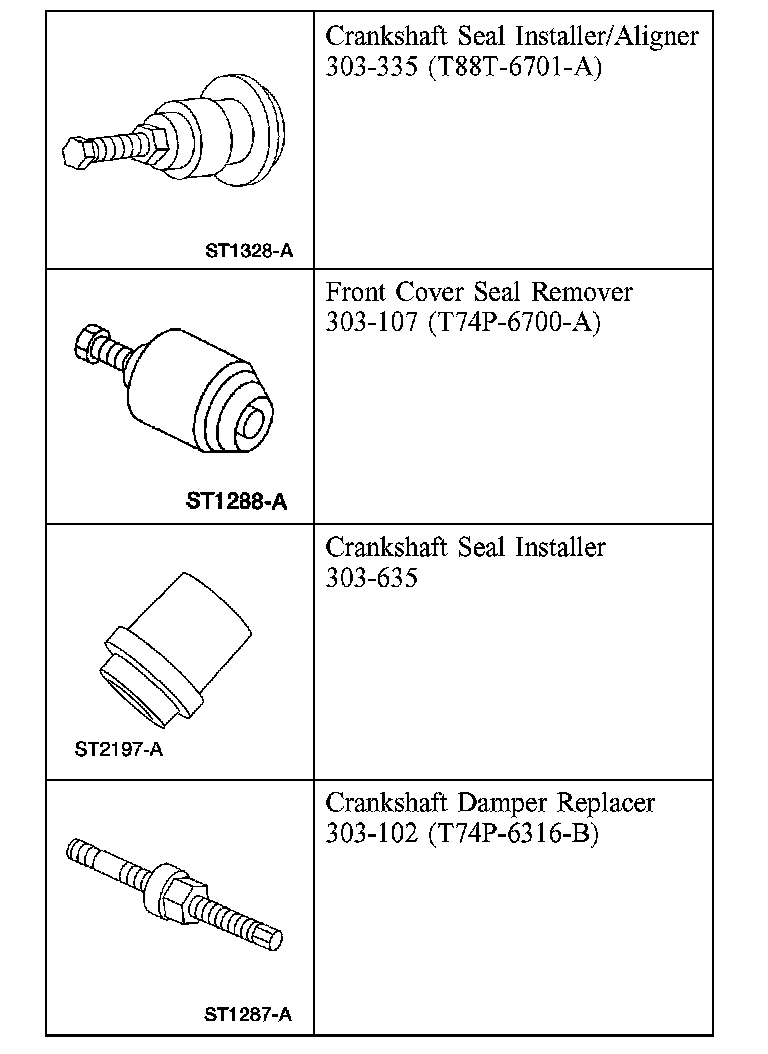

Special Tool(s)

Removal
1. Remove the crankshaft pulley.

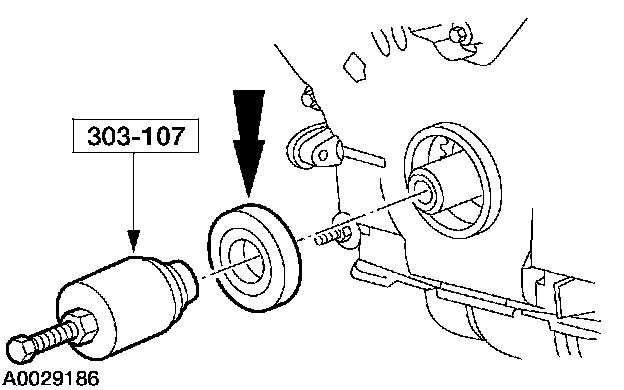

2. Using the special tool, remove the crankshaft front oil seal.

Installation

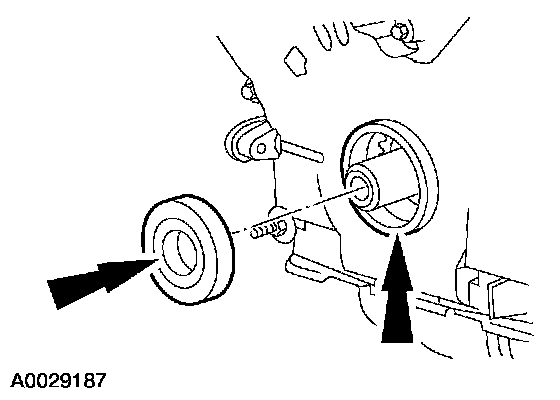

1. Lubricate the engine front cover and the crankshaft front oil seal inner lip with clean engine oil.

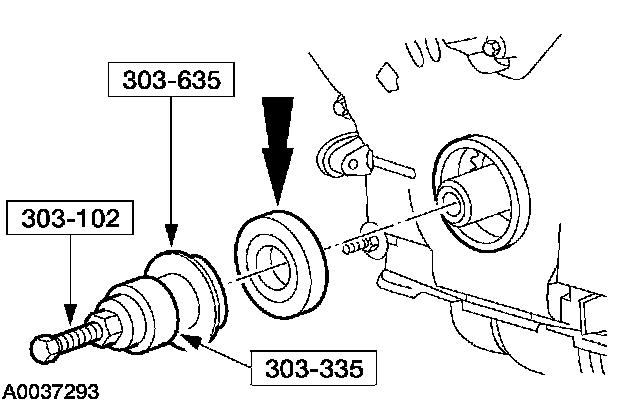

2. Using the special tools, install the crankshaft front oil seal into the engine front cover.
3. Install the crankshaft pulley.
