Cylinder Heads

Cylinder Head

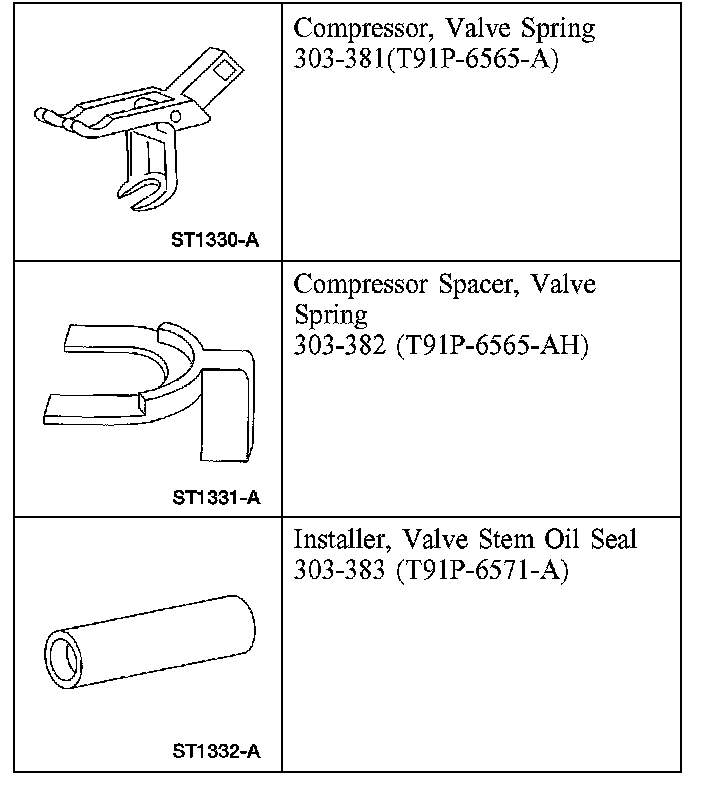

Special Tool(s)

Disassembly

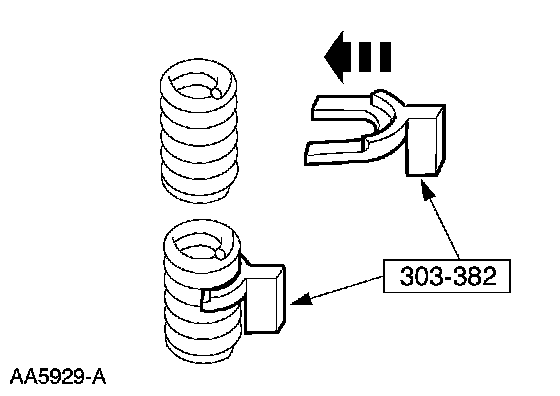

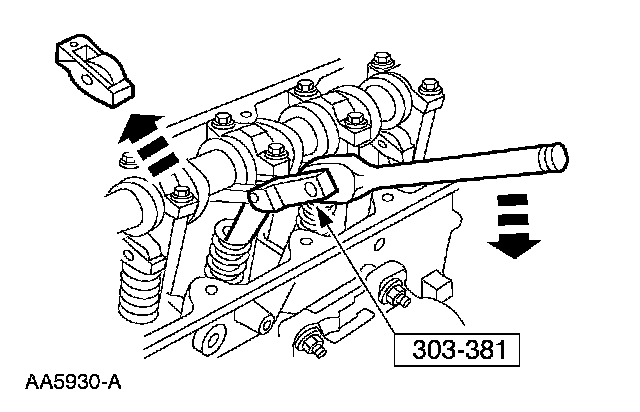

1. Install the special tool.





2. Using the special tool, remove the roller followers.

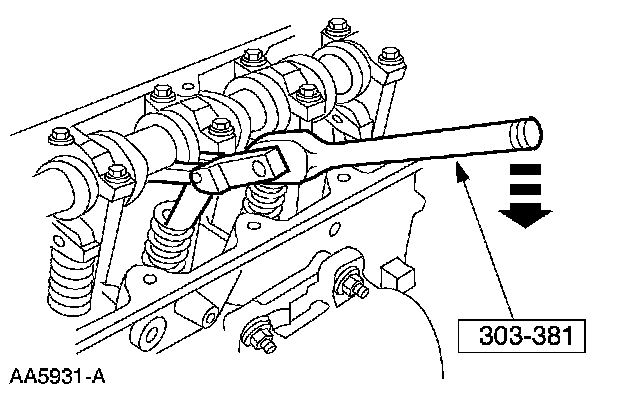

3. Using the special tool, compress the valve spring.





4. Remove the valves.

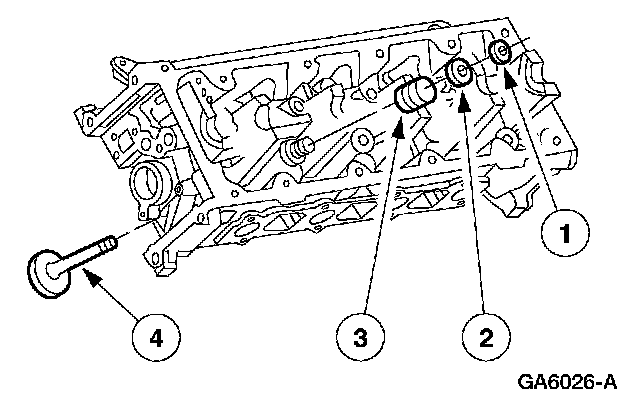

1. Remove the valve spring retainer keys.
2. Remove the valve spring retainers.
3. Remove the valve spring.

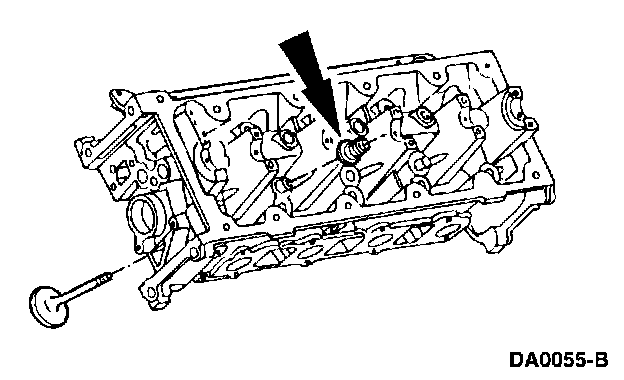

4. Remove the valves.

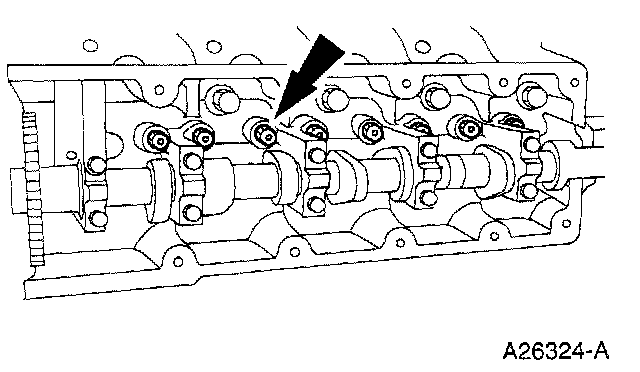

5. Remove the hydraulic lash adjusters.

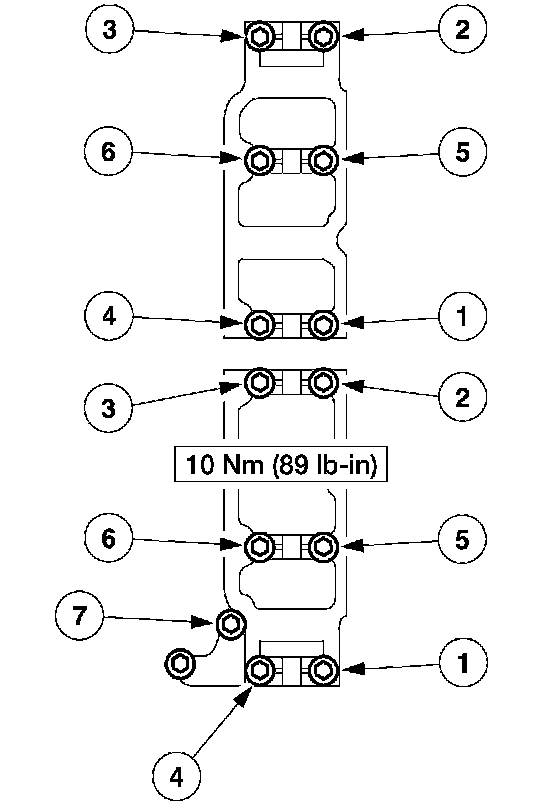

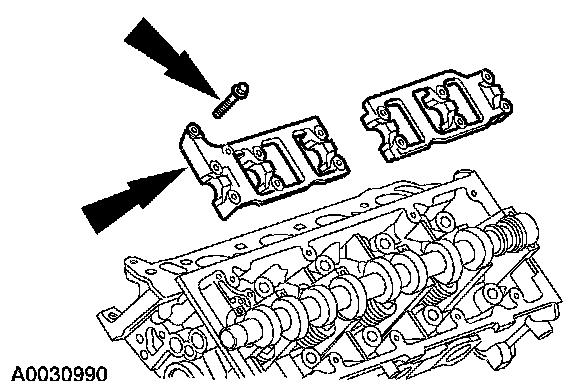

6. Remove the bolts and the camshaft bearing caps.

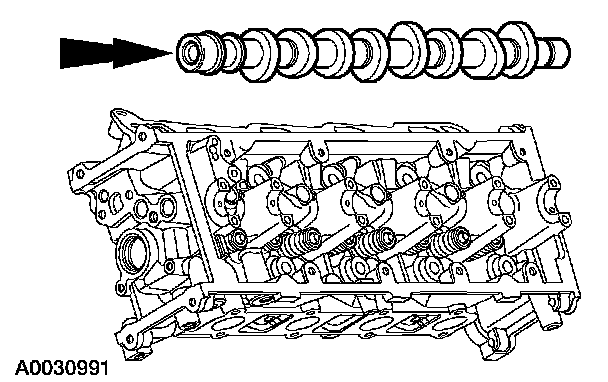

7. Remove the camshaft.





8. Remove the valve stem seals.

Assembly





1. NOTE: Lubricate all moving parts with clean engine oil prior to assembly.

To install, reverse the removal procedure.
