Exhaust Manifold RH

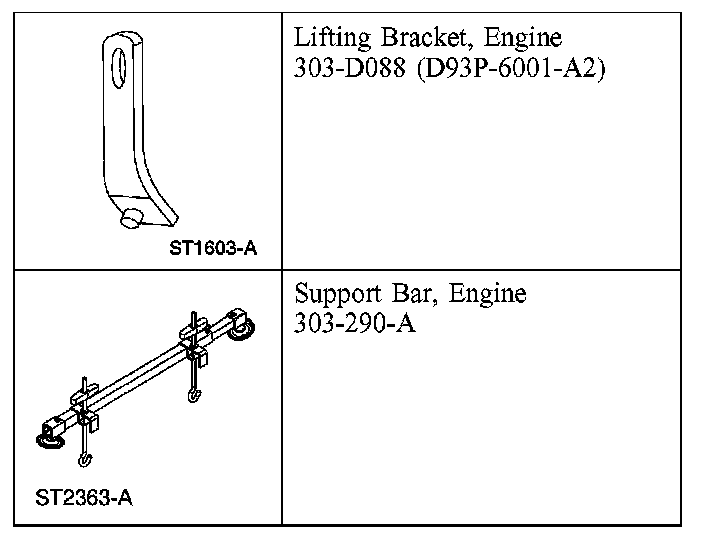

Special Tool(s)

Removal and Installation

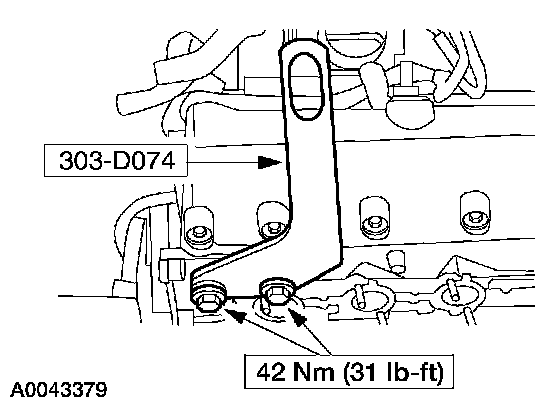

1. Install the special tool.

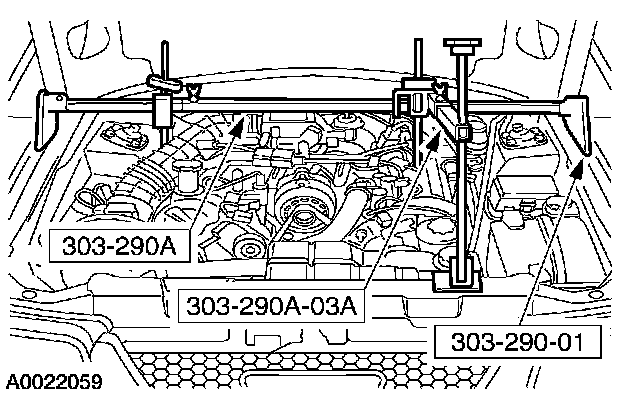

2. Install the special tools.
3. Raise and support the vehicle.

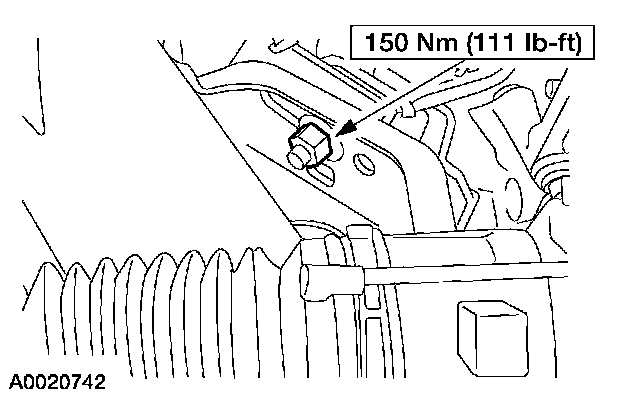

4. Remove the LH and RH side engine mount nuts.
5. Lower the vehicle.

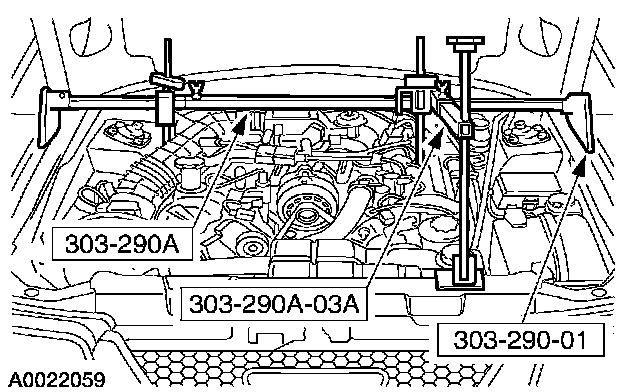

6. Using the special tools, raise the engine.
7. Remove the air cleaner outlet tube.

8. Raise and support the vehicle.
9. Remove the starter motor.
10. Separate the exhaust at the exhaust manifold.

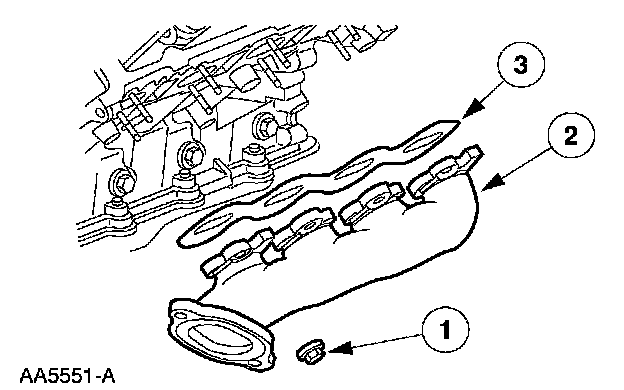

11. Remove the exhaust manifold.
1. Remove the exhaust manifold nuts.
2. Remove the exhaust manifold.
3. Remove the exhaust manifold gasket and discard.





12. NOTE: Tighten the exhaust manifold nuts in the sequence shown.

To install, reverse the removal procedure.
