FUEL CHARGING AND CONTROLS

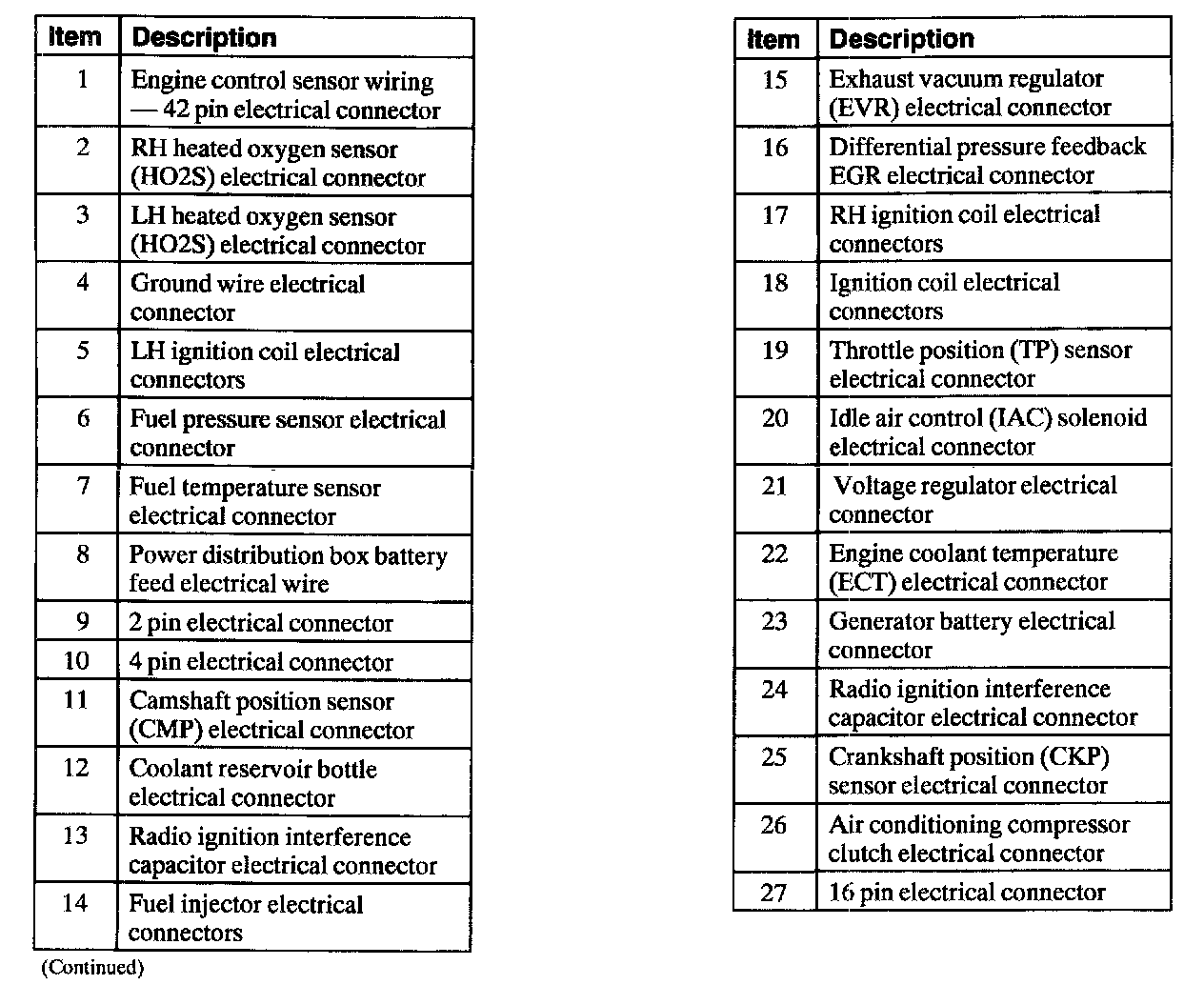

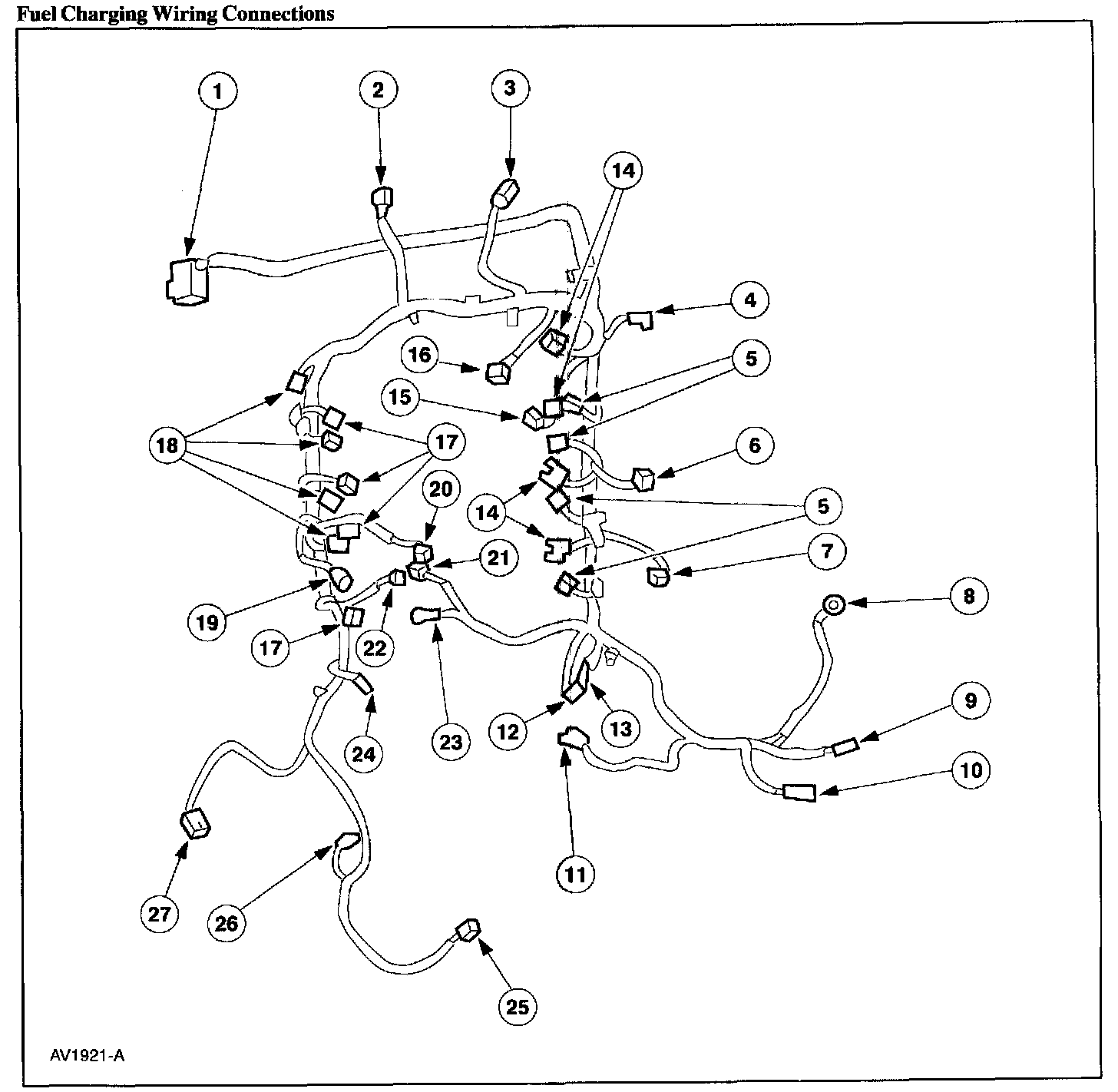

Fuel Charging Wiring Connections, Part 1:

Fuel Charging Wiring Connections, Part 2:

The fuel injection supply manifold:
- delivers fuel to the fuel injector.
- receives fuel from the fuel supply line.

The throttle body:
- controls air supply to the upper intake manifold by positioning the throttle plate.
- connects the accelerator cable and the speed control actuator cable (if equipped) to the throttle lever.
- is not adjustable.
- cannot be cleaned.

The fuel injector:
- is electrically operated by the powertrain control module (PCM).
- has an internal solenoid that opens a needle valve to inject fuel into the lower intake manifold.
- atomizes the fuel as the fuel is delivered.
- is deposit-resistant. Do not clean.

The fuel pressure relief valve:
- is used to inspect and relieve fuel pressure.
