Air Intake Scoop

AIR INTAKE SCOOP

REMOVAL

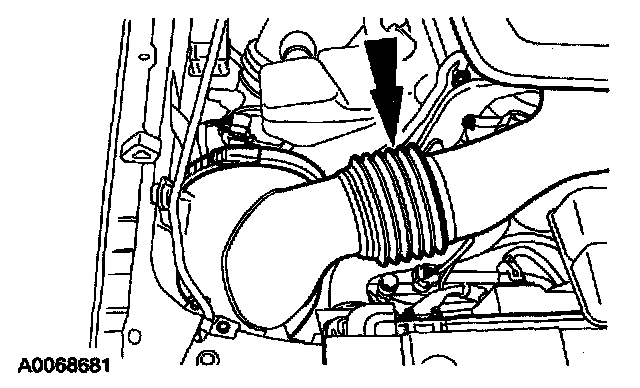

1. Disconnect the air intake scoop outlet from the air cleaner.

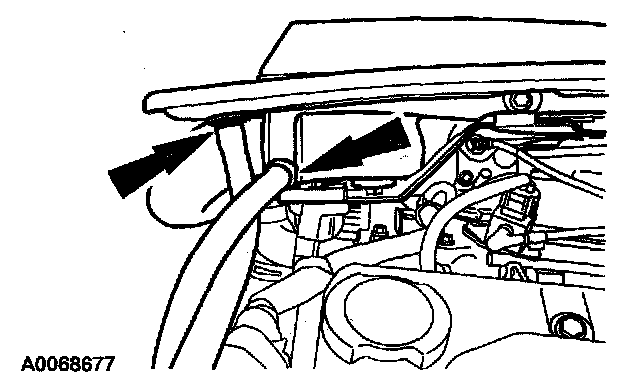

2. Disconnect the air intake scoop water drain hoses.







3. Remove the air intake scoop from the air intake scoop bracket.

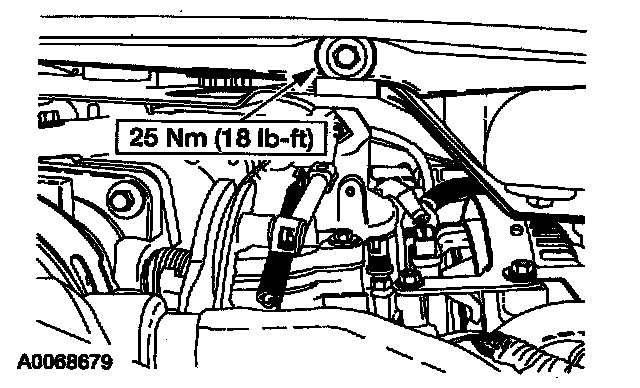

- Remove the two air intake scoop bolts.
- Lift the air intake scoop from the air intake bracket studs.

INSTALLATION
1. To install, reverse the removal procedure.
