Test D

PINPOINT TEST D: ELECTRICAL PRESSURE CONTROL (EPC) SOLENOID

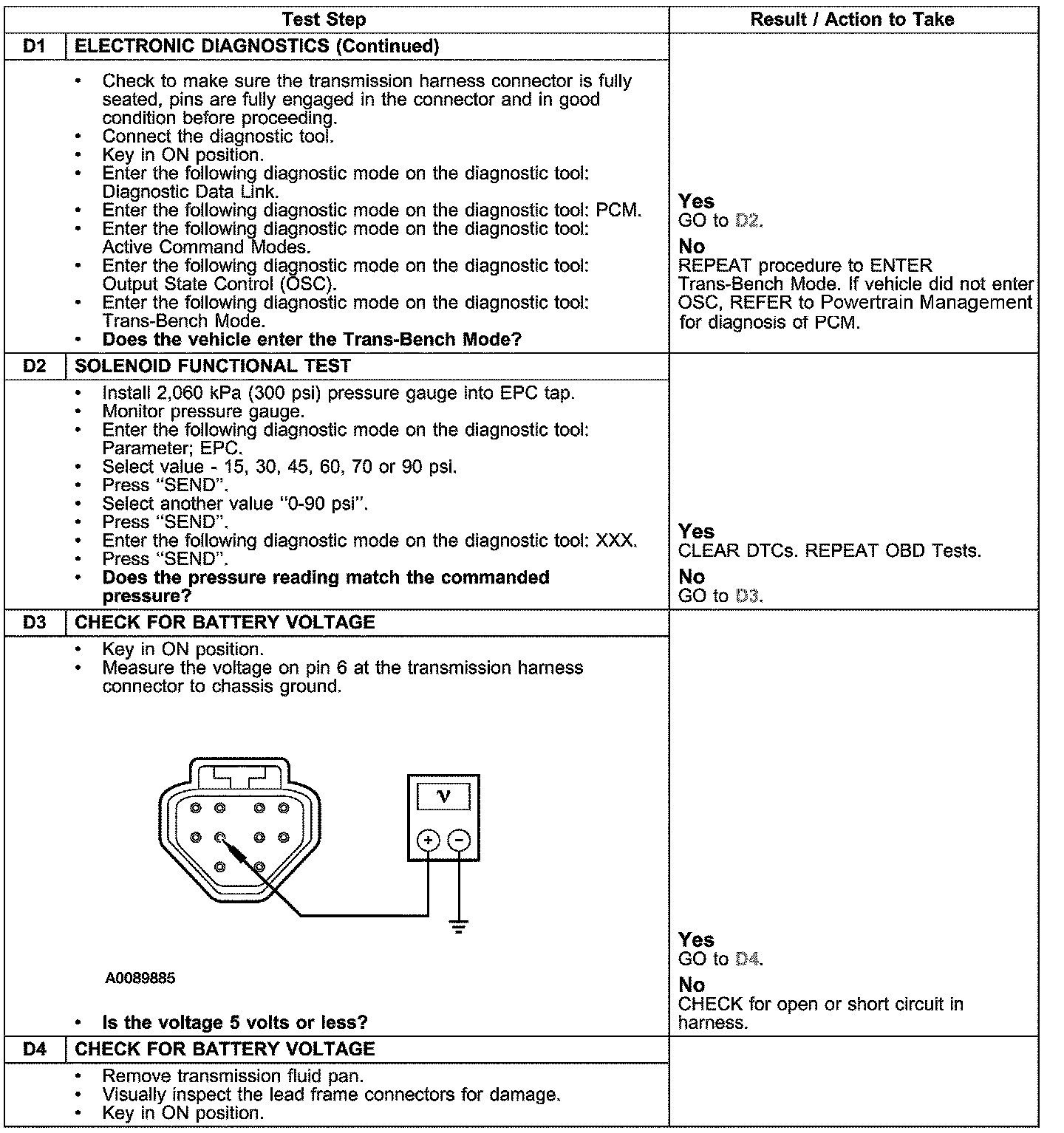

Step D1:

Steps D1 - D4:

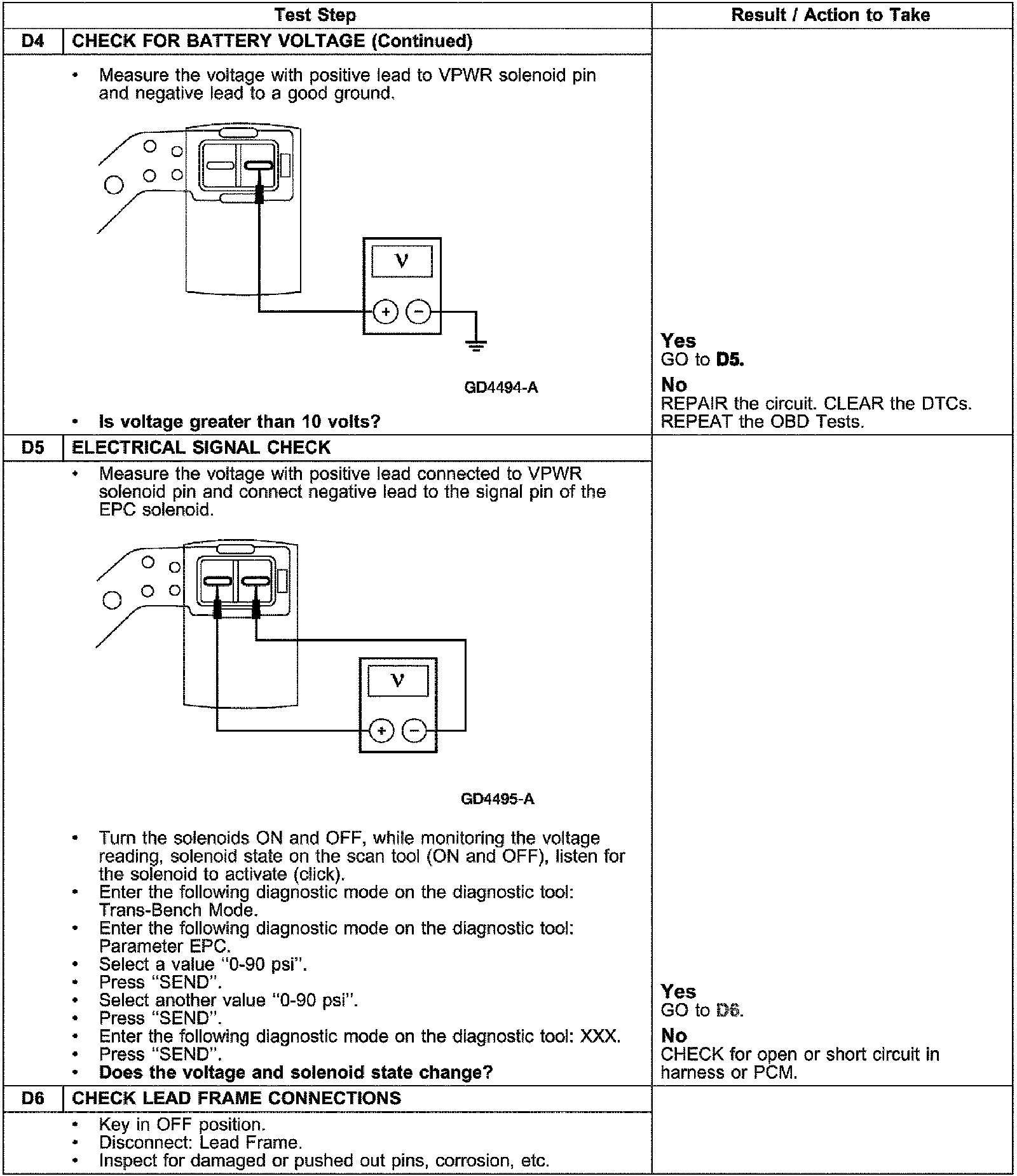

Steps D4 - D6:

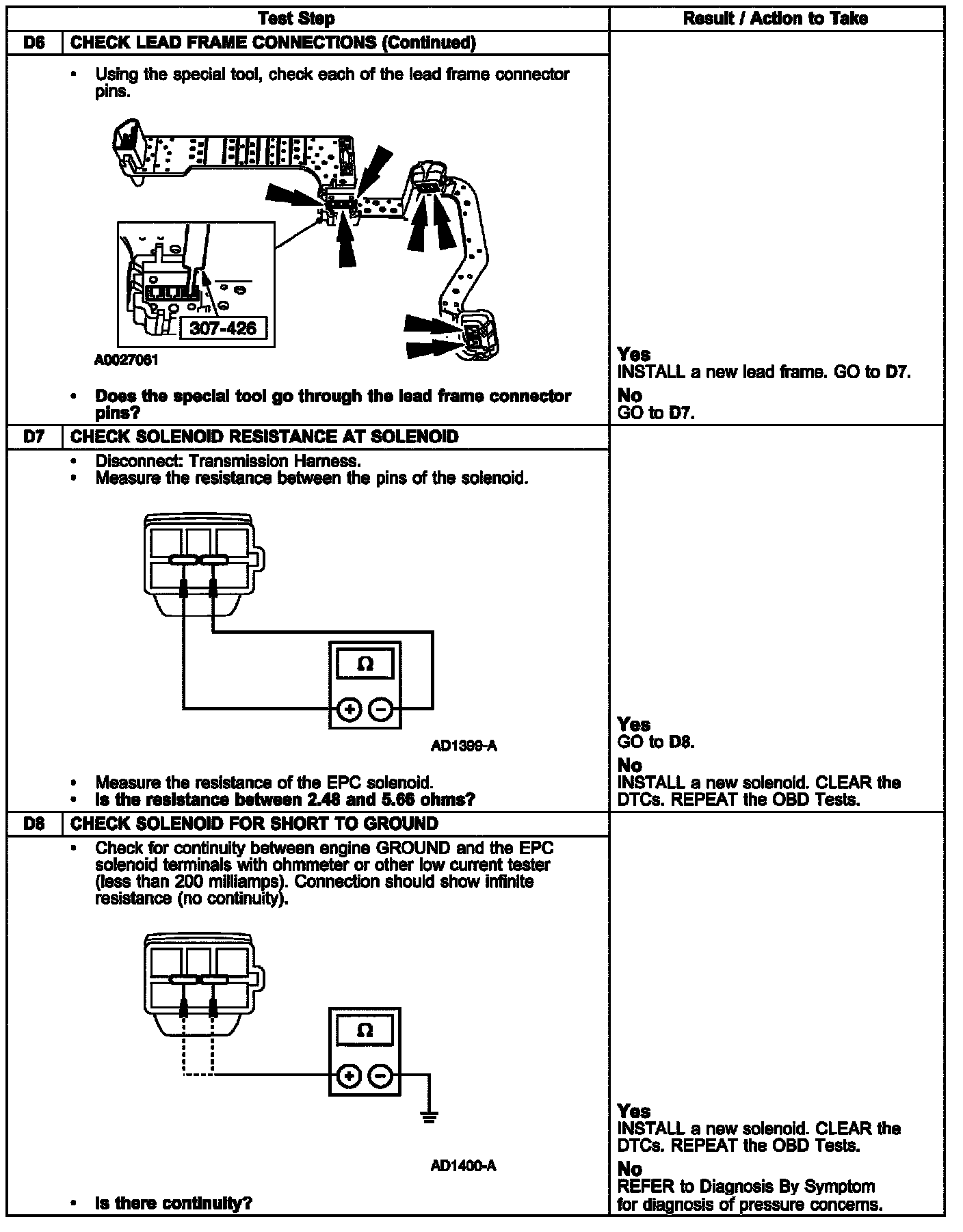

Steps D6 - D8:

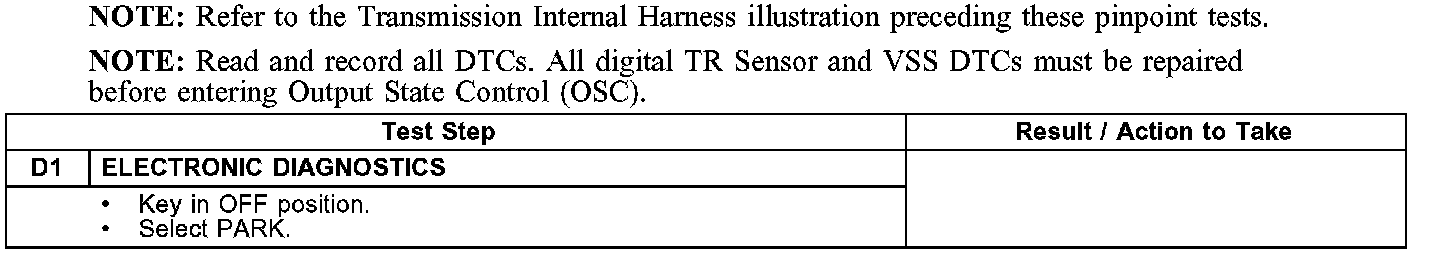

NOTE: Refer to the Transmission Internal Harness illustration. Transmission Connector Layouts

NOTE: Read and record all DTCs. All digital TR Sensor and VSS DTCs must be repaired before entering Output State Control (OSC).
