Flex Plate: Service and Repair
FlexplateRemoval and Installation
1. Remove the transmission.

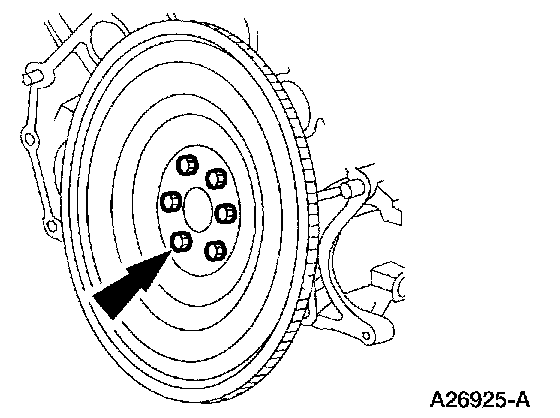

2. Remove the six bolts retaining the flexplate to crankshaft, and remove the flexplate.
3. To install, reverse the removal procedure.

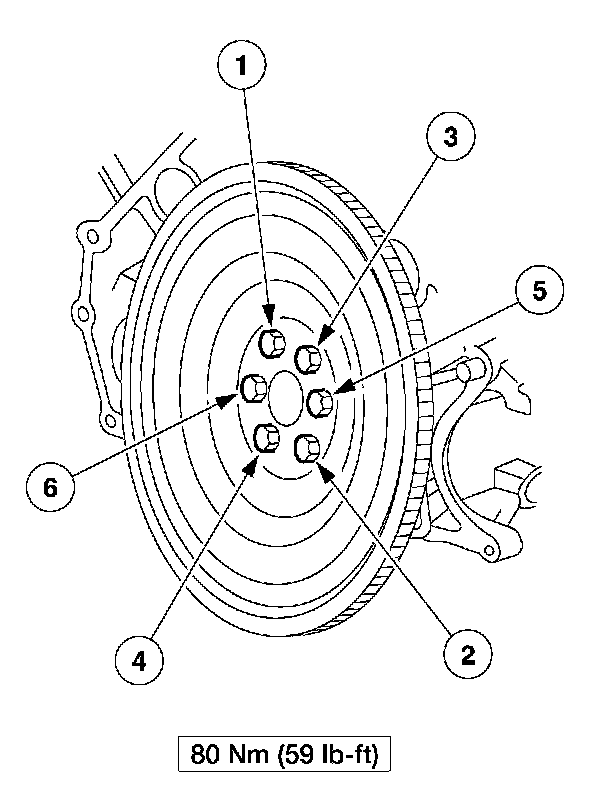

^ Tighten the bolts in the sequence shown
