Rocker Arm Assembly: Service and Repair

Camshaft Roller Follower

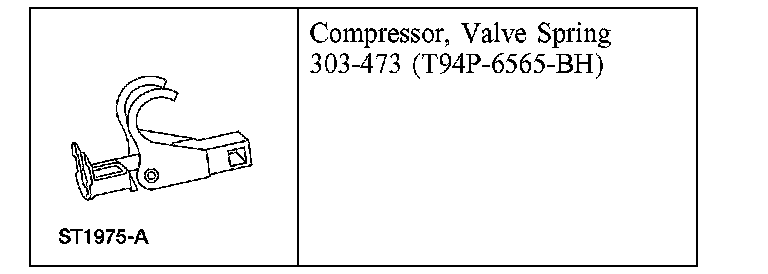

Special Tool(s)

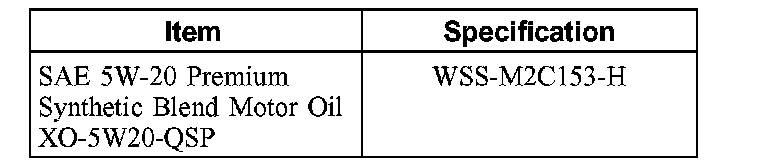

Material

Removal and Installation
1. Remove the LH and RH valve covers.





2. NOTE: LH shown, RH similar.

Remove the LH and RH spark plugs.
3. Remover the RH front wheel.

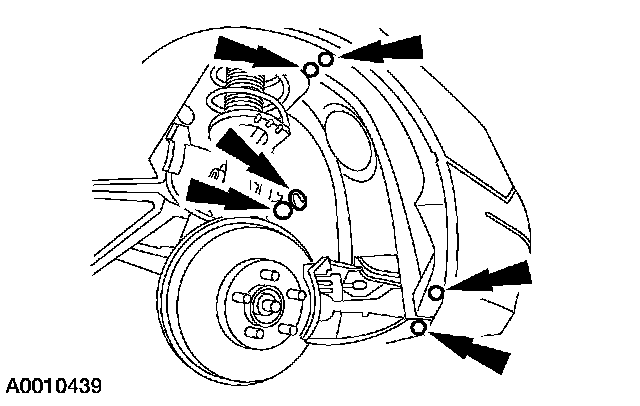

4. Remove the screws, the pin-type retainers, and the RH front inner fender splash shield.

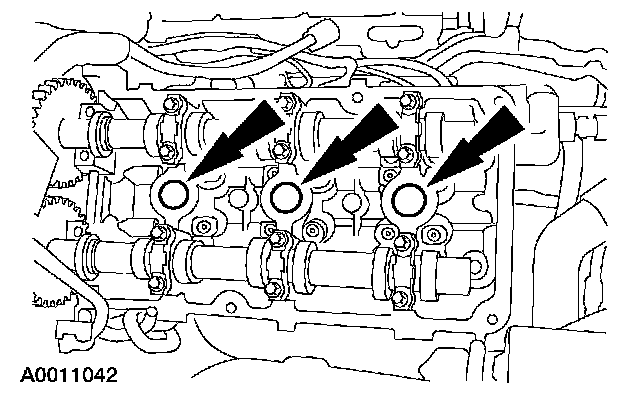

5. Rotate the crankshaft until the camshaft lobe is pointing directly away from the follower.

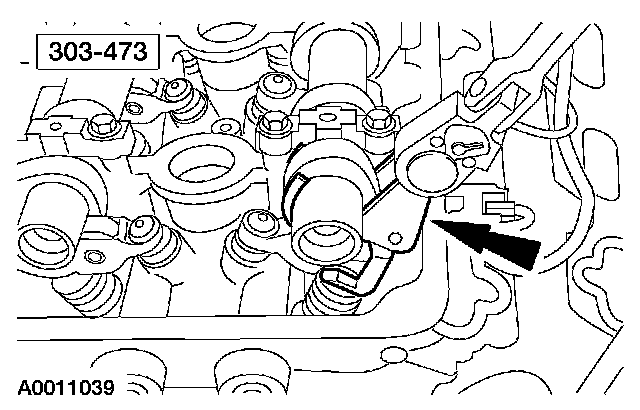

6. Using the special tool, remove the follower.
7. To install, reverse the removal procedure.
- Lubricate the camshaft followers with clean engine oil.
