Accessory Drive Belt Tensioner Water Pump

Accessory Drive Belt Tensioner Water Pump

Removal and Installation





1. NOTE: If equipped with belt tensioner.

Remove the water pump belt.

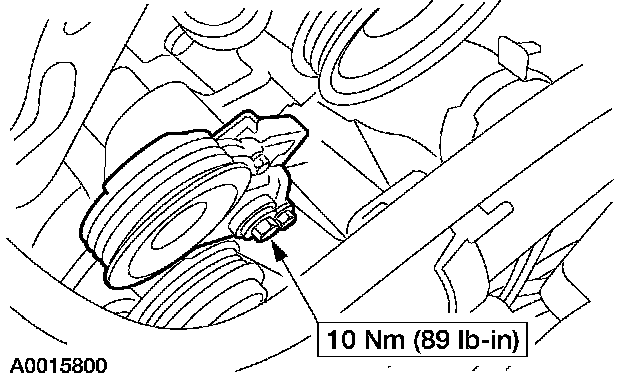

2. Remove the bolt and the belt tensioner.
3. To install, reverse the removal procedure.
