Camshaft Lobe Lift

Camshaft Lobe Lift

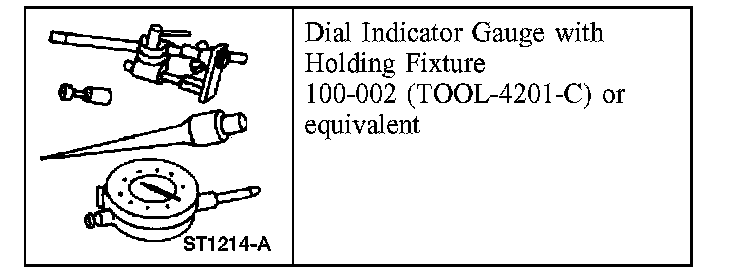

Special Tool(s)

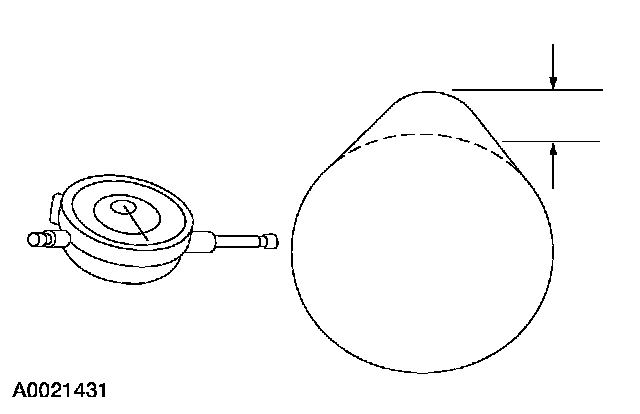

1. Use a Dial Indicator Gauge with Holding Fixture to measure camshaft intake/exhaust lobe lift.
- Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading to figure the camshaft lobe lift.
